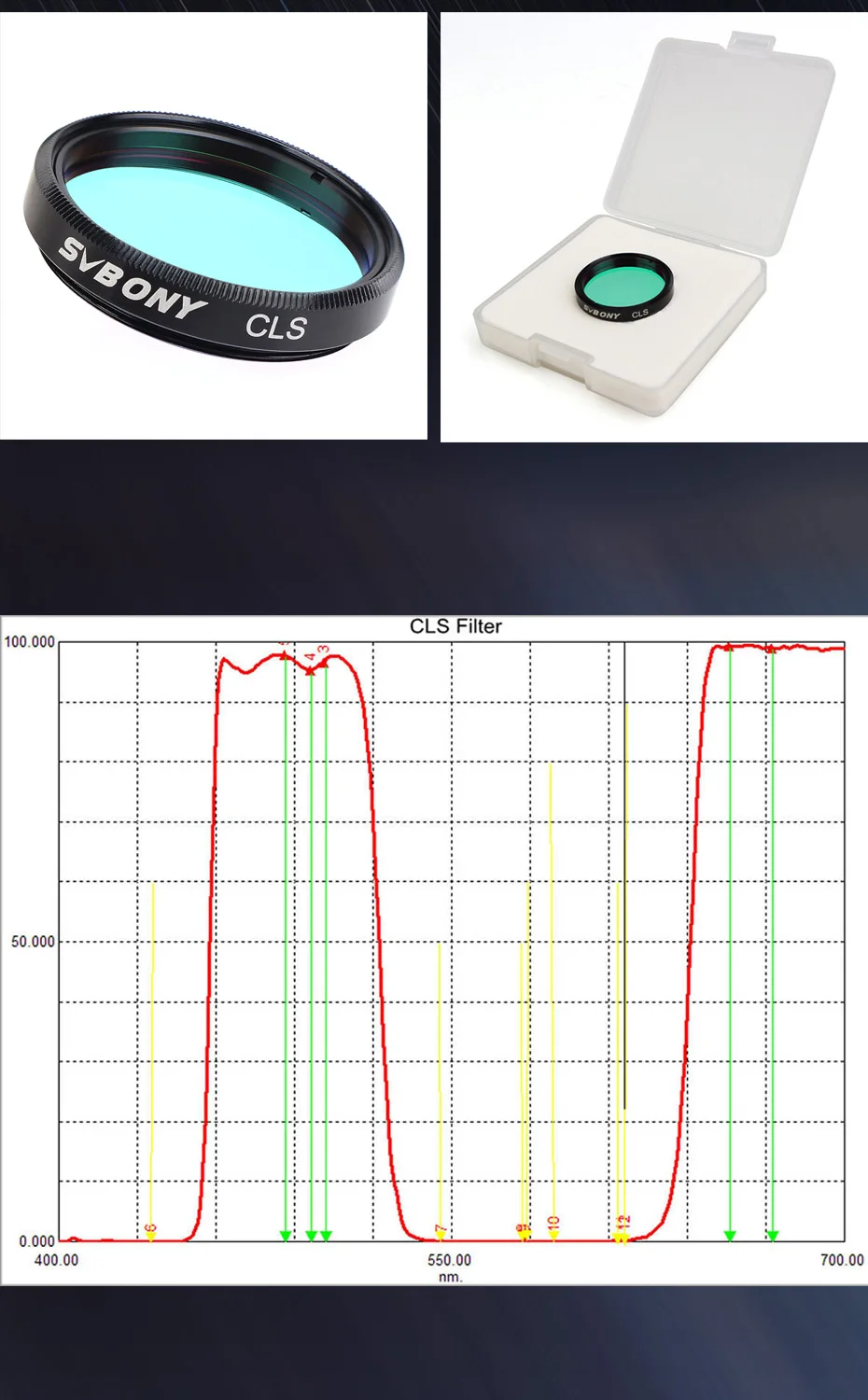

CLS Light Pollution Filters:

The CLS (City Light Suppression) broadband filter is designed to improve the visibility of various deepsky objects. By selectively reducing the transmission of wavelengths of light pollutants, specifically those produced by artificial lightings including mercury vapor lamps, both high & low pressure sodium vapor lights and the unwanted natural light caused by neutral oxygen emission in our atmosphere.

Main Use and Performance

Suitable for color CCD cameras and unmodified DSLRs
Light pollution filter do not eliminate the effects of light pollution or increase the object’s brightness. In many cases, they increase the contrast between nebula and night sky, not brightening the nebula.

Note:

Suitable for use in places with relatively light light damage
The filter selectively filters out harmful light from the city and transmits the emission lines of the nebula, increasing contrast instead of brightness.

Moon&Skyglow Filter (Moon Filter):

MoonFilter is mainly used for visual observation and photography of planets. It can effectively restrain the interference of sky glow (589nm), improve the contrast of planets, and see and photograph more details.

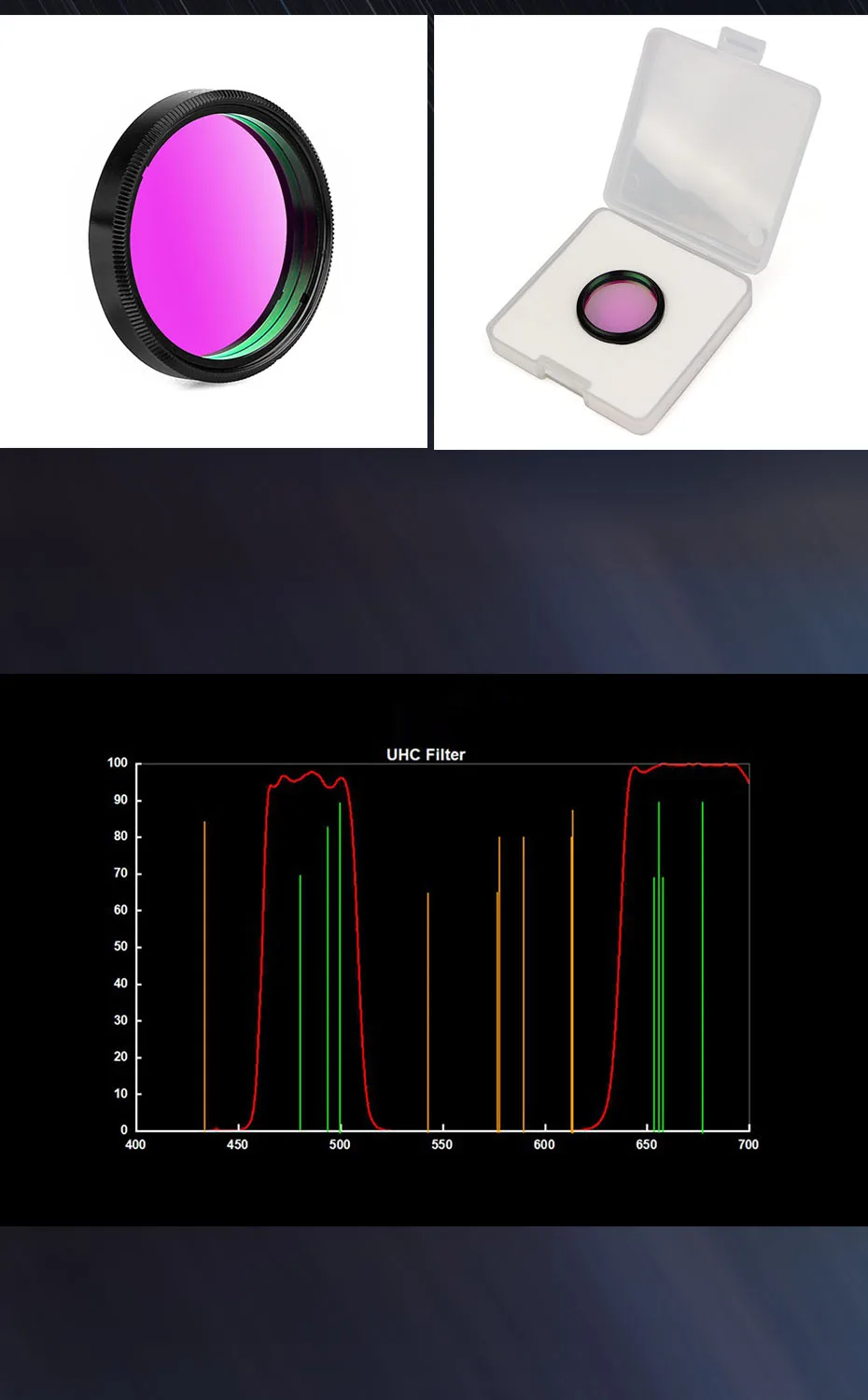

UHC Light Pollution Filter:

The UHC (Ultra High Contrast) broadband filter is designed to improve the visibility of various deepsky objects. By selectively reducing the transmission of wavelengths of light pollutants, specifically those produced by artificial lightings including mercury vapor lamps, both high & low pressure sodium vapor lights and the unwanted natural light caused by neutral oxygen emission in our atmosphere.

Main Use and Performance:

Suitable for color CCD cameras and unmodified DSLRs
It is more suitable for urban environment where you suffer from severe light pollution.
UHC has a substantial red passband and offer superb views for objects like the Orion Nebula (M42)
Light pollution filter do not eliminate the effects of light pollution or increase the object’s brightness. In many cases, they increase the contrast between nebula and night sky, not brightening the nebula.

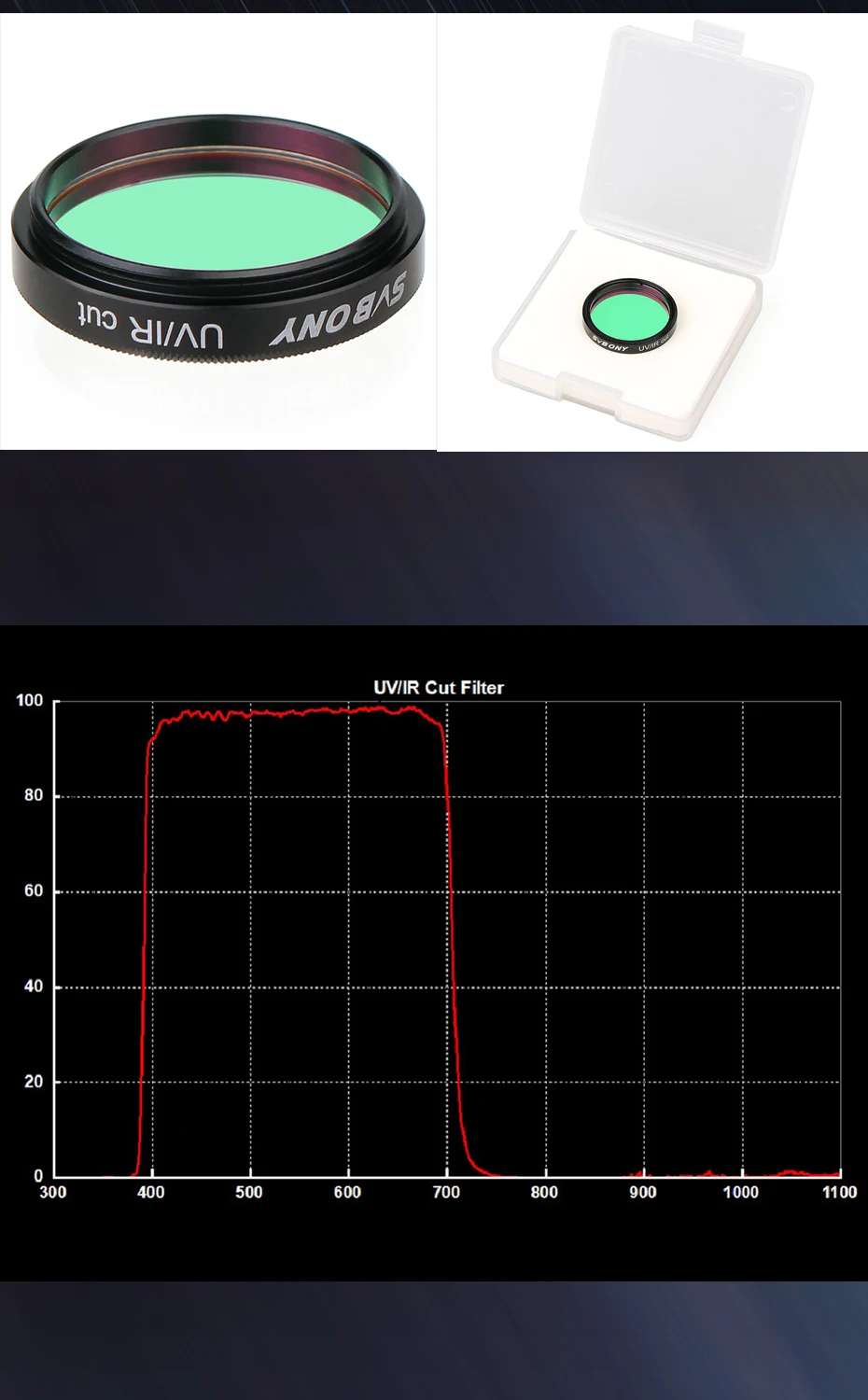

UV/IR CUT Features:

UV/IR Cut filter belongs to infrared and ultraviolet cut filter, which is suitable for use in astrophotography. It can effectively prevent the interference of infrared rays and ultraviolet rays and play a role in focusing and dust protection. UV-IR filter is applied to photo processing technology of all digital cameras, CCD cameras and webcams. Unrivaled high transmittance optical band (420 nm-680 nm), including h-alpha (656 nm), s-ii (672 nm) and nilights. Effectively interferes with infrared and ultraviolet rays. It can concentrate light and protect against dust.

Main Use and Performance:

1. It is suitable for use with DSLR and CCD, and can effectively suppress the interference of ultraviolet and infrared.
2. Used in astrophotography with monochrome CCD
3,.for DSLR refitting for astrophotography

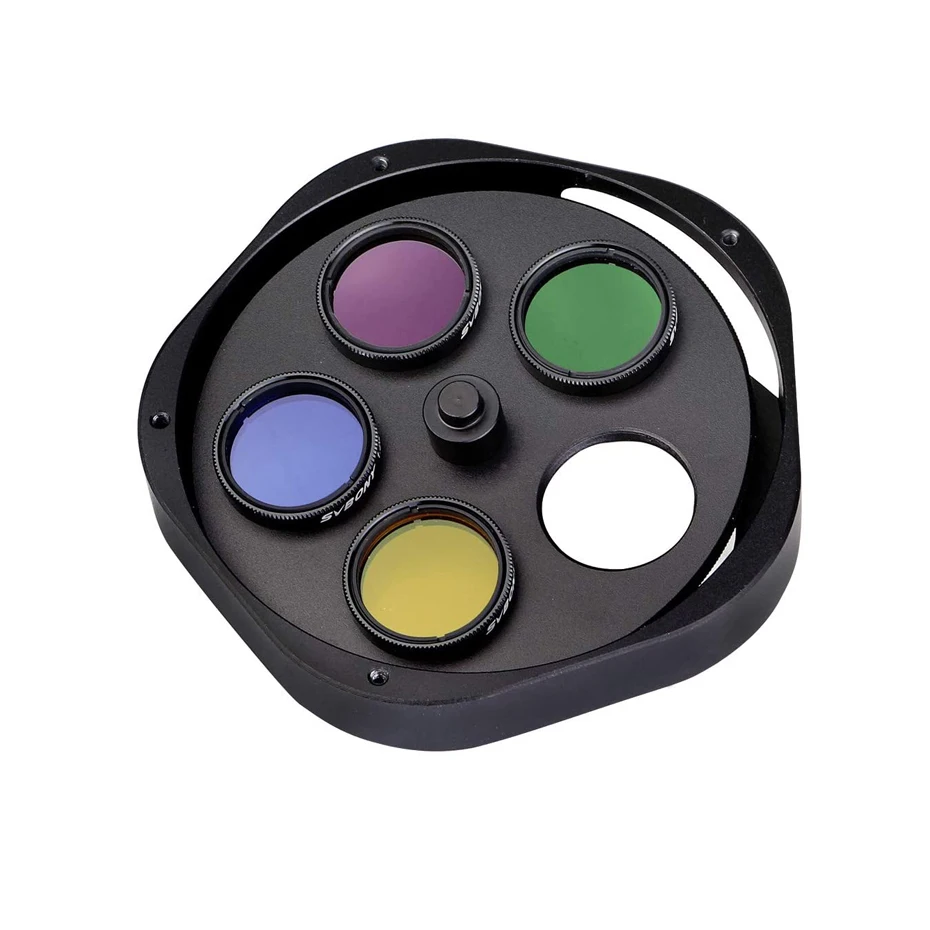

SV133 1.25 Filter Wheel

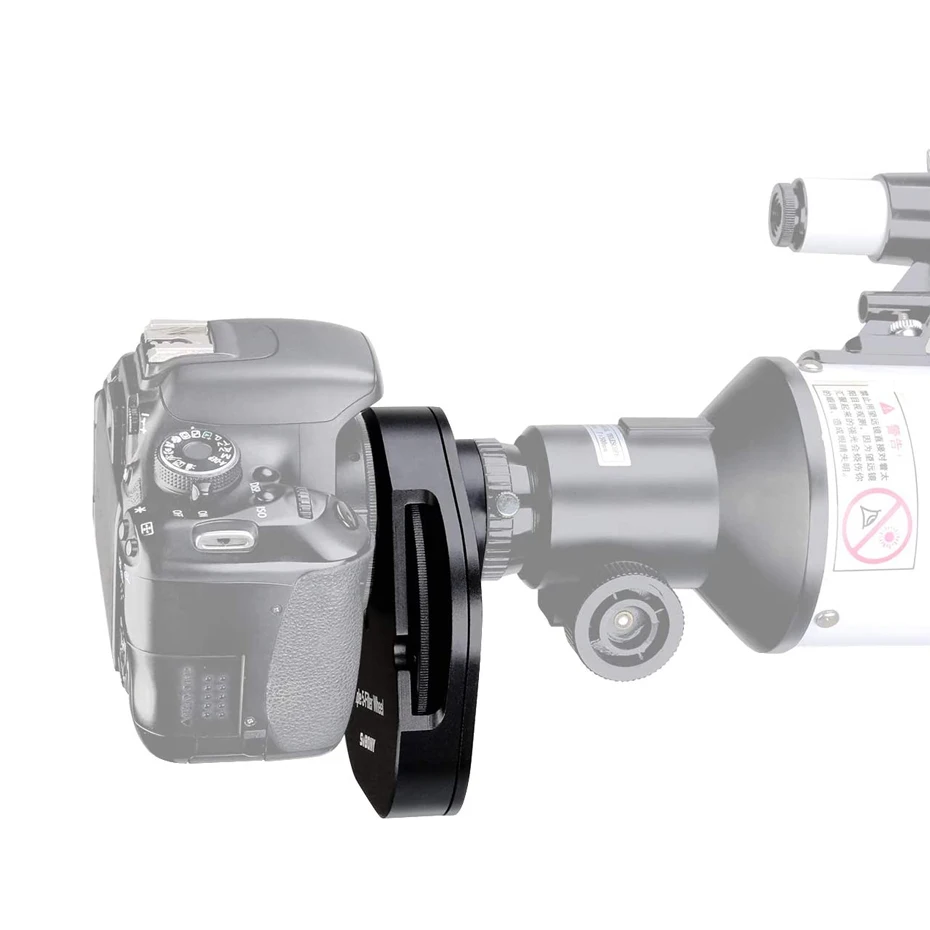

SVBONY SV133 is ideally suitable for visual observations with 1.25" eyepieces. And with the included T2 adapter it is also perfectly suitable for astrophotography with single lens reflex cameras and CCD cameras. The included T2 adapter comes with a locking ring, whereby high-precision distance regulation becomes possible. It’s very sturdy aluminum housing makes it also suitable for heavy cameras. The filters can be changed very quickly at any time, even with the camera mounted or with the eyepiece inserted.

1.High-quality telescope filter wheel allows you to quickly and easily change
2.The robustly constructed filter wheel is supplied with a 1.25" eyepiece adaptor, 1.25" focuser nosepiece, T-2 camera adaptor and locking ring and 42mm metal dust cap
3.M28.5X0.6 standard filter interface
4.The filter wheel can be attached to your focuser either by the supplied 1.25" nosepiece adaptor or via a T-thread
5.The Filter Wheel features a helpful number system that allows you to quickly place the filter of your choice into the light path.
6.Type: Manual
7.Color: Black
8.Net Weight: 351.5g / 12.4oz
9.Pls note: this item only for 1.25" five position filter wheel, the camera the filters and eyepiece just for demo, thank you!

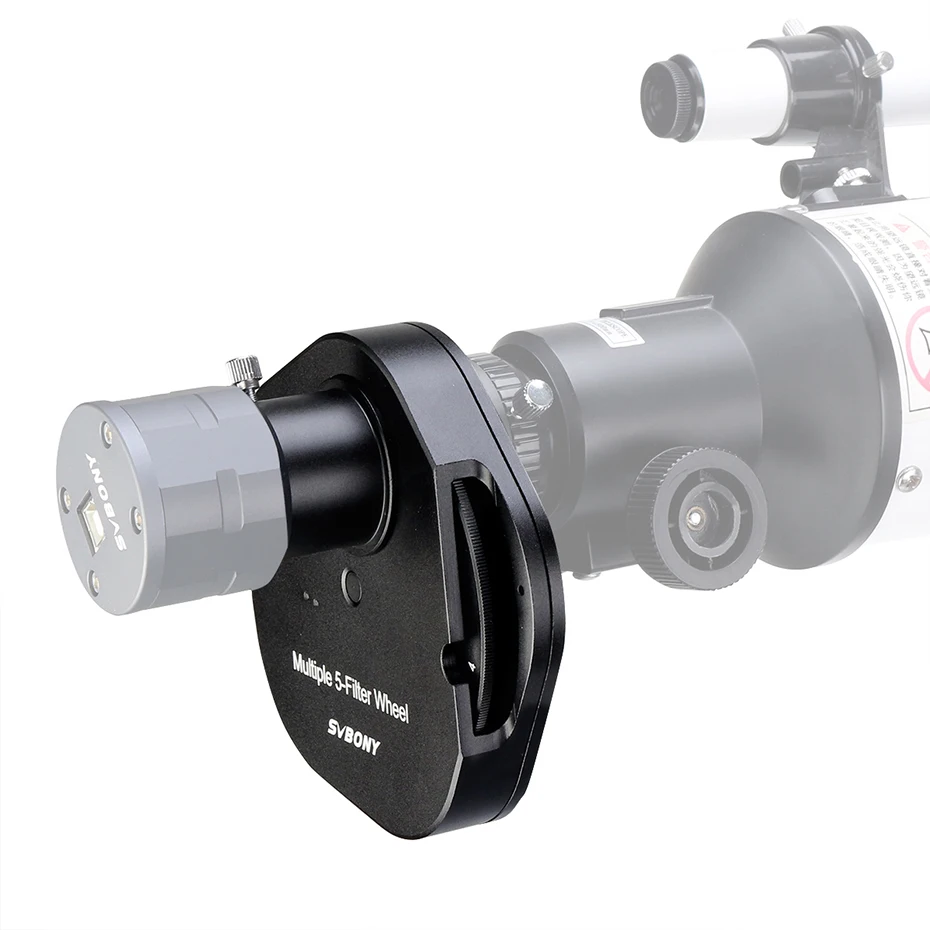

SV133 2 inch Filter Wheel

SVBONY SV133 is ideally suitable for visual observations with 2" eyepieces. And with the included adapter it is also perfectly suitable for astrophotography with single lens reflex cameras and CCD cameras (M48 to M42 adapter exclude). The included adapter comes with a locking ring, whereby high-precision distance regulation becomes possible. It’s very sturdy aluminum housing makes it also suitable for heavy cameras. The filters can be changed very quickly at any time, even with the camera mounted or with the eyepiece inserted.

1.High-quality telescope filter wheel allows you to quickly and easily change
2.The robustly constructed filter wheel is supplied with a 2" eyepiece adaptor, 2" focuser nosepiece, 2" Conversion Interface, M48 Camera Adapter and Rotation Lock Ring
3.The filter wheel can be attached to your focuser either by the supplied 2" nosepiece adaptor
4.The Filter Wheel features a helpful number system that allows you to quickly place the filter of your choice into the light path
5.Available for Imaging devices: 2" Eyepiece, Attaching a digital imager, CMOS Electronic Digital Eyepiece and Camera
6.( this process requires an additional interface M48 (Female) to M42（Male ）Thread Telescope Adapter)
7.Type: Manual
8.Color: Black
9.Net Weight: 469.3g / 16.55oz
10.Pls Note:
11.This item only for 2" five position filter wheel, the filters and eyepiece just for demo

How to use it?

Package Details:

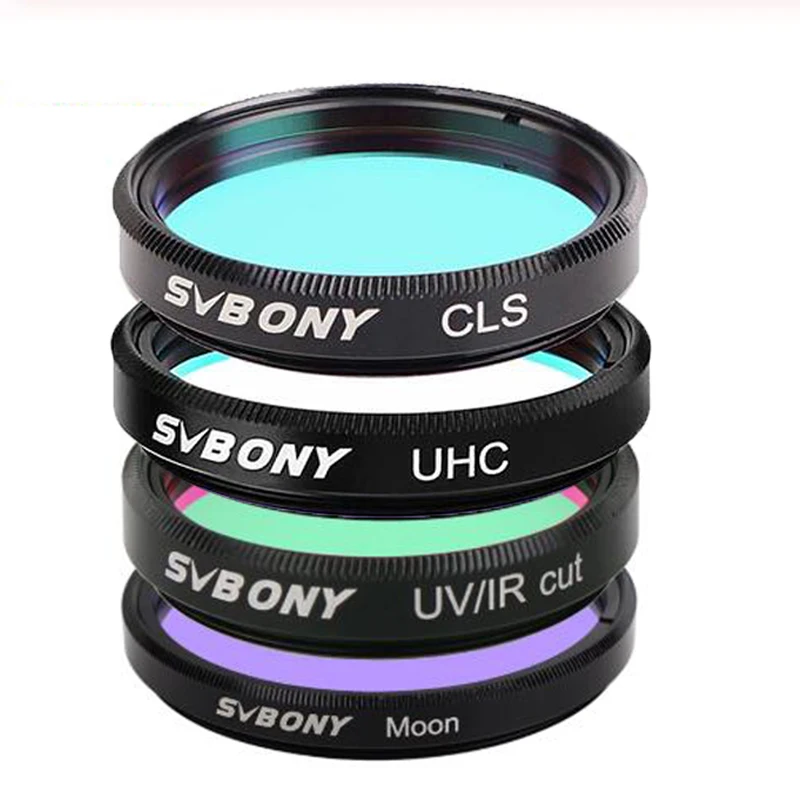

Package 1:1* CLS 1.25'' Filter+1* UHC 1.25'' Filter +1* Moon 1.25'' Filter +1* UV/IR CUT 1.25'' Filter
Package 2:
1* 1.25'' Filter Wheel
Package 3：1* CLS 2'' Filter+1* UHC 2'' Filter +1* Moon 2'' Filter +1* UV/IR CUT 2'' Filter
Package 4:
1* 2'' Filter Wheel
Package 5:
1* CLS 1.25'' Filter
1* UHC 1.25'' Filter
1* Moon 1.25'' Filter
1* UV/IR CUT 1.25'' Filter
1*1.25'' Filter Wheel
Package 6:
1* CLS 2'' Filter
1* UHC 2'' Filter
1* Moon 2'' Filter
1* UV/IR CUT 2'' Filter
1*2'' Filter Wheel
