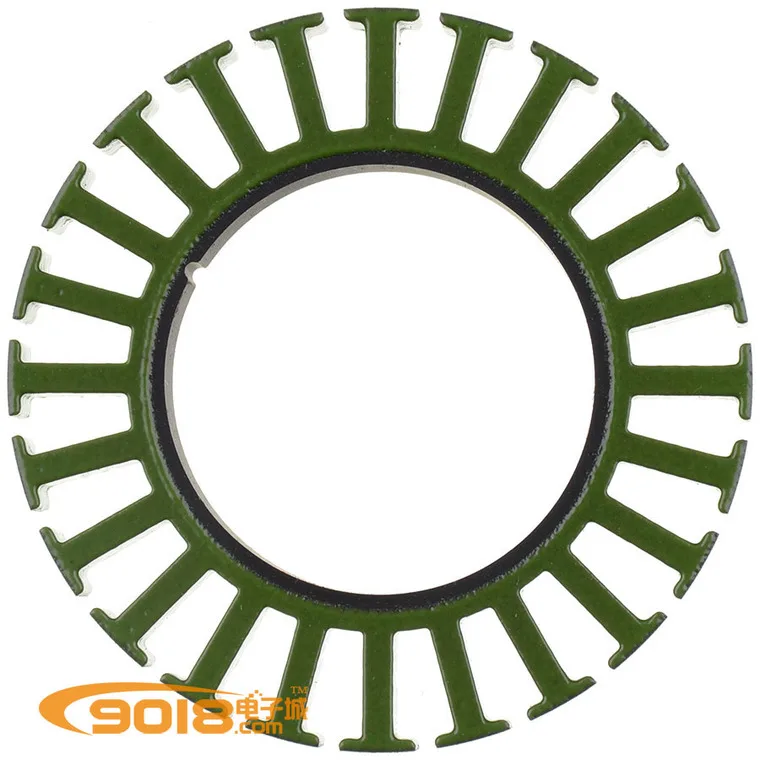

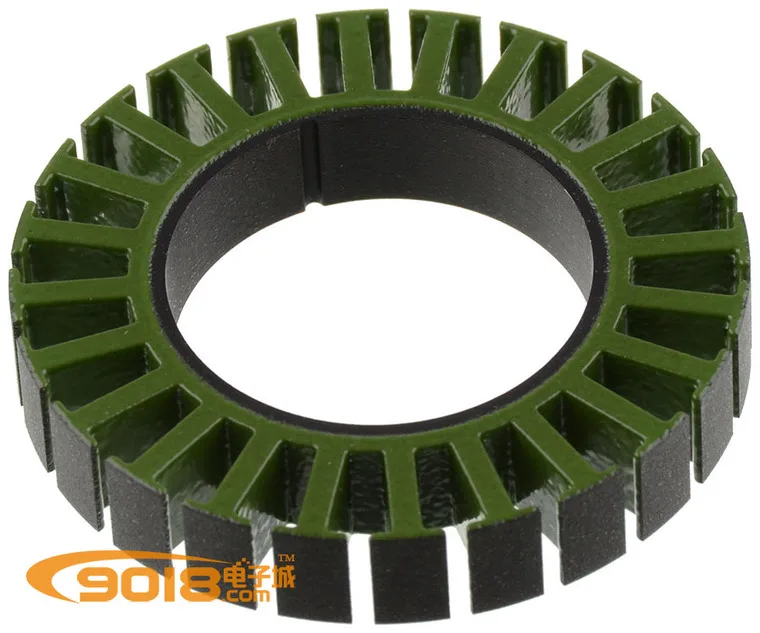

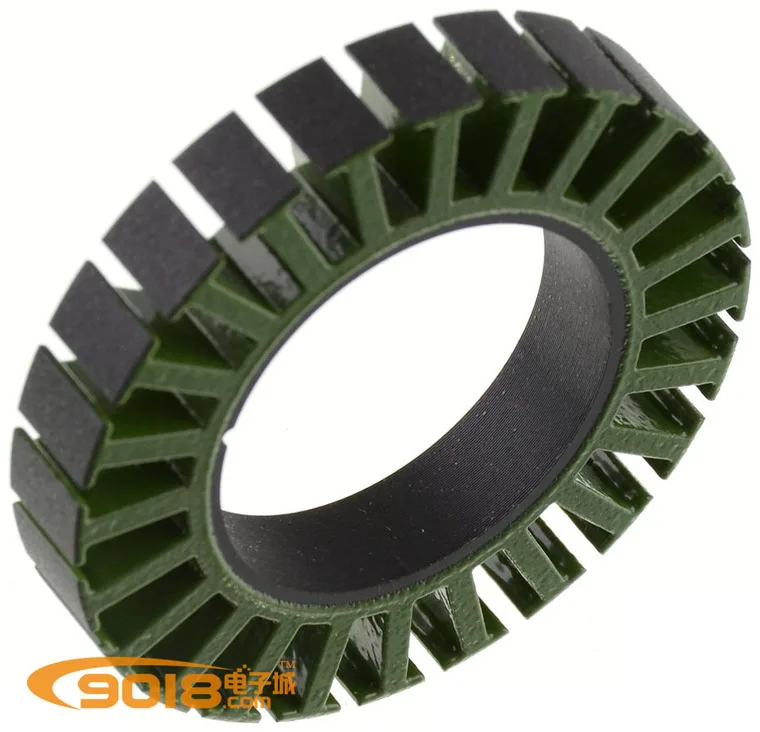

Product Name: 6110 outer rotor motor stator core
Product material: imported silicon steel sheet
Slot structure: 24N22P, 24N26P, 24N28P, 24N32P, etc.
Dimensions: diameter 61.5mm* inner diameter 35.5mm* thickness 10mm
Surface treatment: insulation coating + rust-proof lacquer
Product net weight: 75g
Applicable scene: plant protection drone, overhead aircraft, aerial aircraft, pan-tilt motor, DC brushless motor, disk generator, etc.
This product adopts imported high-performance silicon steel sheet and high-speed CNC punching and stamping. It has the advantages of low eddy current loss and high saturation magnetic flux density. Multi-groove multi-pole structure and fractional slot winding make excellent motor performance and light weight. The cogging effect is small and the torque is large. This product is painted on the surface, waterproof, rust-proof and corrosion-resistant. It can significantly improve the life of the motor under the harsh and humid environment. It can produce multi-axis and large load-bearing unmanned spray aircraft, and cooperate with high-performance magnetic steel + carbon fiber propeller (21~23). Inch), the maximum pulling force can exceed 5KG (such as the Dongjian E2000 multi-rotor power system M6 (6010) motor).

This product is the core component of the motor. No other information is provided except the above product description. Please do not consult. Thank you!

-----------------------------------------------------------------------------------------------

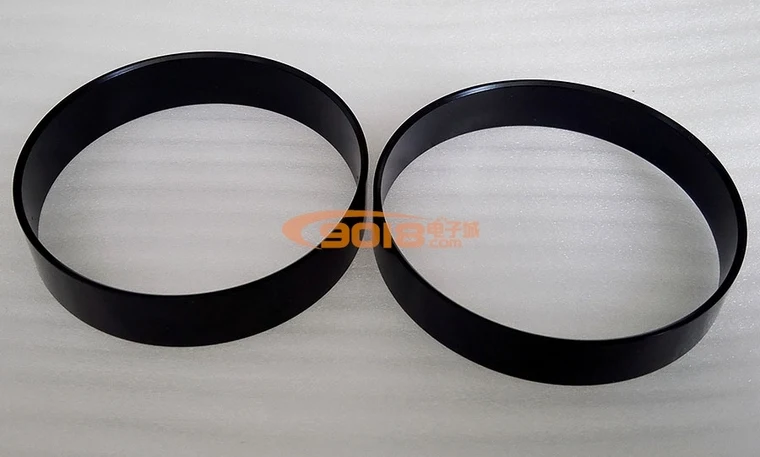

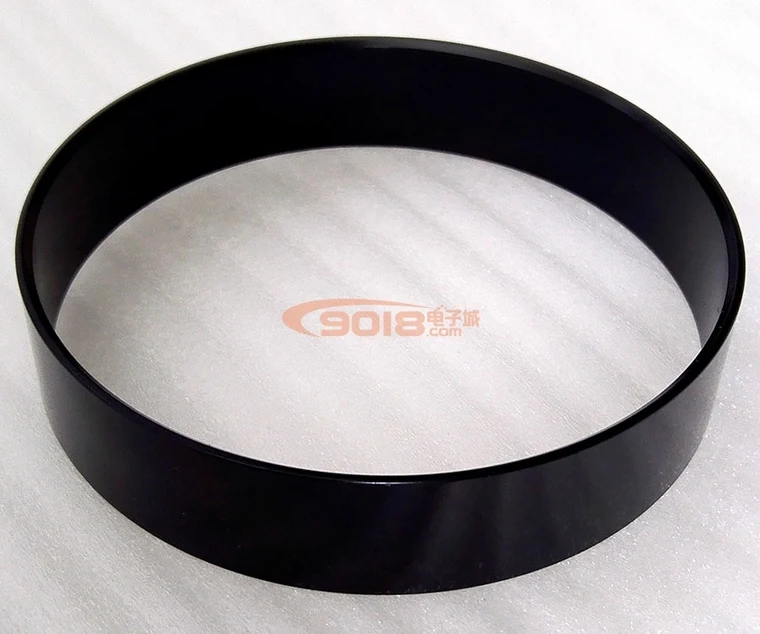

Product Name: 6110 motor outer rotor yoke steel sleeve
Product material: low carbon steel
Adapted stator: outer diameter 61.5mm* height 10mm
Adapted magnetic steel: length 10.5mm* width 6mm* thickness 3mm
Adaptation architecture: 24N22P, 24N26P, 24N28P, 24N32P, etc.
Dimensions: outer diameter 68.8mm * outer diameter 71.8mm * height 13mm
Surface technology: electroplating rust
Product net weight: 30g

This product is specially designed for the 6110 disc stator core. It is a yoke of one of the three core components of the motor (can function as a housing). It is recommended to use the high-performance magnetic steel of this station at the same time to form 24N26P or 24N28P. . Due to the processing technology and tolerances, please purchase the actual object and accurately measure the inner diameter and then customize the size of the flange. Ideally, there should be an interference fit between the steel ring and the flange to ensure the height of the rotor and the central axis. .

Due to the difficulty in turning such thin-walled pipe fittings, there are turning lines on the inner and outer walls. In order to avoid the dimensional deformation caused by repeated clamping of the workpiece, no further fine grinding is performed, but the use is not affected. buy.

This product is the core component of the motor. No other information is provided except the above product description. Please do not consult. Thank you!

-----------------------------------------------------------------------------------------------

Product Name: 304 stainless steel shaft (with circlip)
Dimensions: diameter 8mm * length 50mm
Diameter tolerance: -0.02mm
Application scenario: motor shaft, positioning pin, etc.

This product is specially designed for 12N14P, 12N16P, 18N22P, 18N24P, 6110 and other types of motors. It is made of 304 stainless steel rod and has a diameter tolerance of -0.02mm. It can better match the flange coupling and 8mm inner diameter bearing of this station. Fit, the rotation is more balanced.

-----------------------------------------------------------------------------------------------

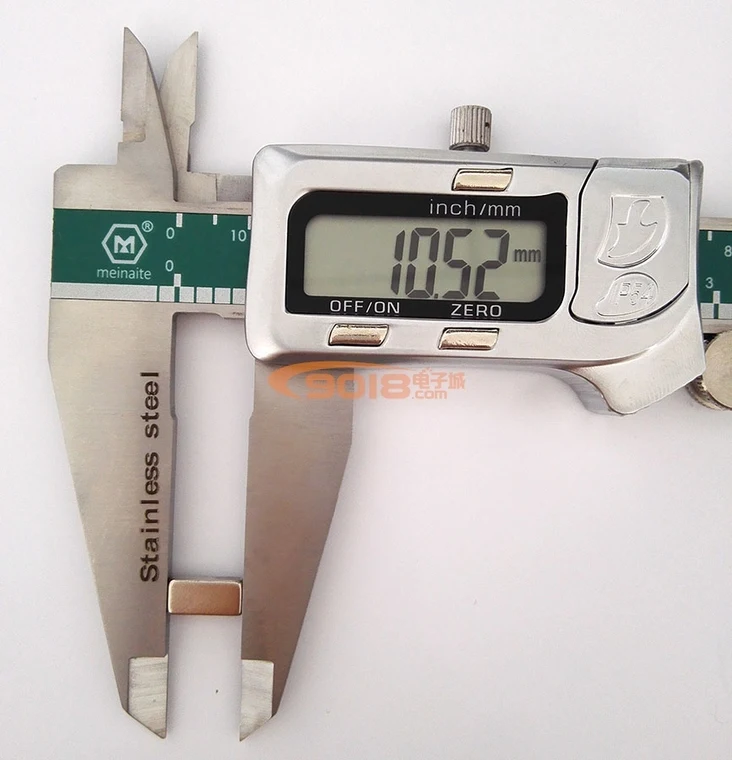

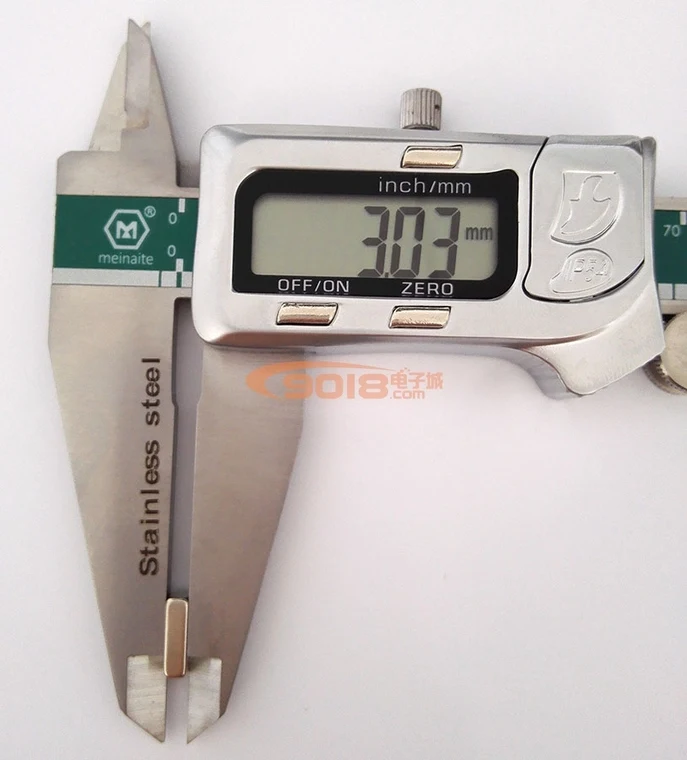

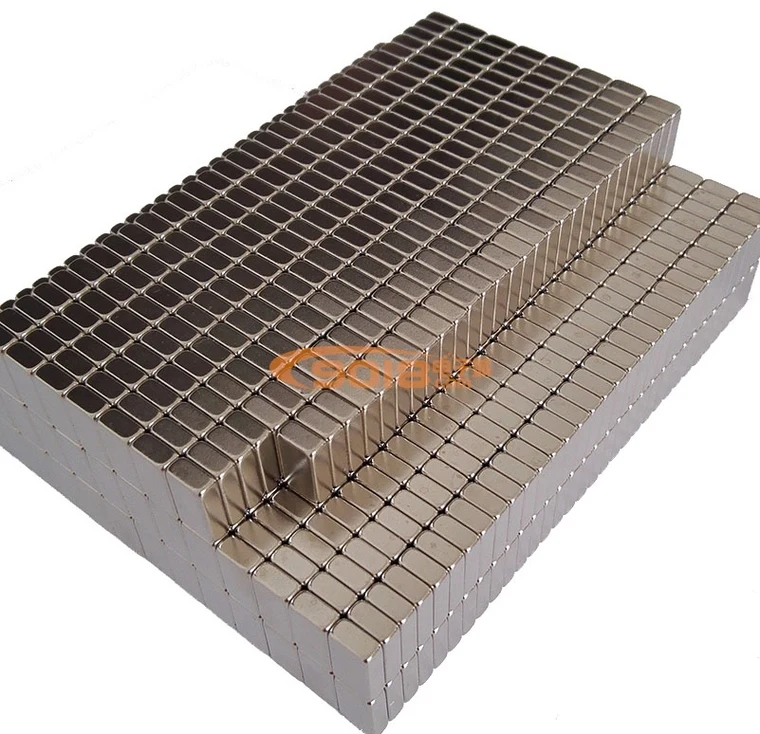

Product Name: Square NdFeB Motor Strong Magnetic Steel
Performance: N42H, motor dedicated
Magnetization direction: radial thickness direction
Size: 10.5*6*3mm
Tolerance: ±0.05mm
Surface technology: electroplating rust

The magnetic field strength of this magnetic steel is much larger than the common black ferromagnetic, and it is stronger than the N35 common in the Taobao market, and its height resistance is not easy to demagnetize. It can be used to make various high-performance permanent magnet motors.

-----------------------------------------------------------------------------------------------

Slot architecture analysis and recommendations:

24N22P: The number of magnetic steel is smaller than the number of slots, the gap between magnetic steel is large, the processing precision of outer casing and magnetic steel is low, the structure is firm, the cost is low, but the power density is small, the vibration is small, the magnetic leakage is large, the torque is small, and the rotation speed is high. For aircraft that require low vibration.
24N26P: The number of magnetic steel is larger than the number of slots, the magnetic steel gap is moderate, the processing accuracy of the outer casing and magnetic steel is not high, the cost is low, the power density is moderate, the vibration is small, and the magnetic resistance is extremely low. Compared with the 22P torque, the rotation speed is low, suitable for For aircraft that require low vibration.
24N28P: The number of magnetic steel is larger than the number of slots, the gap between magnetic steel is small, the processing precision of outer casing and magnetic steel is high, the cost is high, the power density is large, and the vibration is small. Compared with the former two, the magnetic resistance is large, the torque is large, and the rotation speed is low. In the aircraft.
24N32P: The number of magnetic steel is much more than the number of slots, the gap between magnetic steel is very small, the processing precision of outer casing and magnetic steel is extremely high, and the cost is high. It is the largest power density, the strongest torque and the lowest speed in all slot combinations. The resistance of the card is extremely strong, and the running vibration is large. Generally suitable for occasions requiring high power and high torque, not sensitive to vibration. In theory, the magnetic pole combination is the upper limit and should not exceed 32P.
Product Image:
