SVC-D10000VA Single phase automatic voltage regulator 10000W household AC 220V voltage stabilizer for PC fridge air conditioner

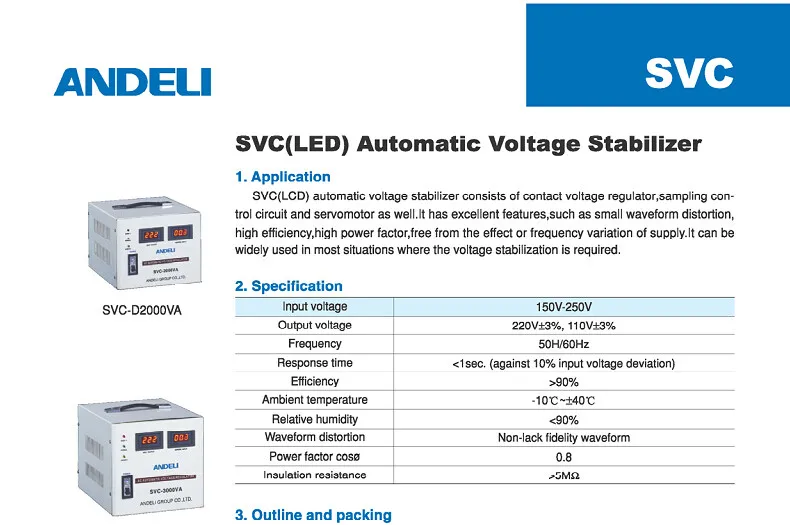

1.Application
SVC(LED) automatic voltage stabilizer consists of contact voltage regulator,sampling control cir-cuit and servomotor as well.It has excellent features,such as small waveform distortion,highefficiency,high power factor,free from the effect or frequency variation of supply.It can bewidely used in most situations where the voltage stabilization is required.
2. Specification

Input voltage 150V-250V Output voltage 220V±3%(default), 110V±3% Frequency 50H/60Hz Response time <1sec.(against 10% input voltage deviation) Efficiency >90% Ambient temperature -10oC~±40oC Relative humidity <90% Waveform distortion Non-lack fidelity waveform Power factor cos 0.8 Insutalion resistance >5MΩ

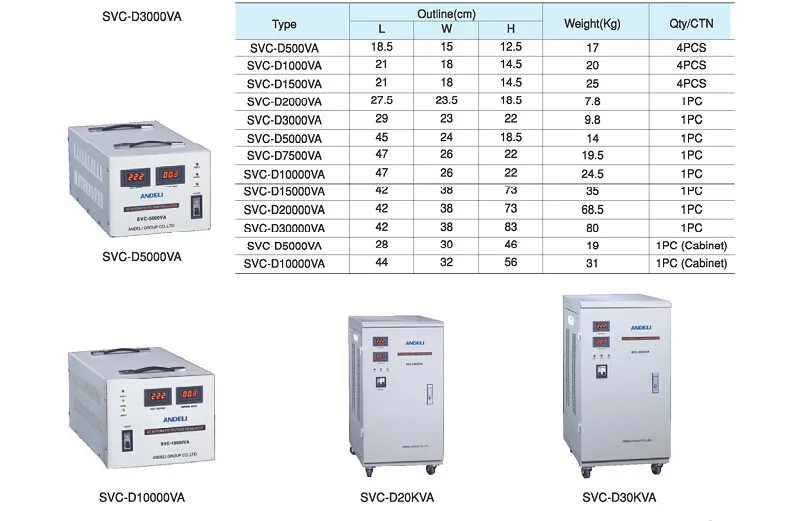

3. Outline and packing







Type Outline(cm) Weight(Kg) Qty/CTN L W H SVC-D500VA 18.5 15 12.5 17 4PCS SVC-D1000VA 21 18 14.5 20 4PCS SVC-D1500VA 21 18 14.5 25 4PCS SVC-D2000VA 27.5 23.5 18.5 7.8 1PC SVC-D3000VA 29 23 22 9.8 1PC SVC-D5000VA 45 24 18.5 14 1PC SVC-D7500VA 47 26 22 19.5 1PC SVC-D10000VA 47 26 22 24.5 1PC SVC-D15000VA 42 38 73 35 1PC SVC-D20000VA 42 38 73 68.5 1PC SVC-D30000VA 42 38 83 80 1PC SVC-D5000VA 28 30 46 19 1PC (Cabinet) SVC-D10000VA 44 32 56 31 1PC (Cabinet)
