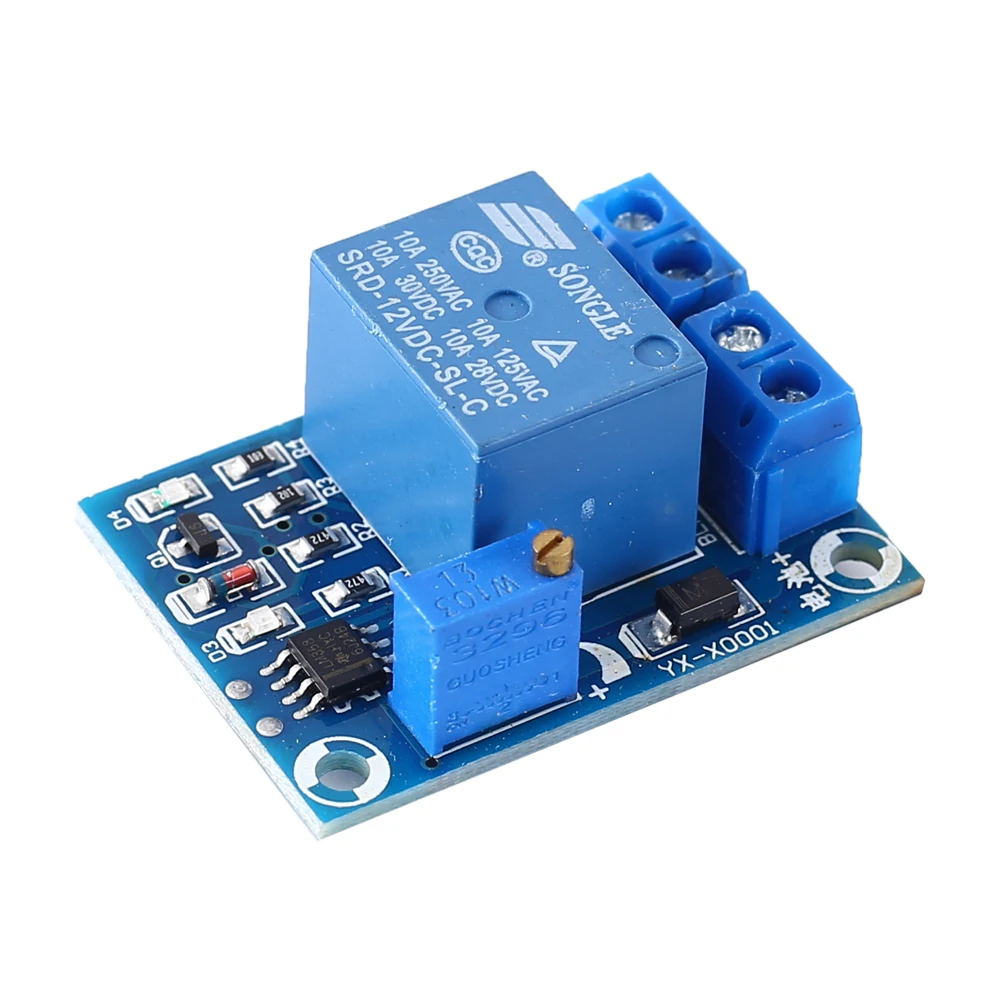

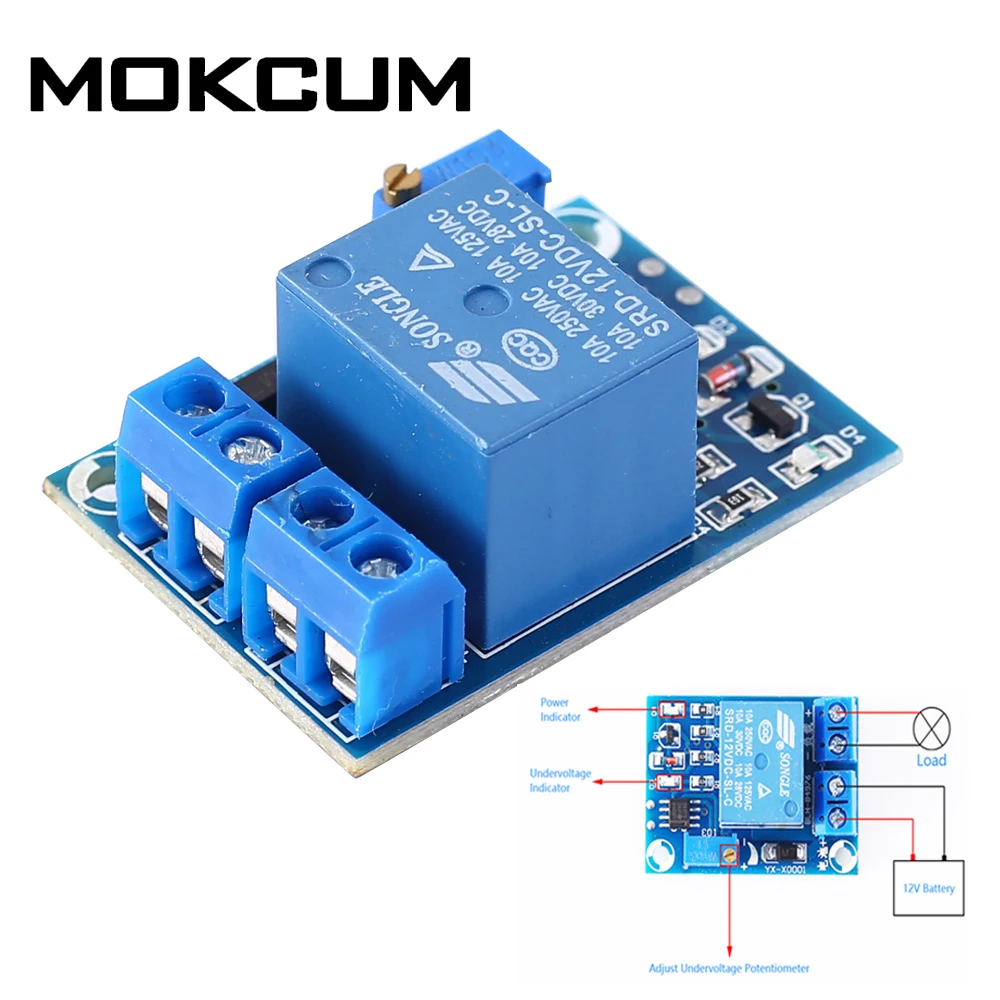

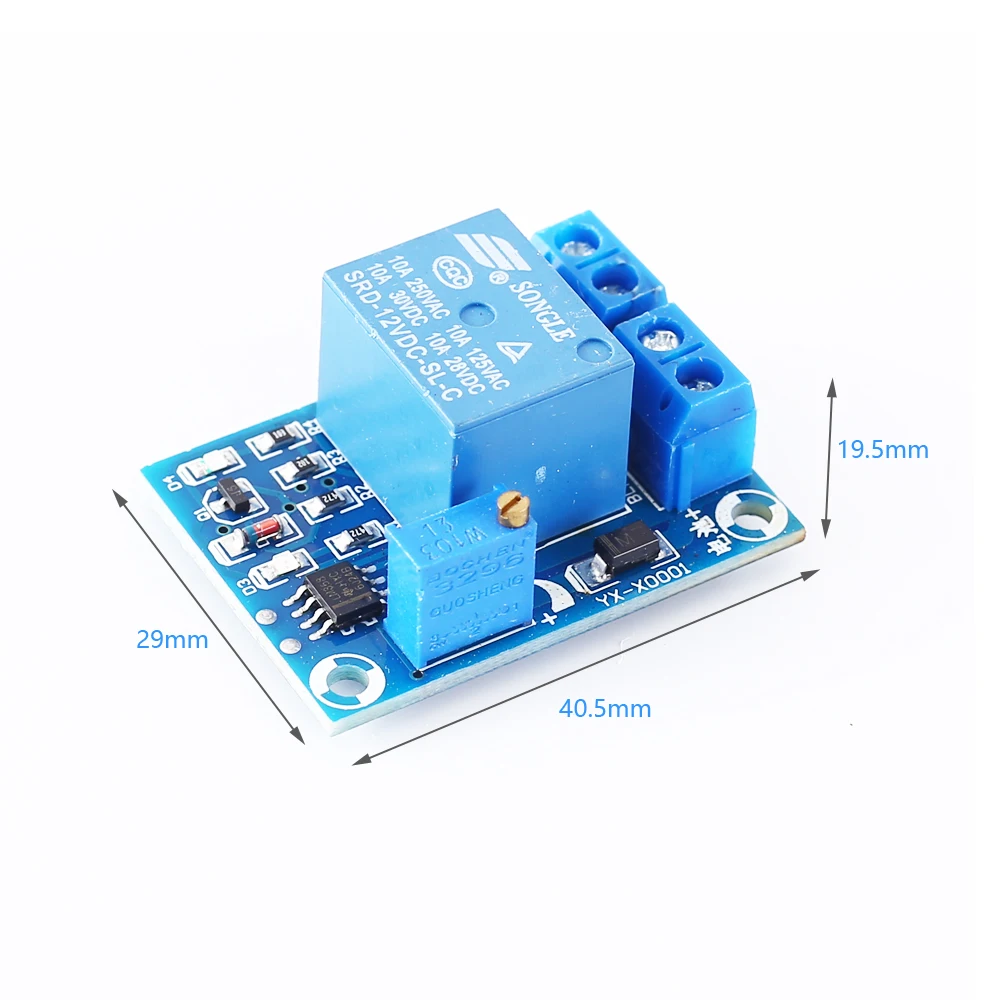

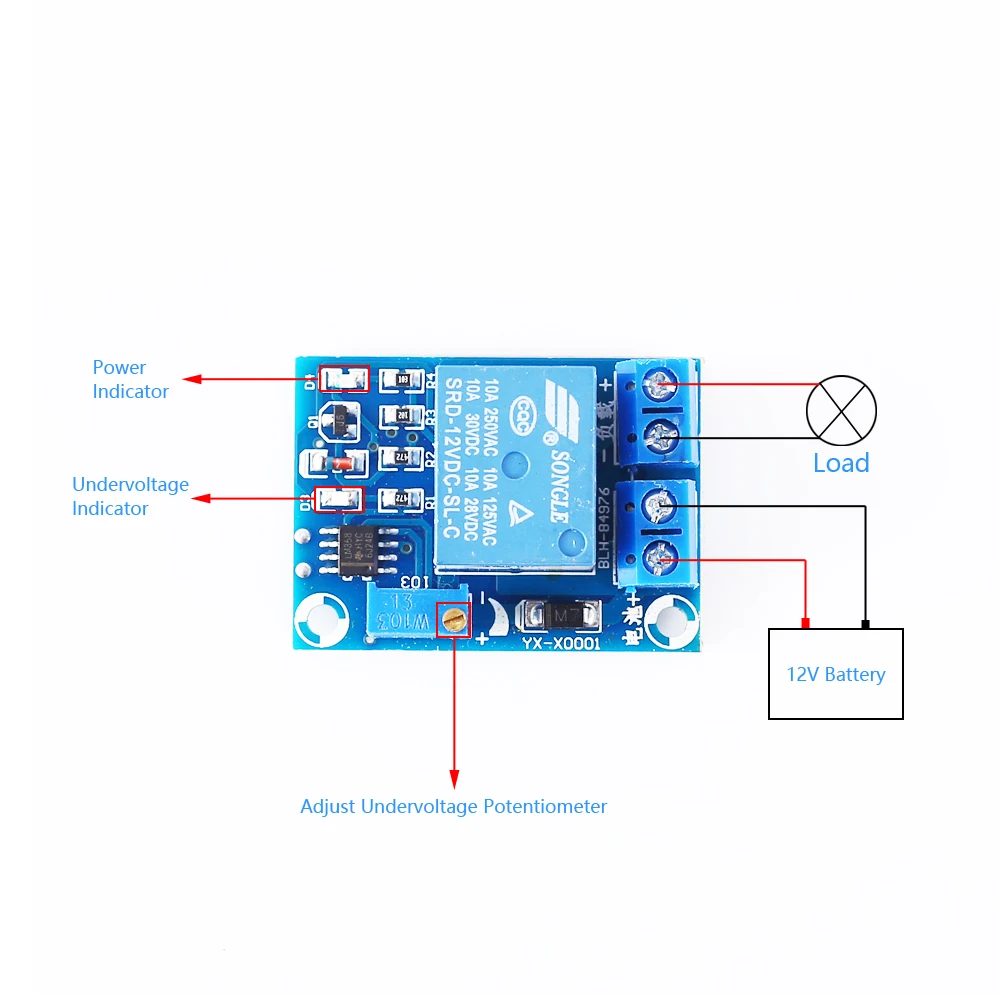

1.Description: YX-X0001 is a over-discharge protection module.The load is automatically disconnected when the battery is under voltage,and is automatically connected when the battery is over voltage.It prevents the battery from being damaged by undervoltage. 2.Feature: 1>.Only use 12V battery 2>.Battery over-discharge protection 3>.Charging protection 4>.Support fine-tuning 5>.Automatic recovery function 3.Parameter: 1>.Product Name:Over-discharge Protection Module 2>.Model:YX-X0001 3>.Battery Voltage:DC 12V 4>.Power Consumption:10mA(MAX) 5>.Load Voltage:DC 12V 6>.Load Current:10A(MAX) 7>.Work Temperature:-25℃~85℃ 8>.Work Humidity:5%~95%RH 9>.Size:40.5*29*19.5mm 4.Working Principle: 1>.The positive electrode of the battery passes the relay, which is automatically closed and opened by the relay. 2>.Adjusting the potentiometer will affect the working voltage of the relay closing and opening.The module is powered by the battery to detect the voltage.(note the positive and negative polarity when wiring) 3>.The undervoltage protection board detects the voltage level to automatically disconnect or connect the load. 4>.Turn the potentiometer clockwise to increase the voltage and turn the potentiometer counterclockwise to decrease the voltage. 5>.If the load is turned on immediately after disconnection, please add a capacitor of more than 25V at the load end. 6>.The load can be lighting and electricity products. 5.Package: 1>.1pcs Over-discharge Protection Module
