  Standard Version (only as a smartphone, No Scanner Functions)

5.0 inch IPS 1280X720

* A3 1.3GHZ  Quad Core

* RAM 2GB+ROM 16GB

* Android 6.0 OS

* Support 13.0MP Camera

* We Can provide the SDK software for second develoap for customers

*Support  Band

     4G:  TDD-LTE Band B38 B39 B40

            FDD-LTE Band B1 B3 B4 B7

     3G: WCDMA 850/1900/2100MHz

     2G: GSM 850/900/1800/1900MHz

Optional Functions:(if you need optional Funcionts pls choose the correct optional )

*1D  2D Laser Barcode Scanner

*NFC

Standard Pacakge Include

1. 1 x Phone
2. 1 x Battery(5000mAh)
3. 1x Charger
4. 1 xUSB cable

5. 1x  Manual

SPECIFICATIONS

PHYSICAL CHARACTERISTICS

Dimension

152.5mm(H)x76mm(W)x17mm(D)

Weight

Net Weight :300g (including battery)

Display

Gorilla Glass 3 9H 4.7 in. TFT-LCD(720x1280)touch screen with backlight

Backlight

LED backlight

Keypads

3TP keys+5 side buttons

Expansions

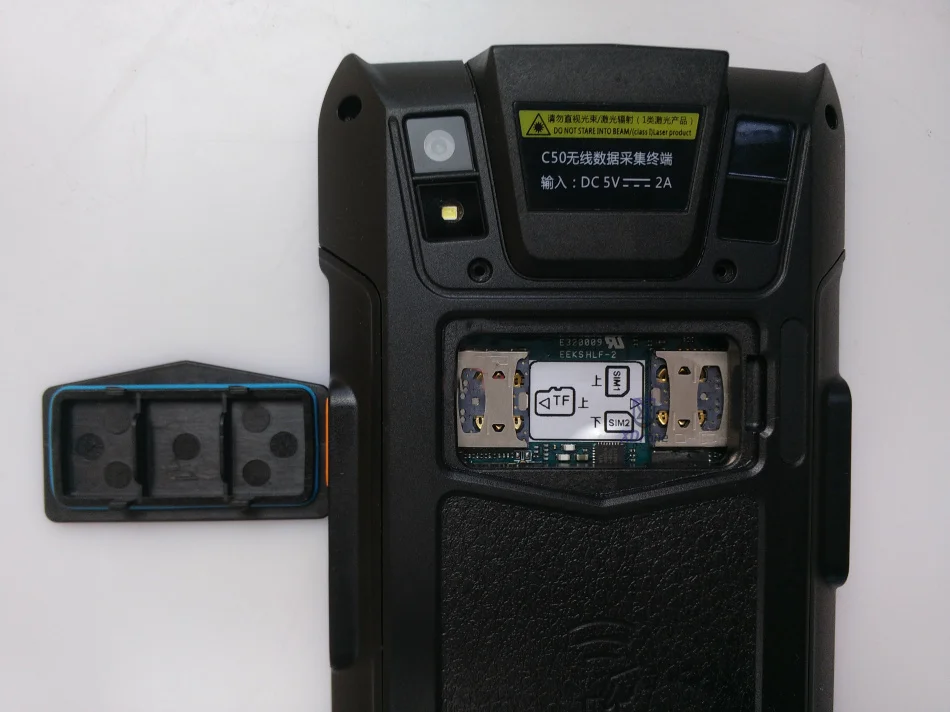

1 PSAM, 1 SIM, 1 TF

Battery

Rechargeable li-ion polymer, 3.7V, 5000mAh  Built-in

PERFORMANCE CHARACTERSTICS

CPU

ARM  Cortex-A53 CPU Quad Core1.3G

Operating System

Android 6.0

Storage

2GB RAM, 16GB ROM, MicroSD(max 32GB expansion)

USER ENVIRONMENT

Operating Temp.

-10C to 55C

Storage Temp.

-20C to 60C

Humidity

5%RH to 95%RH(non-condensing)

Drop Specifications

5ft./1.5 m drop to concrete across the operating temperature range

Sealing

IP67, IEC compliance

Camera

13.0MP

DEVELOPMENT ENVIRONMENT

SDK

HHW Software Development Kit

Language

Java

Environment

Android Studio or Eclipse

DATA COMMUNICATION

WWAN

4G :TDD-LTE Band 38, 39, 40,41  FDD-LTE Band 1.3,4 .7

3G:WCDMA(850/1900/2100MHz);

2G:GSM/GPRS/Edge (850/900/1800/1900MHz)

WLAN

IEEE802.11b/g/n

WPAN

Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0

GPS

GPS(embedded A-GPS), accuracy of 5 m

DATA CAPTUER

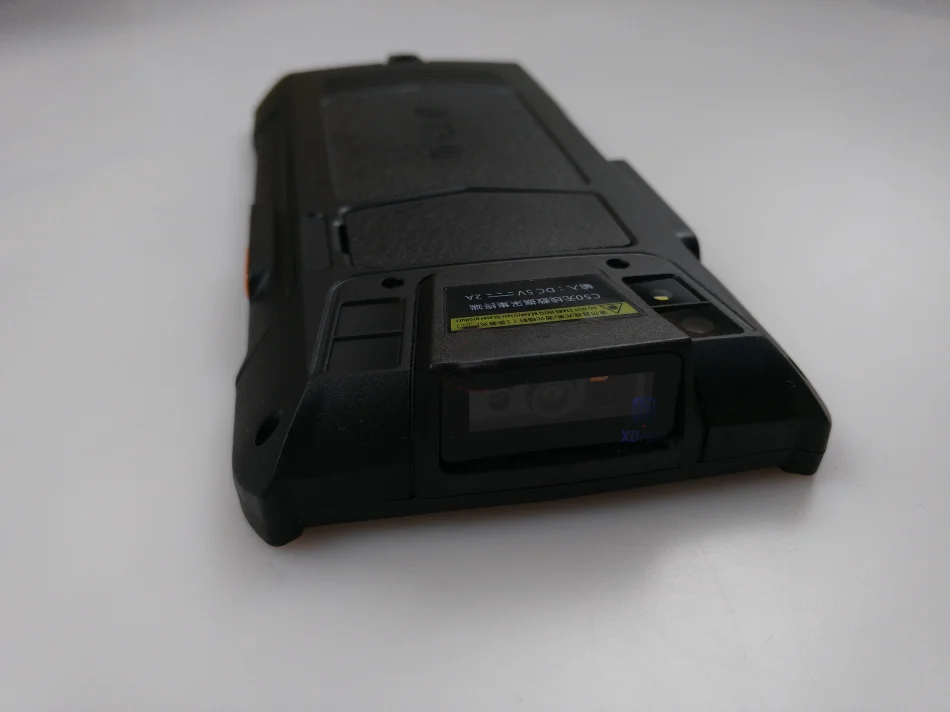

BARCODE READER(OPTIONAL)

1D barcode

1D laser engine

Symbologies

UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5,Chinese 2 of 5, Codabar, MSI, RSS

2D barcode

2D CMOS Imager

Symbologies

PDF417, MicroPDF417, Composite, RSS,TLC-39, Datamatrix, QR code, Micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3
