Description:

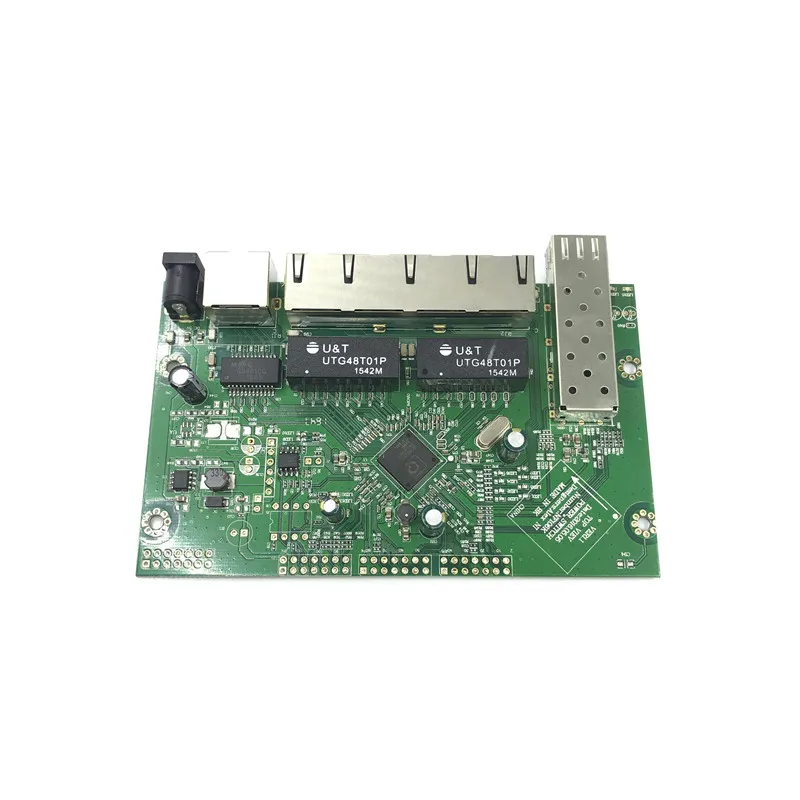

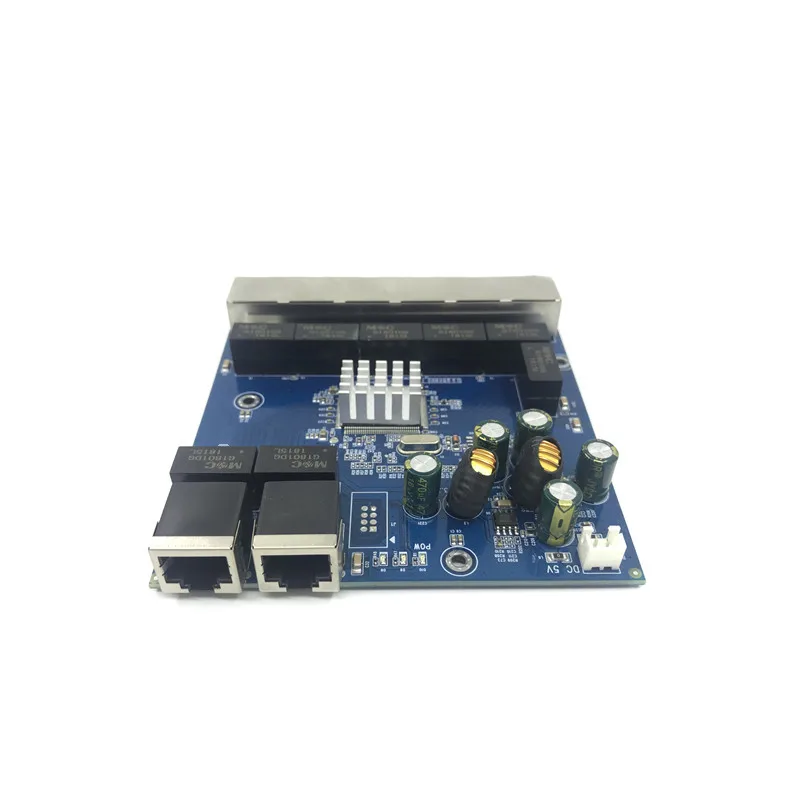

Product is 5/6/8 port industrial grade unmanaged Gigabit Ethernet switch, it has 5/6/8*10/100/1000 Mbps self-adaption Ethernet ports. Provide DC input and positive and negative connection protection to prevent burnout. Small size design, and support industry-standard DIN Rail mounting and wall mounting, it is easy to install in any industrial environment.

Advantages:

1. Using 8 Port high-temperature and low-temperature industrial-grade import chip, the processing capacity is stronger.

2. PCB using high temperature plate TG150 KB material, immersion gold process; good antioxidant capacity.

3. Crystal import from Japan Kyocera brand (the world's most famous crystal).

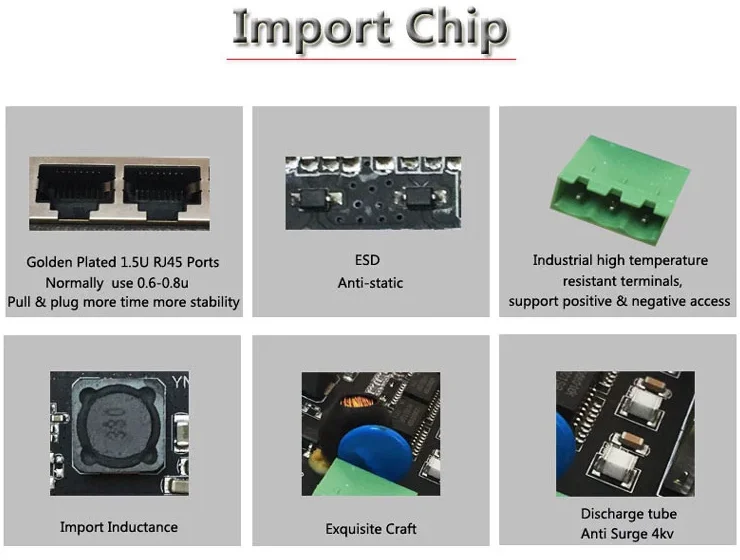

4. Network port using gold-plated 1.5U, conventional is 0.6-0.8u, it’s good for pull and plug time.

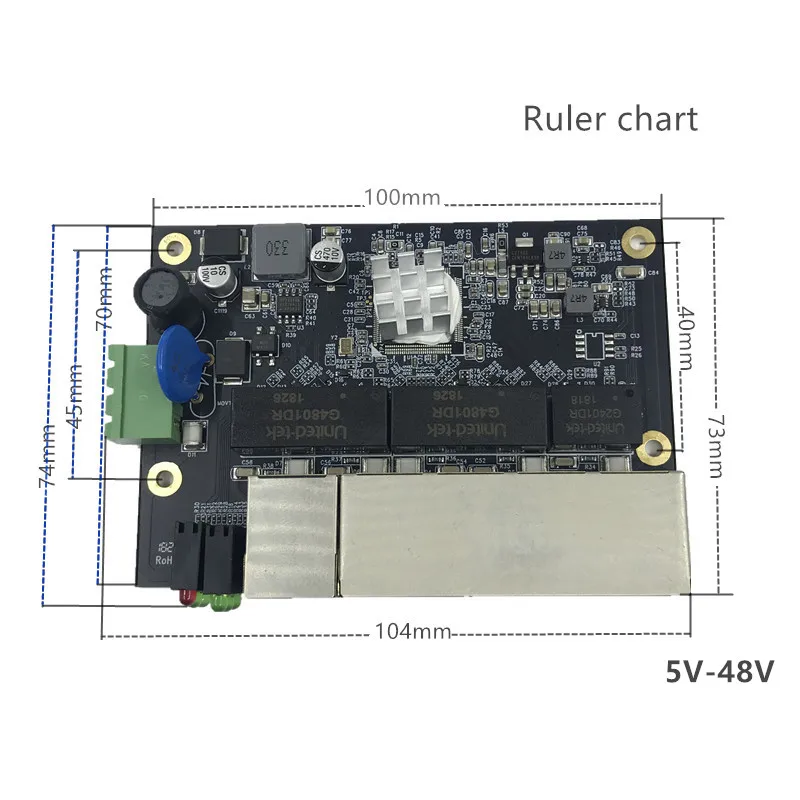

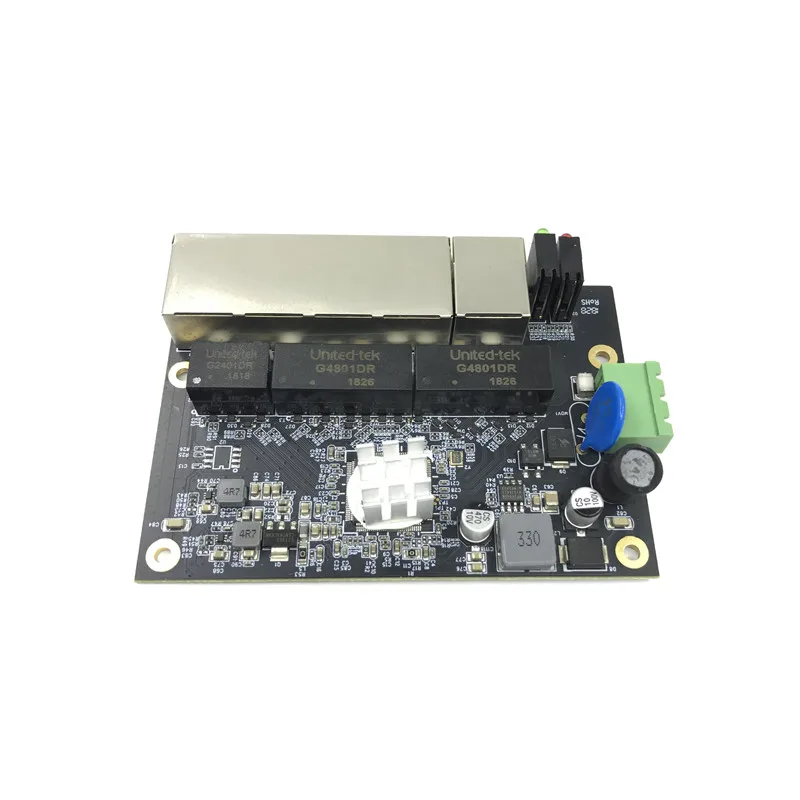

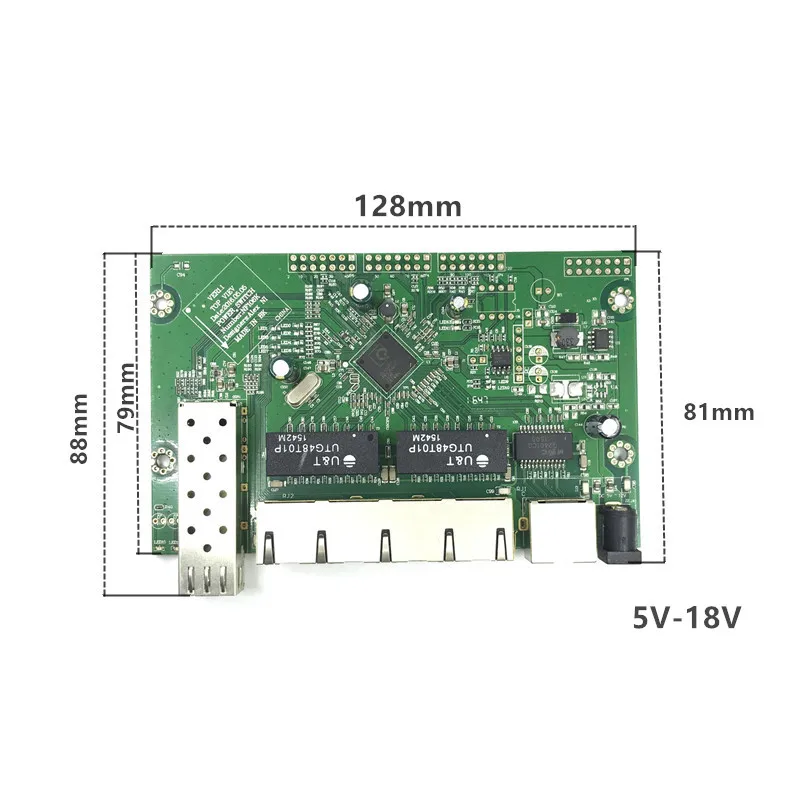

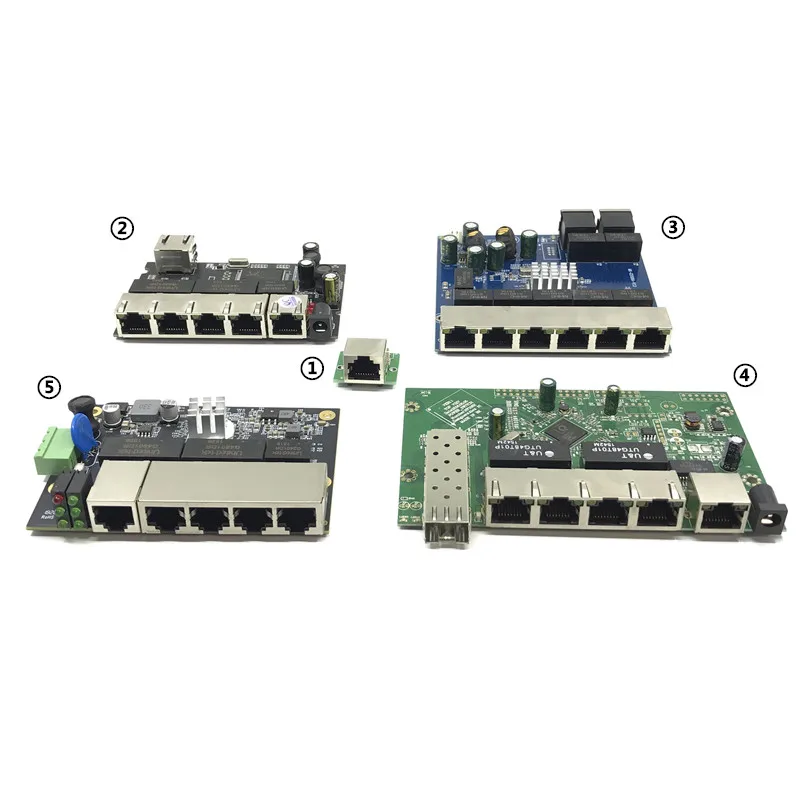

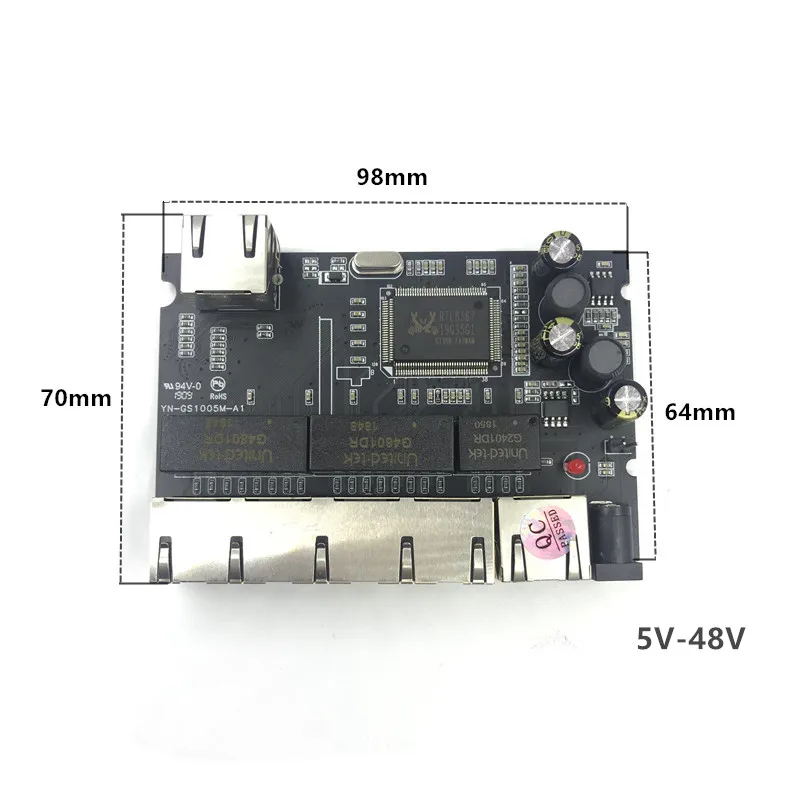

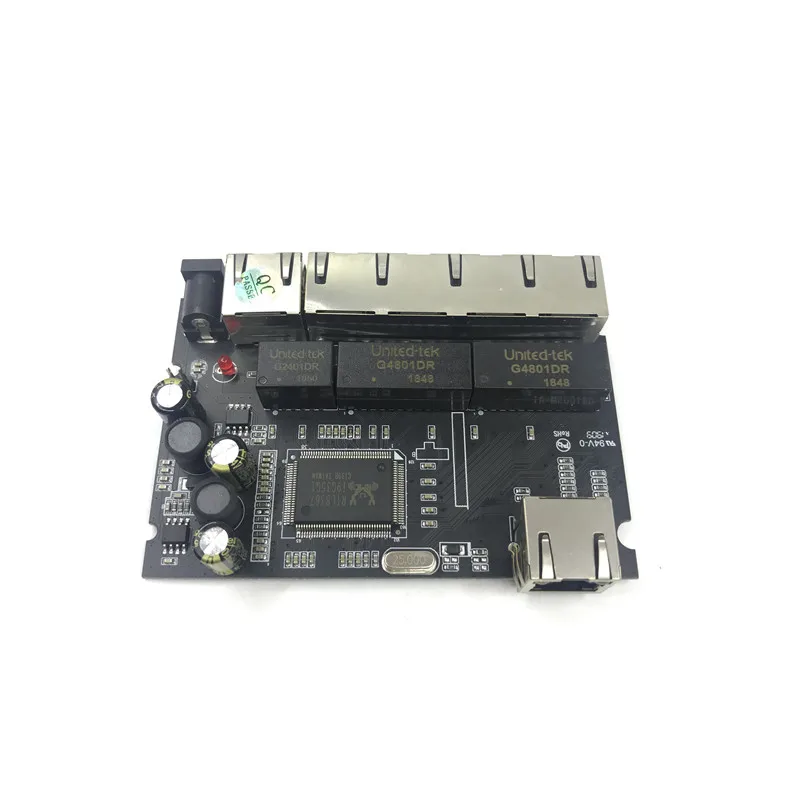

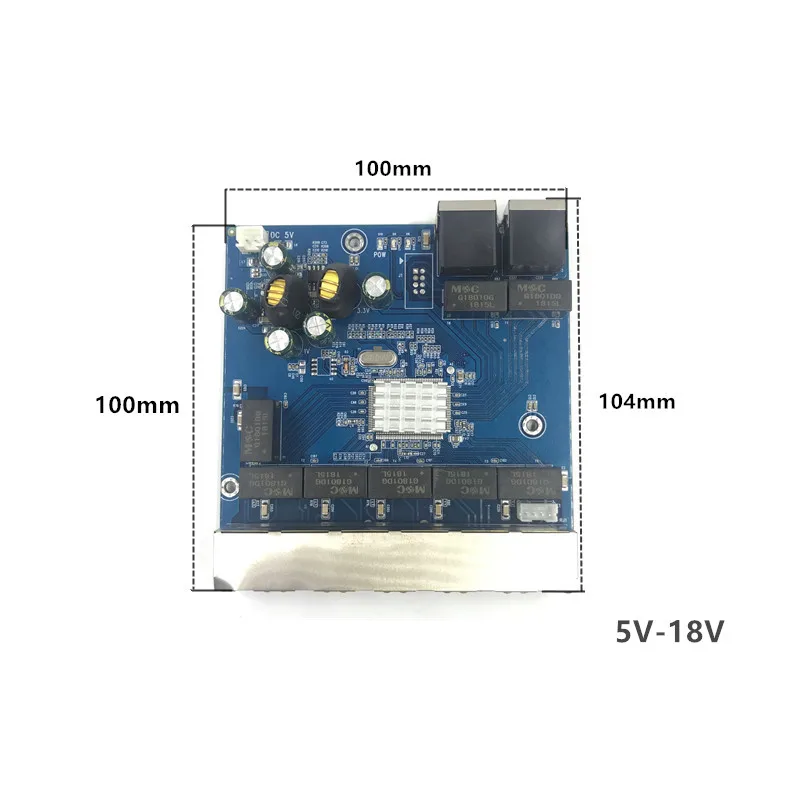

5. Imported power supply, as shown in the figure, picture 3 and picture 4 support 5V-18V, picture 2 and picture 5 support 5V-48V.

6. All capacitors use Murata brand, the filter effect is strong stability.

7. Static support 4KV contact, power supply and network port surge support IEC61000-4-5 standard differential mode 2KV, common mode 4KV.

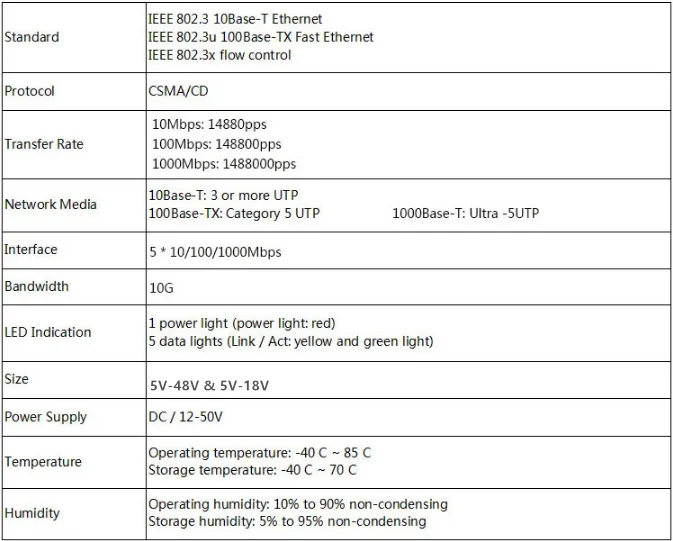

Features:

1. Support IEEE 802.3, IEEE 802.3u, IEEE 802.3ab standard;

2. Full-duplex use IEEE 802.3x standard, half-duplex use Backpressure standard;

3. 5*10/100/1000M self-adaption RJ45 port, all ports support auto flip (Auto MDI / MDIX);

4. Each port support auto-negotiation function, automatic adjust the transmission mode and transmission rate;

5. Support MAC address self-learning;

6. Dynamic LED indicator, to provide a simple working status tips and troubleshooting;

7. Lightning, surge, static full protection, surge differential mode 2KV, common mode 4KV;

8. Redundant dual DC power input overload protection;

9. Using industrial 3P terminal as shown in the figure, picture 3 and picture 4 support 5V-18V, picture 2 and picture 5 support 5V-48V. Power supply use USA chipset.
