DC5~24v Мини контроллер света пикселей IR21key для ленты LED DC5-24V, контроллер для стробоскопической ленты IC WS2811 WS2812 WS1903 2048 пикселей.

DC5~24v Мини контроллер света пикселей IR21key для ленты LED DC5-24V стробоскопической IC WS2811 WS2812 WS1903 2048 пикселей.

1. Features:DC5~24V

1. RF Remote control, with long distance,wire connection is simple and very easy to use;

2. Support almost every kind of one-wire or two-wire LED-DRIVER-IC ;(Can be customized)

3. With 125 kinds of patterns,which are vivid and beautiful;

4. Each controller can control up to 2450 pixels;

5.Preventing reverse connection of power supply.

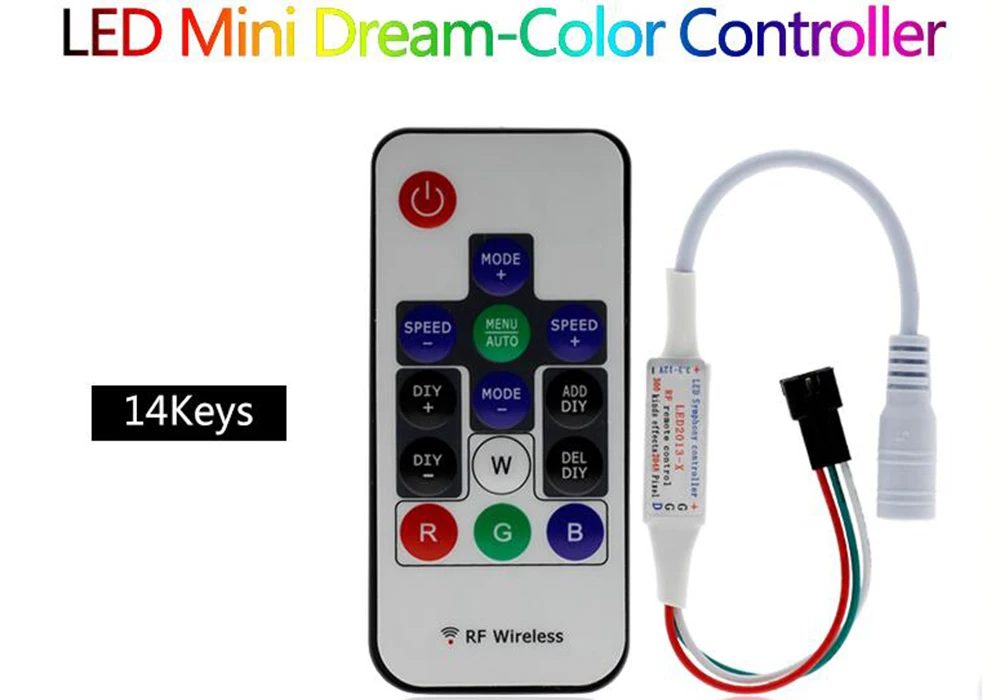

2. Remote Control

1. Functions Of Each Button:

ON/OFF

ON or OFF

MODE+

Switching patterns forwardly

MODE-

Switching patterns backwardly

SPEED+

Switching speed forwardly

SPEED-

Switching speed backwardly

AUTO

Run internal patterns automatically

NUM+

Add the number of pixels on each section

NUM-

Decreased the number of pixels on each section

SEC+

Add number of section.

SEC-

Decreased number of section.

MATCH

Match the Remote control with the receiving controller

2. Testing and Matching:

Pressing and hold the AUTO button for up to 3 seconds until LED is out, release the AUTO button to into the mode of switching in red,green,blue,yellow,purple,cyan and white,witch to test the your LED.

Pressing and hold the MATCH button for up to 3 seconds to match the Remote control with the receiving controller. Pressing and hold the MATCH button for up to 3 seconds to un-match.

3. Sections:

Some of the patterns run in several sections, each section is the same. User can make the number of sections as follow: 5, 10, 15, 20, 25, 30,35. Pixel number of each section can be chosen as follow: 20, 30, 40, 50, 60, 70 .

Sum of pixels = Sections*Number per section

4. User Setting Saving:

User’s each pressing on the button can be saved by the controller automatically. When the controller is power off, next time power up, it will work the way as the same as before.

3. Receiving Controller：

Can be customized to support almost every kind of one-wire or two-wire LED-DRIVER-IC.User can specify to support which IC before our delivery,and also,user can modify the status of  R5,R6,R7,R8 on the PCB to meet their needs:

Actions

To support IC

Short none of R5,R6,R7,R8

WS2811

Short R5,breakR6,R7,R8

WS2801

Short R6,breakR6,R7,R8

LPD6803

Short R7,breakR6,R7,R8

LPD8806

Short R8,breakR5,R6,R7

UCS9812

Short R5,R6,breakR7,R8

UCS1903,APA104

Short R6,R7,breakR5,R8

APA102

Short R7,R8,breakR5,R6

TM1804,TM1809

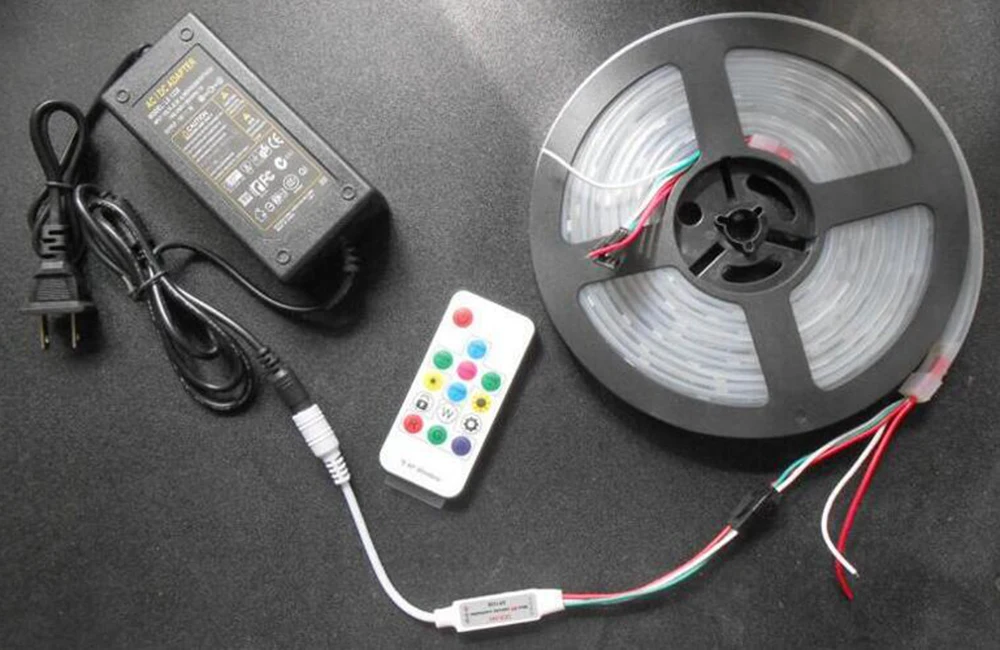

4. Wire Connection：
