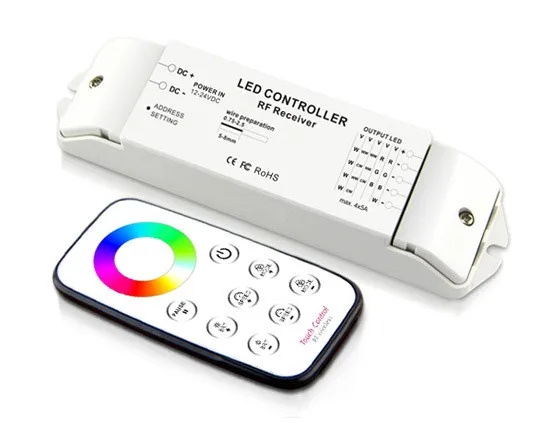

T3+R4 full color RGB touch circle remote led rgb controller with rf touch remote

 This T Series Wireless remote is dedicated to controlling led lamps by RF radio frequency;

there are several functions on the remote, such as on-off, pause, modes changing, brightness and

speed adjustment etc; the wireless signal is with strong penetrating power, no limit to direction or

obstacles. With our R Series Reveiver, it is easy to change lamp lights such as: dimming, color

temperature, RGB/RGBW etc; thus can satisfy the different demands of clients. T series have a

simplefashion design, comfortable hand feeling, and user friendly.Specification :

Model

Wireless Remote(T1/T2/T3/T4/T5)

Working Voltage

3V(CR2032)

Working Frequency

433.92MHz

Remote Distance

40m-50m

Working Temp

-20~+55

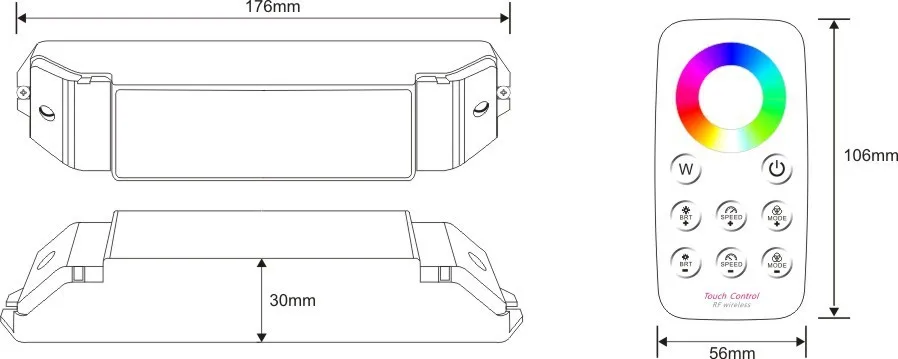

Dimensions

L106×W56×H9(mm)

Weight(N.W.)

40g

Model

Receiver(R4)

Compatible Remote

T1/T2/T3/T4/T5

Working Voltage

DC12V-DC24V

Output Current

Max 5A×4CH

Output Power

Max 240W(12V)/480W(24V)

Working Temp

-30~+55

Dimensions

L176×W46×H30(mm)

Weight(N.W.)

145g

Feature:

1. Automatically adapt to LED light which works from  DC12V-24V.

2. The receiver can implement features such as dimming, RGB/RGBW and color temperature control.

3. Using RF remote control , the wireless signal is with strong penetrating power, no limited to direction or obstacles, and can control the multi function of ON/OFF, pause ,change mode , brightness and speed ,etc.

4. 10 strobe&fade change mode , with 4096 grey scales per channel, led lamp is more rich and vivid without  flash .

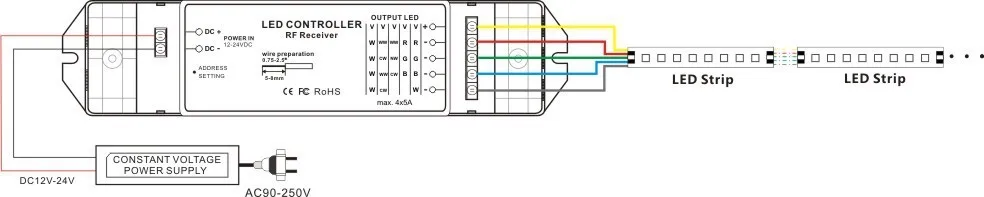

Typical Wiring Schematics

The Learning ID Method of Remote Control:

Remote control has been matched to the receiver before leave factory,if deleted accidentally,

you can learn ID as follow.

Learning ID: Press ID learning button on the receiver until the running light is on,then press

any key on the remote control,the running light flashes several times,activated.

Cancel ID: Press ID learning button on the receiver for 5 seconds.
