1.5KW 3.7A 3phase 380VAC MPPT solar pump inverter with IP65 for 1HP 0.75KW water pump Full automatic operation



Product Overview





INTRODUCTION:



This high efficiency solar pump inverter is compatible with single phase or 3 phase induction Water Pump Motor. Dynamic VI maximum power point traking (MPPT). Directly transferring solar energy into load using, really high conversion efficiency.

It's suitable for centrifugal pump, axial-flow pump, mixed-flow pump, deep well pump, etc..

It can be applied to daily use (ground water), agricultural irrigation, foretry irrigation, desert control, pasture animal husbandry, etc..



FEARURE:



1. Compatible with 3-phase induction Water Pump Motor
2. Dynamic VI maximum power point tracking(MPPT)
3. Can be installed outside without water-proof box
4. Full automatic operation
5. High conversion efficiency (above 98%)
6. Complete protective functions

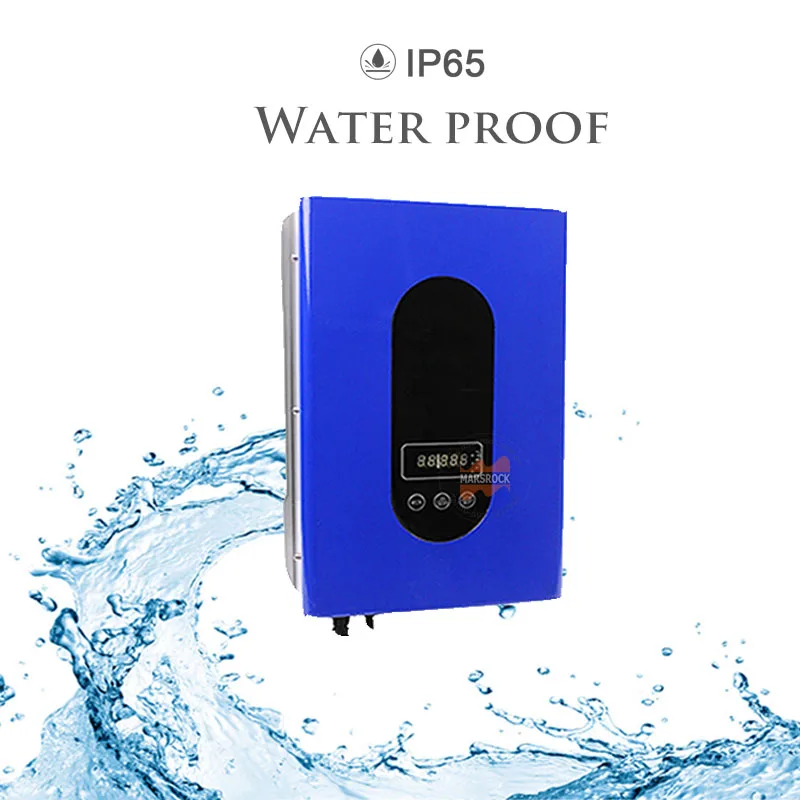

7. Protection degree IP65
8. Built-in GPRS receiving module (M2Moptional)
9. Soft start and variable-frequency function
10. CEISO approved
11. 2 years warranty





Tech parameter



  Model

Input

voltage

MPPT

voltage

Rated

Input

Current

PV Power

Inverter

Output

Current

Inverter

Rated

Power

Pump

Rated

Power

Output

Voltage

LINK VDC V  (A) KW Rated (A) KW HP KW VAC   PS750S 250-500 280-450 11 1.08 7 0.75 0.5 0.37 1PH 220 Click here PS750S1 11 1.08 7 0.75 0.75 0.55 Click here PS1000S 11 1.62 9 1 1 0.75 Click here PS1500S 13 1.8 14 1.5 1.5 1.1 Click here PS2200S 13 2.52 16 2.2 2 1.5 Click here PS4000S 20 4.32 23 4 3 2.2 Click here PS4000S1 20 5.04 23 4 4 3 Click here PS750L 250-500 280-450 6 1.08 4.5 0.75 0.75 0.55 3PH 220 Click here PS1500L 9 1.62 7 1.5 1 0.75 Click here PS1500L1 9 1.8 7 1.5 1.5 1.1 Click here PS2200L 13 2.52 10 2.2 2 1.5 Click here PS4000L 20 4.32 16 4 3 2.2 Click here PS4000L1 20 5.04 16 4 4 3 Click here PS750H 450-750 480-600 4 1.5 2.5 0.75 0.75 0.55 3PH 380 Click here PS1500H 5 1.5 3.7 1.5 1 0.75 Click here PS1500H1 5 1.8 3.7 1.5 1.5 1.1 Click here PS2200H 7 2.4 5 2.2 2 1.5 Click here PS4000H 12 4.25 9 4 3 2.2 Click here PS4000H1 12 4.5 9 4 4 3 Click here PS5500H 17 8.5 13 5.5 5 3.7 Click here PS5500H1 17 8.5 13 5.5 5.5 4 Click here PS7500H 22 8.5 17 7.5 7.5 5.5 Click here PS11KH 32 12.75 25 11 10 7.5 Click here PS11KH1 32 12.75 25 11 12.5 9.2 Click here PS15KH 41 16.8 32 15 15 11 Click here PS15KH1 41 17.6 32 15 18.5 13 Click here PS18KH 50 21 37 18 20 15 Click here



Product Details

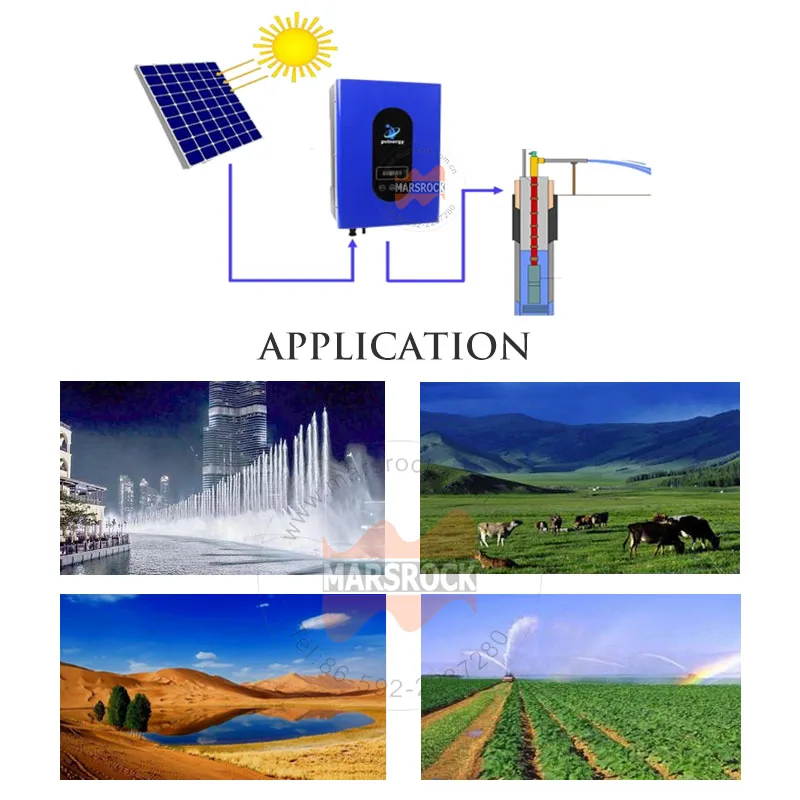

Application





Centrifugal pump, axial-flow pump, mixed-flow pump and deep-well pump can be utilized.Applied to daily use (ground water), agricultural irrigation, forestry irrigation, desert control, pasture animal husbandry, water supply for islands, wastewater treatment engineering, and other water supply applications.



Animal Husbandry:





It includes pump, solar  controller, solar panel, and reservoir. This system adopts solar power pump to satisfy the water demand of animals and plants in pasture as well as desert control instead of grid, diesel generator and battery. The whole system is operated automatically, achieving the goals of free maintenance and energy efficiency. It is particularly applicable in inconvenient traffic areas without grid.
Application:Pasture, Forest Farm, Meadow, Livestock farm, Desert, etc.



Desert Control:





This system includes pump, solar  controller, solar panel, and reservoir. It adopts solar power pump to satisfy desert water supply for instead of grid, diesel generator and battery.
Application: desert water supply, desert control, desert irrigation, etc.

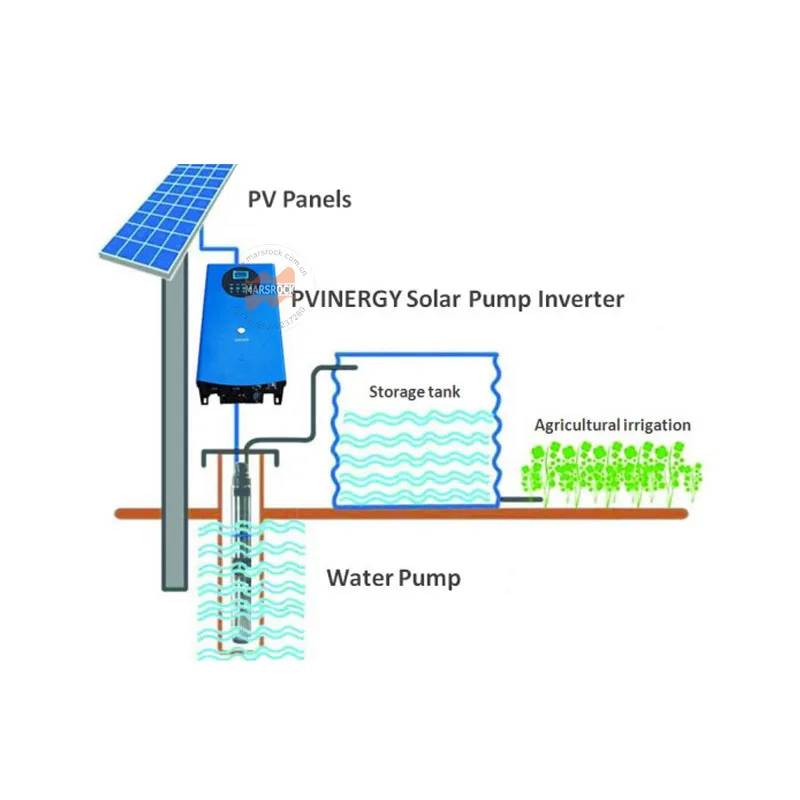

Irrigation:





This system is composed of pump, solar controller, solar panel and irrigation equipment. It mainly takes advantage of solar power driven pumps for water instead of diesel and grid irrigation system, which provides convenient installation, saves energy and improves the economic benefit, especially for electricity shortage areas.
Applications:farmland, orchard,  garden, etc.



Swimming Pool:





This system is mainly composed of pump, solar controller, solar panel, swimming pool and water recycling equipment.  Via making full use of solar power, it can reduce the cost of swimming pool and beautify the environment, which is applicable in unstable grid areas.
Application:Gymnasium, villa, hotel, holiday village, etc.
