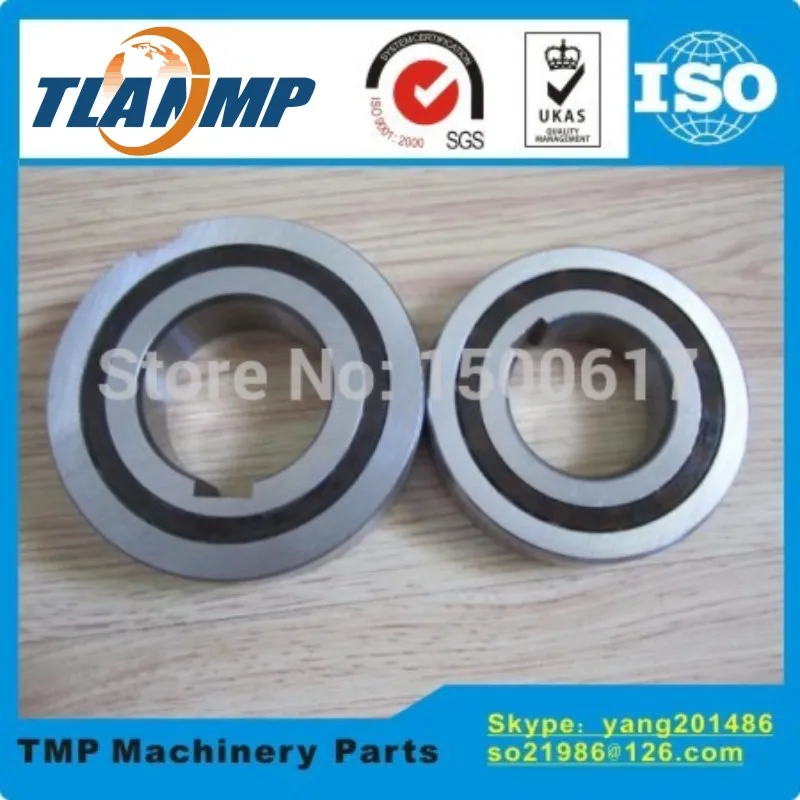

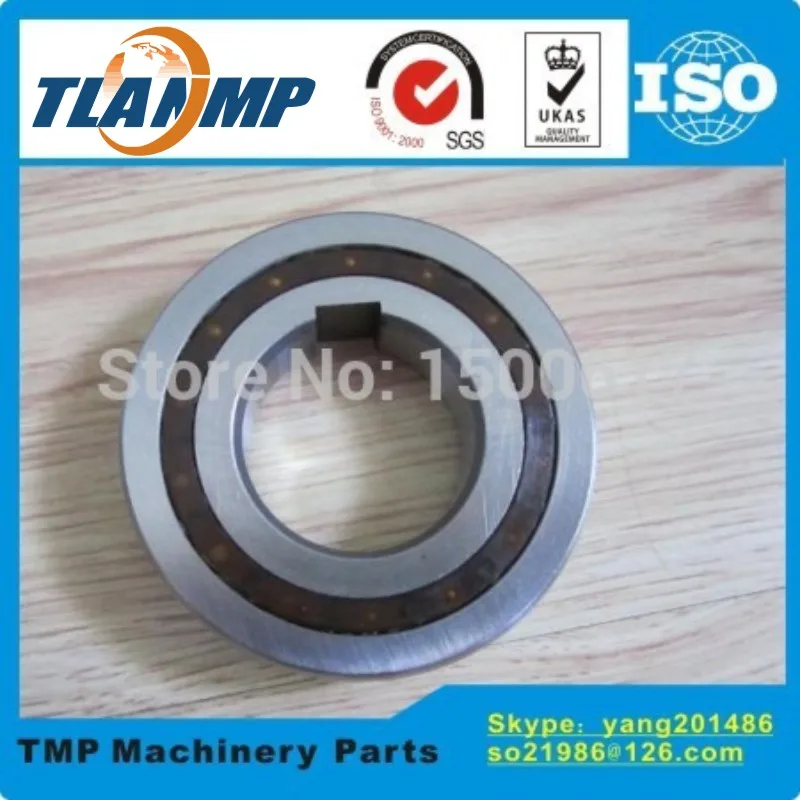

CSK30P One Way Clutches Sprag Type (30x62x16mm) Bearings bearing supported Freewheel Clutch With Single Keyway |

CSK30P One Way Clutches Sprag Type (30x62x16mm) One Way Bearings  bearing supported Freewheel Clutch With Keyway   A . One Way Clutches Sprag Type Parameters Brand- TLANMP Model number- CSK30P Inner ring(mm)- 30 Outer ring(mm)- 62 Width(mm)- 16 Weight(Kg)- 0.21 Drag torque(Nm)- 110 Materials- GCR15 Series- CSK Lubrication type- Grease/oil Clutch type- Sprag Precision-  P0 Structure- Type CSK is a sprag type freewheel integrated into a 62 series ball bearing (except sizes 8 and 40).    B . CSK30P One Way Clutches Sprag Type Specification Sheet Model
Number Size(mm) Corresponding bearing Drag torque Speeds Bearing Load
Rating(KN) Weight
(kg) Friction
TR
(Ncm) d D L TKN1
(Nm) n
(r/min) dyn stat CSK30P 30 62 16 6206 110 4200 11.7 6.45 0.21 4.4

 C . CSK Series One Way Clutches Sprag Type Details

Product

Features

One Way Clutches Sprag Type mainly used as Backstop clutches(Most suitable as backstops, and mostly

 the contact-free versions);
Backstop clutches:The freewheel allows rotation in one direction only. It overruns continuously during

operation. The freewheel prevents reverse rotation if the drive is disconnected.

Series

Introduction

Type CSK is a sprag type freewheel integrated into a 62 series ball bearing (except sizes 8 and 40)

. It is bearing supported, delivered grease lubricated and protected against dust of more than 0,3 mm.

The use of additional "nylos" type seals is recommended especially when the working temperature exceeds

 50°C. Oil bath lubrication is also possible.
All the CSK versions are equipped with "form chromed" sprags. This process increases several times the

overrunning life time. Torque transmission is ensured by a press fit assembly into a rigid outer housing with

 N6 tolerance, and onto a shaft with n6 tolerance. The initial bearing radial clearance is set at C5, and is

reduced if using the press fit as specified.

Please contact us when either the ambient or the operating temperature is not within the range +5°C

Series

Model No.

CSK8(CSK8P/CSK8PP) CSK12(BB12/ZZ6201/OW6201/CSK12P/CSK12PP)

CSK15(BB15/ZZ6202/OW6202/CSK15P/CSK15PP) CSK17(BB17/ZZ6203/KK17/OW6203/CSK17P/CSK17PP)

CSK20(BB20/ZZ6204/KK20/OW6204/CSK20P/CSK20PP) CSK25(BB25/ZZ6205/KK25/OW6205/CSK25P/CSK25PP)

CSK30(BB30/ZZ6206/KK30/OW6206/CSK30P/CSK30PP) CSK35(BB35/ZZ6207/KK35/OW6207/CSK35P/CSK35PP)

CSK40(BB40/CSK40P/CSK40PP)



CSK8-2RS CSK12-2RS CSK15-2RS/BB15-2GD CSK17-2RS/BB17-2GD CSK20-2RS/BB20-2GD

CSK25-2RS/BB25-2GD CSK30-2RS/BB30-2GD CSK35-2RS/BB35-2GD CSK40-2RS/BB40-2GD

Applications

Reducers , Flender Gearbox ,SEW Gearbox;
Overrunning clutch: for multiple-machine drives or to separate the inertia of masses of a driven machine from

 the driving machine after it has been switched off.

Indexing clutch: which turns a shaft step by step, thus achieving indexed material feed or a variable speed.

Backstop clutch: to prevent a machine shaft turning backwards. In this case the overrunning clutch acts as a brake.
