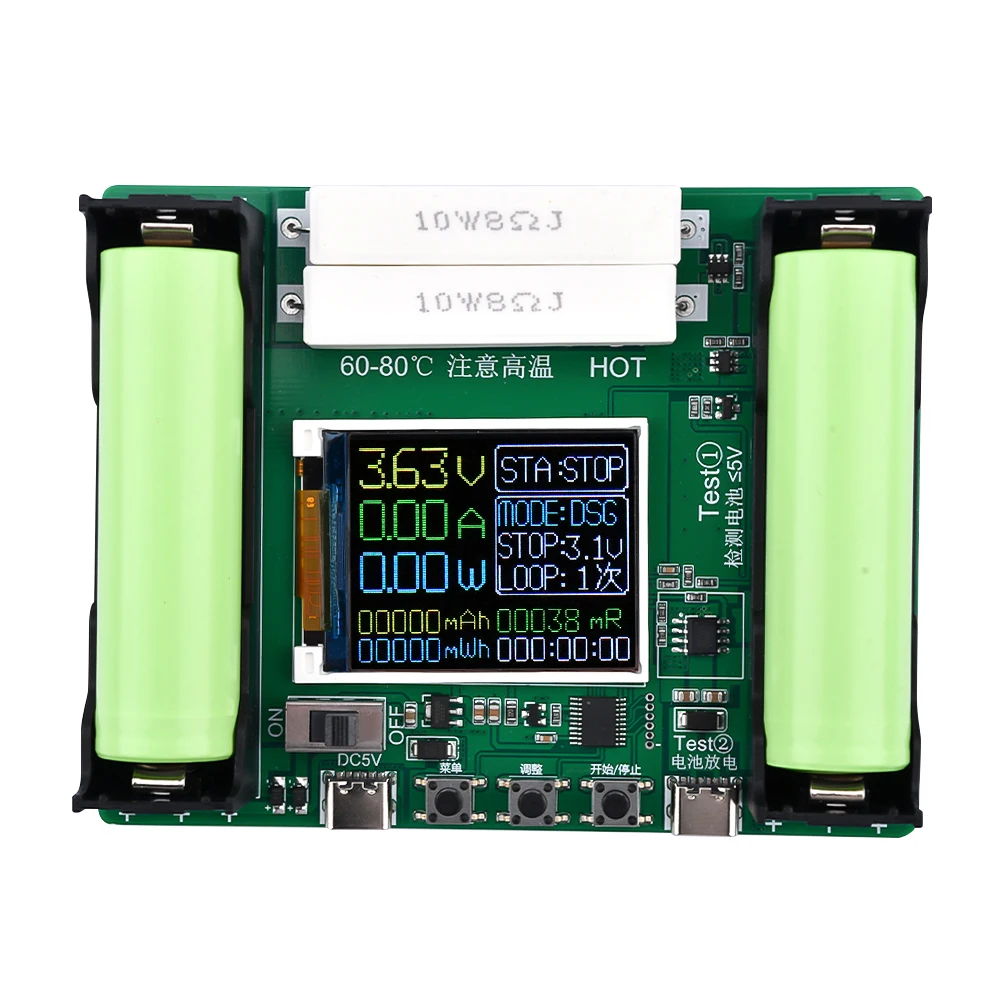

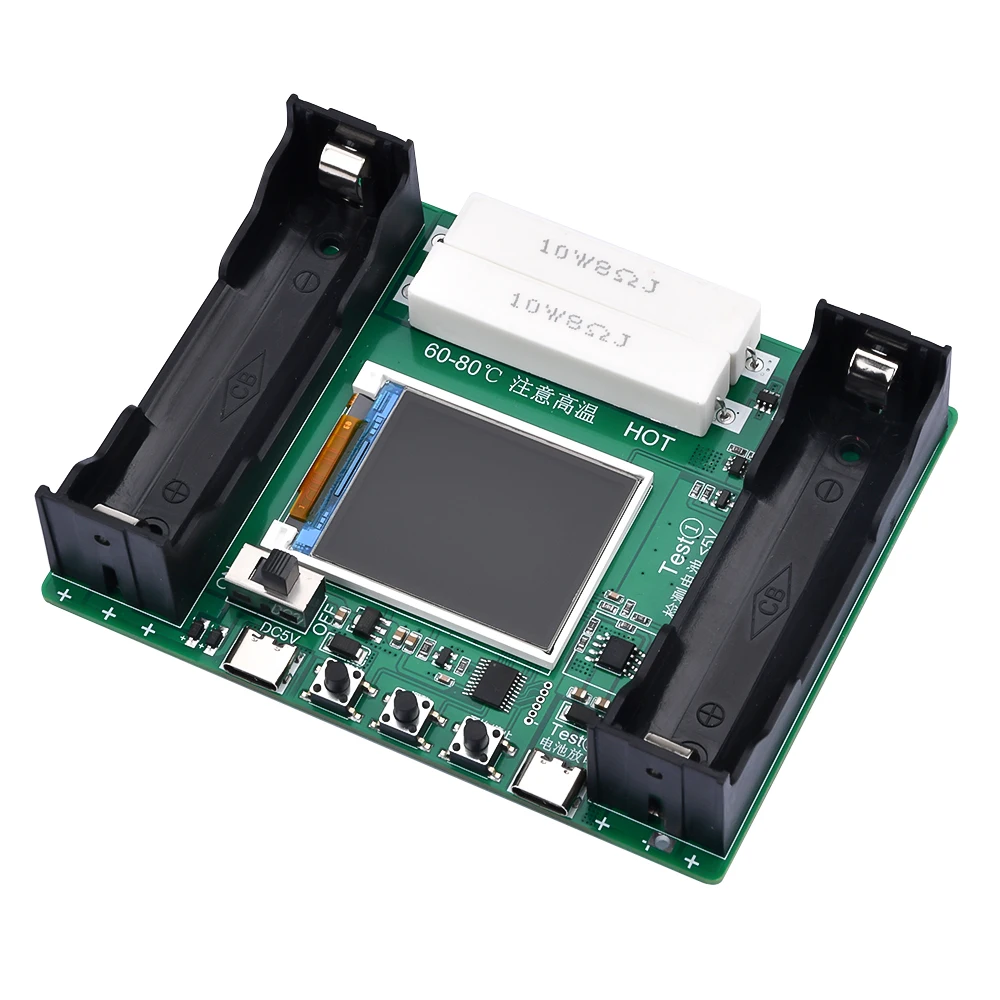

Измеритель емкости батареи LCD-дисплея MAh MWh 18650 литий-ионных аккумуляторов цифрового измерения модуля мощности включен.

Измеритель емкости батареи LCD-дисплея MAh MWh 18650 литий-ионных аккумуляторов цифрового измерения модуля мощности включен.

Features:

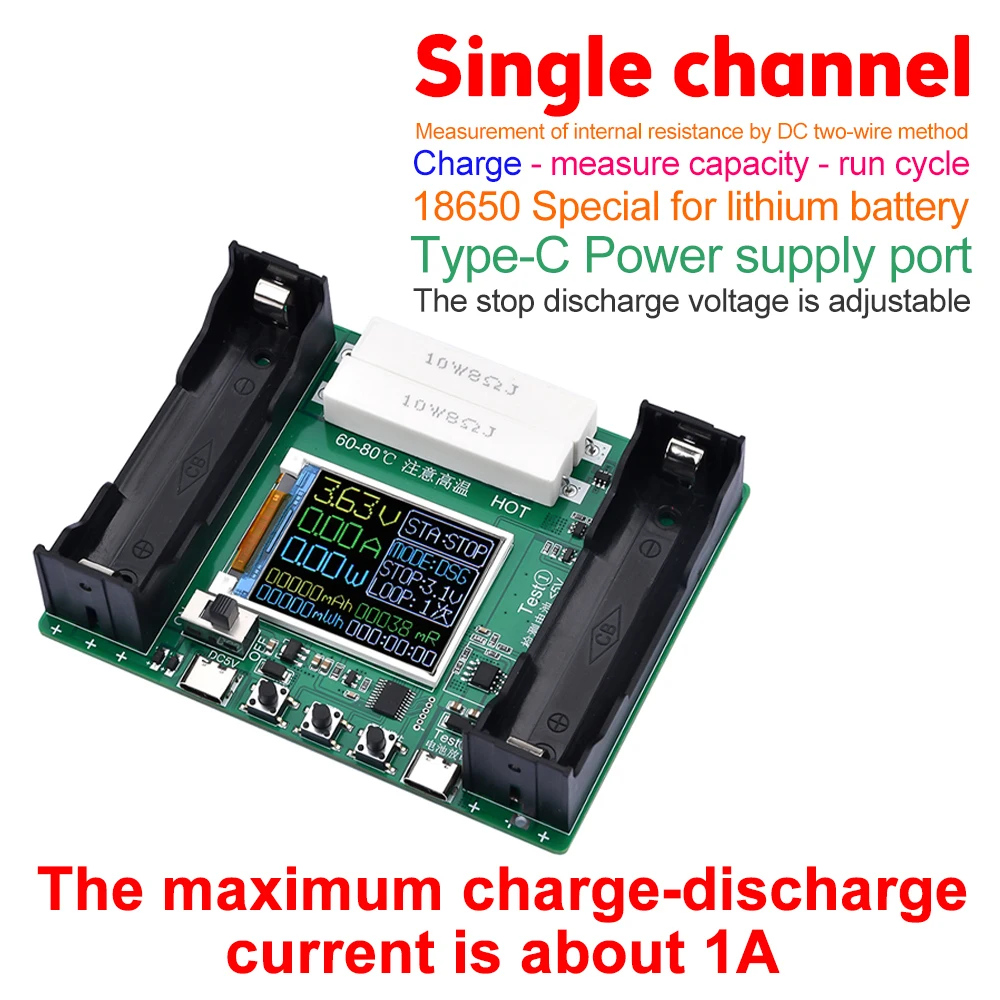

1. The product supports single-channel capacity and internal resistance measurement
2. Support separate charge and discharge, support up to 9 charge and discharge cycles in automatic mode
3. There are 11 levels of adjustable discharge stop voltage
4. Use the DC two-wire method to test the internal resistance, Chinese and English can be switched
5. The maximum charge and discharge current is about 1A


Notice:
Some components will generate local high temperature during charging and discharging during use. Please ensure that the use environment is open and uncovered. It is better to increase the heat dissipation of the fan.
In order to ensure that the battery clip is firm, the 18650 battery holder uses a compact battery holder, which is suitable for flat battery measurement! ! !
Does not support lithium iron phosphate battery charging


Parameters:

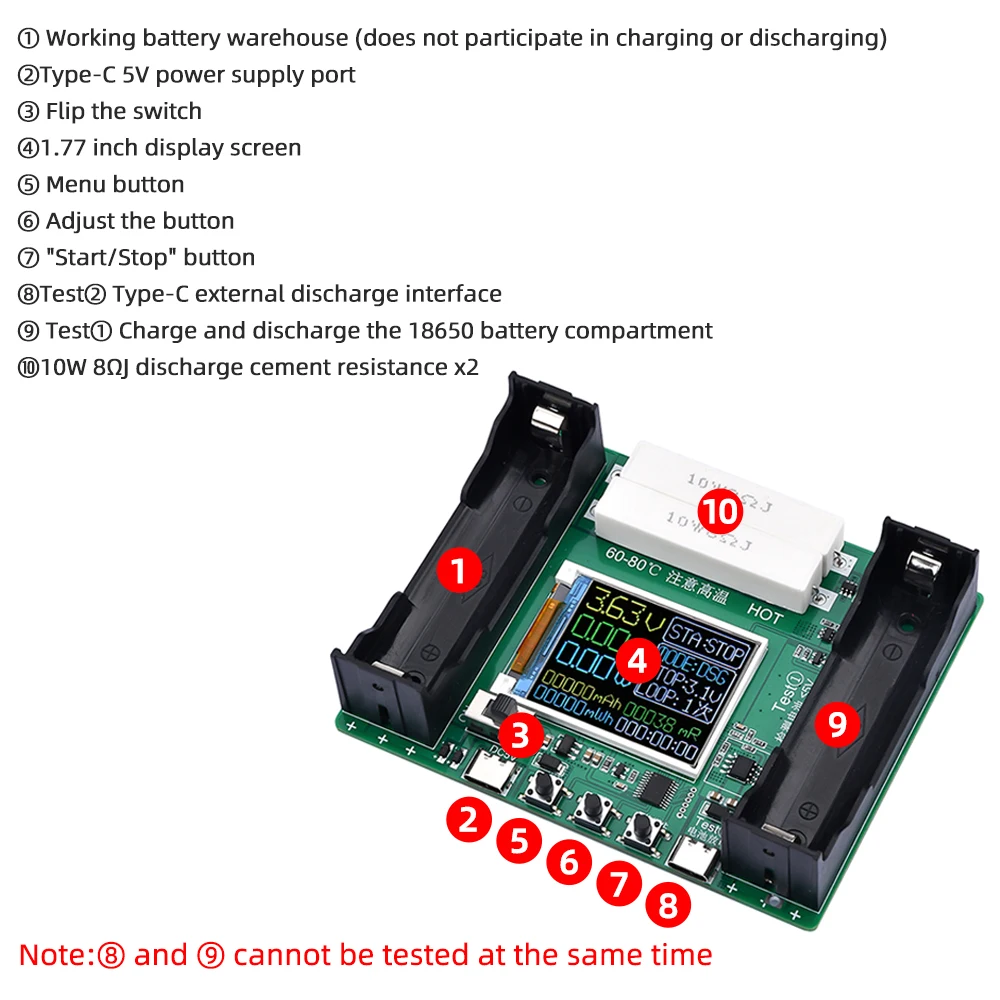

Working power supply: DC5V power supply or 18650 battery (need to bring your own)
Applicable battery: meet the discharge stop voltage of 2.5 ~ 3.5V, 2.8V starting ~ 4.2V fully charged battery is applicable
Power supply interface: Type-C interface, self-prepared power supply line (C port mobile phone line)

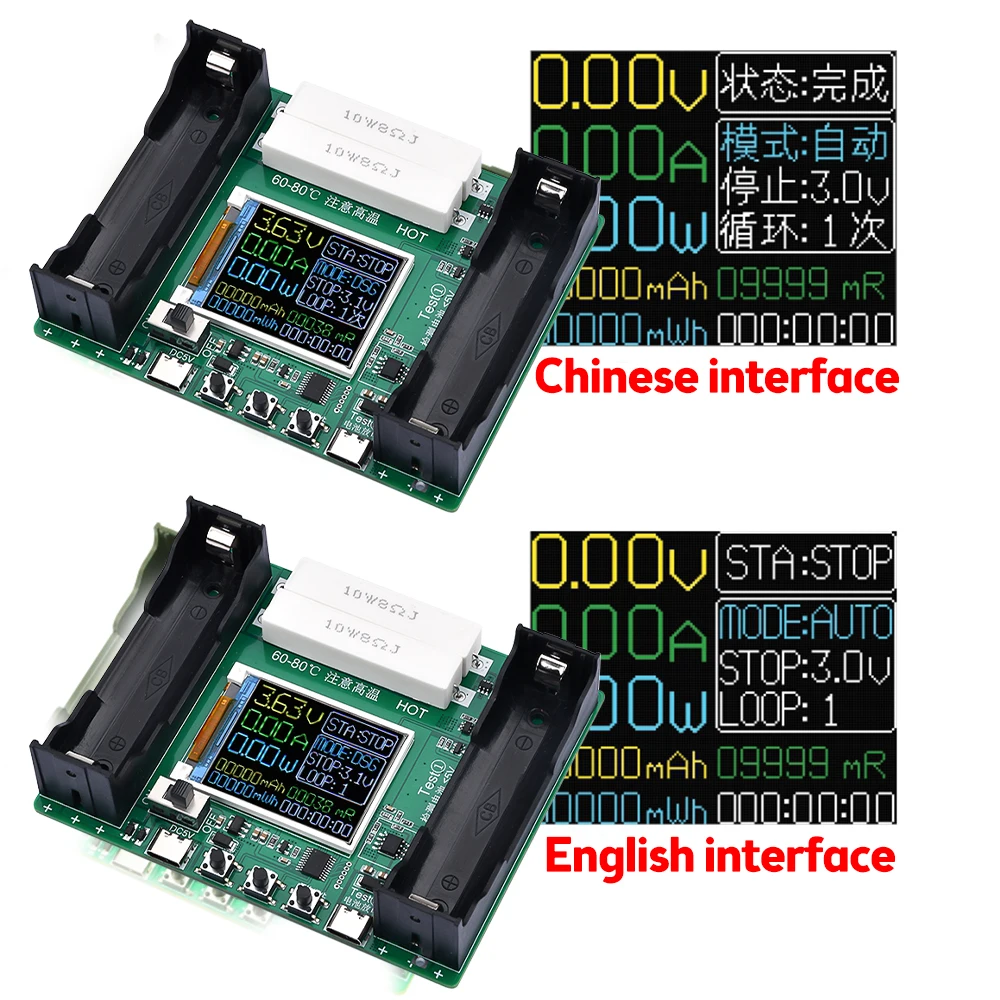

System language: Chinese (default), English
Test quantity: 1 way charging and discharging measurement (only the right battery position)
Internal resistance measurement: support, use DC two-wire method to test internal resistance
Charging function: support, automatically cut off charging when fully charged (does not support lithium iron phosphate battery charging)
Discharge function: support, automatically stop when the condition is reached, the discharge current is not adjustable
Automatic charging and discharging: support, the battery is fully charged when the automatic mode ends
Cycle charge and discharge: support, adjustable from 1 to 9 cycles (only supported by automatic mode)

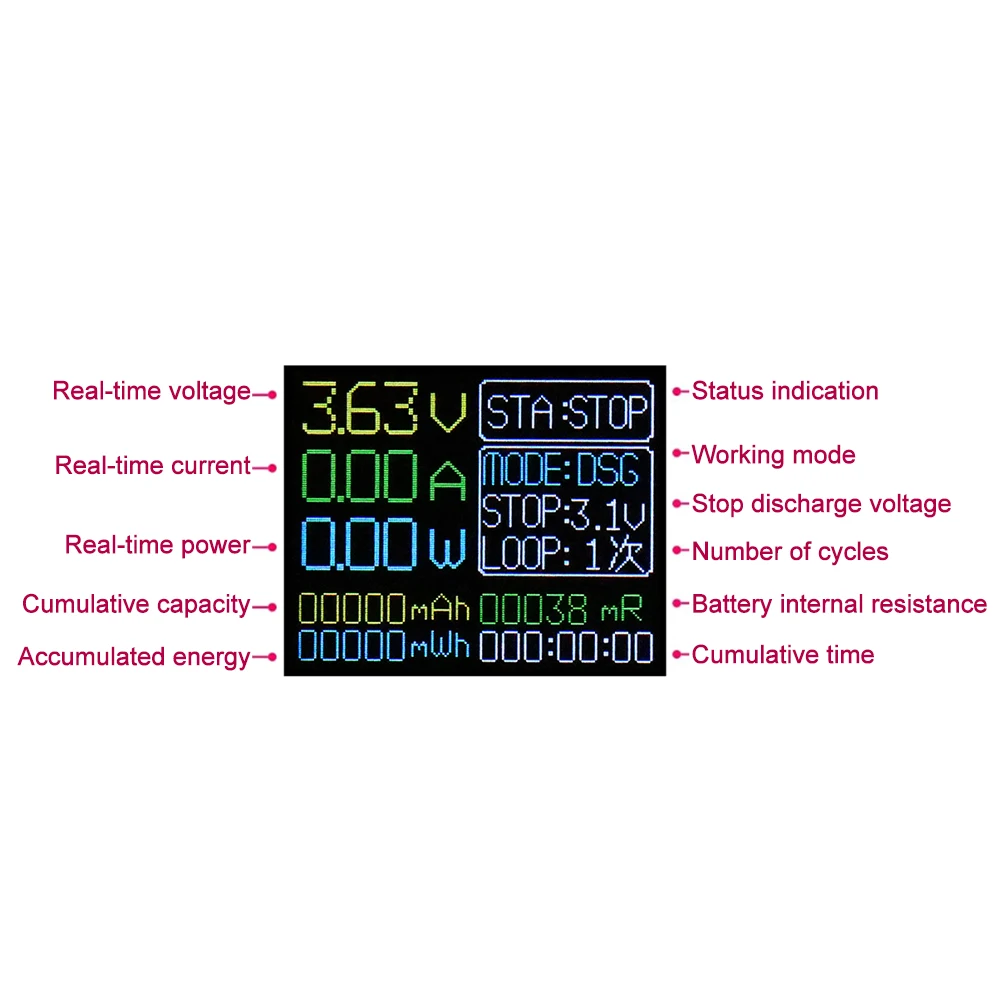

Status prompt: support
Discharge stop voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, a total of 11 levels adjustable
Discharge current: two resistors, the maximum current is about 1A, not adjustable, does not support independent transformation
Charging voltage: controlled by a dedicated battery charging chip, the maximum charge is about 1A, and the full charge voltage is 4.2V
Power-off save: only save the setting parameters, not save the metering data
Product weight: 80g (net weight) 120g (including packaging)

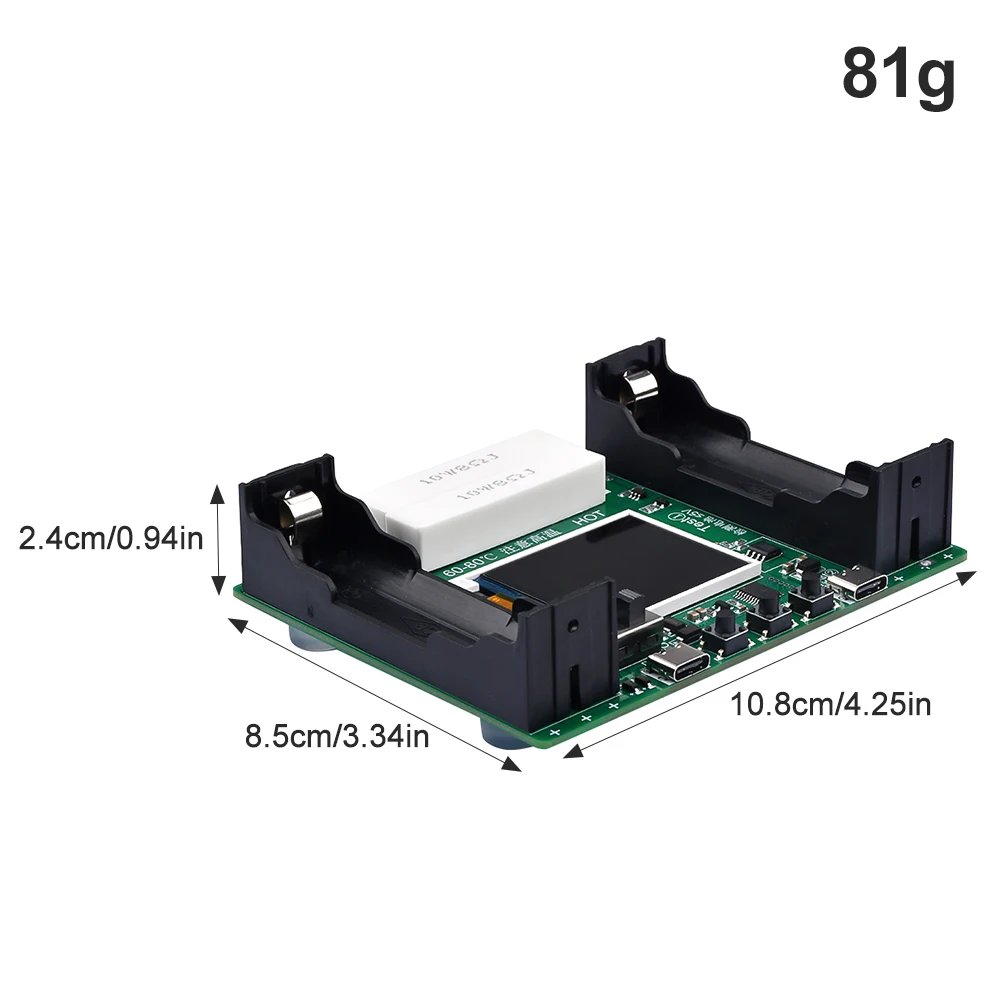

Product size: 110×88×30mm
Package size: 153×100×42mm


Data link:
//www.banber.com/gather/6365d57f9f8cae0007718211.html


The package includes:
18650 battery capacity internal resistance tester X1
