Мини PCI-E к USB 3.0 адаптер расширительная карта MINI PCI Express Dual 19/20pin USB3.0 с SATA питанием на 15 контактов для настольных ПК.

About Description:

Descriptions:
A. NEC main control chip which is based on the USB3.0 Association, also the main control of the third generation 2 port D720202.
B. The only expansion card on the market that can support for LINUX OS.
C. The expansion card uses the capacitance of the solar lure, which greatly ensures the stability of the USB power supply.
D. Our factory origin, strong after-sales technical support can be provided, and the firmware and driver can be updated fastest and earliest.

Features:
- Compliant with PCI-Express Specification Version 2.0
- Compliant with USB 3.0 Superspeed Specification Version 1.0
- Compliance with xHCI specification version 1.0
- Maximum transfer rate is up to 5Gbps, much higher than USB2.0's 480Mbs, up to 10 times
- Backward compatible with USB2.0, USB1.1, USB1.0
- Transmission rate: 5000/480/12/1.5Mbps
- Built-in SATA power-on interface
- Support USB hot swapping

Specifications:

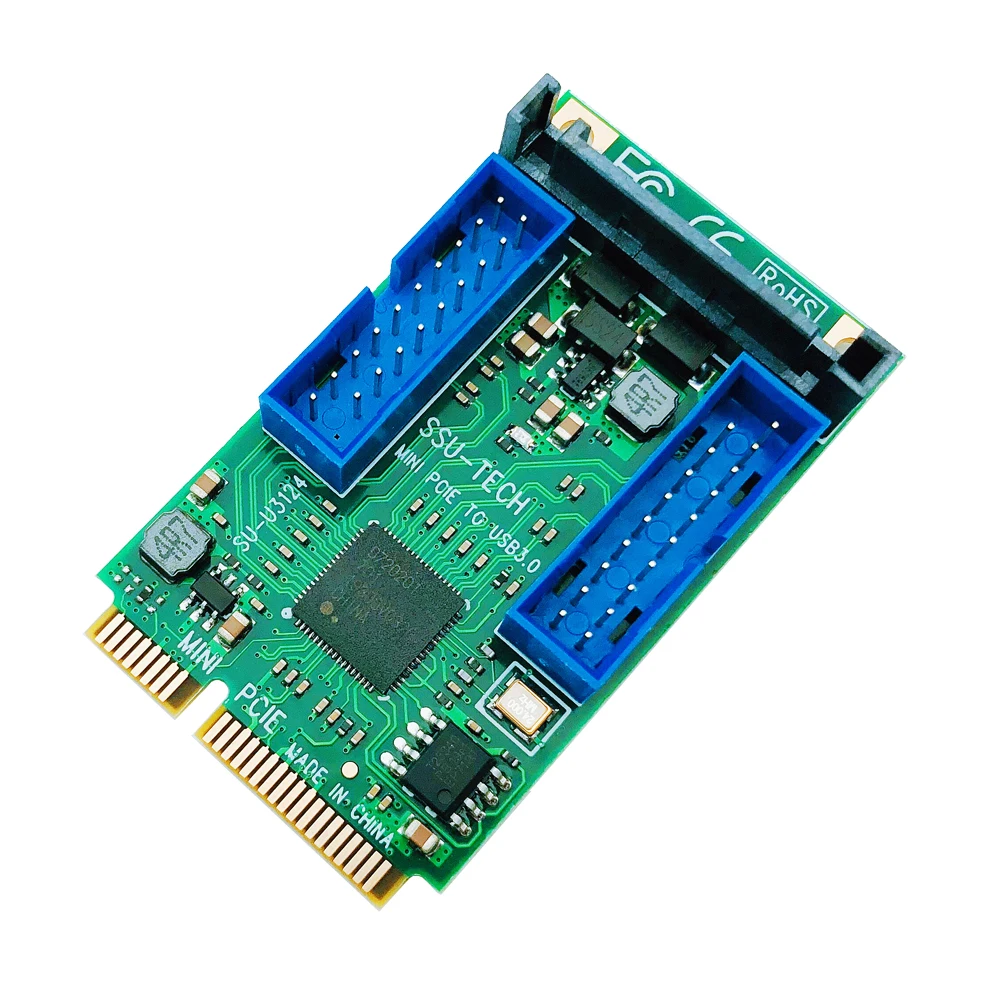

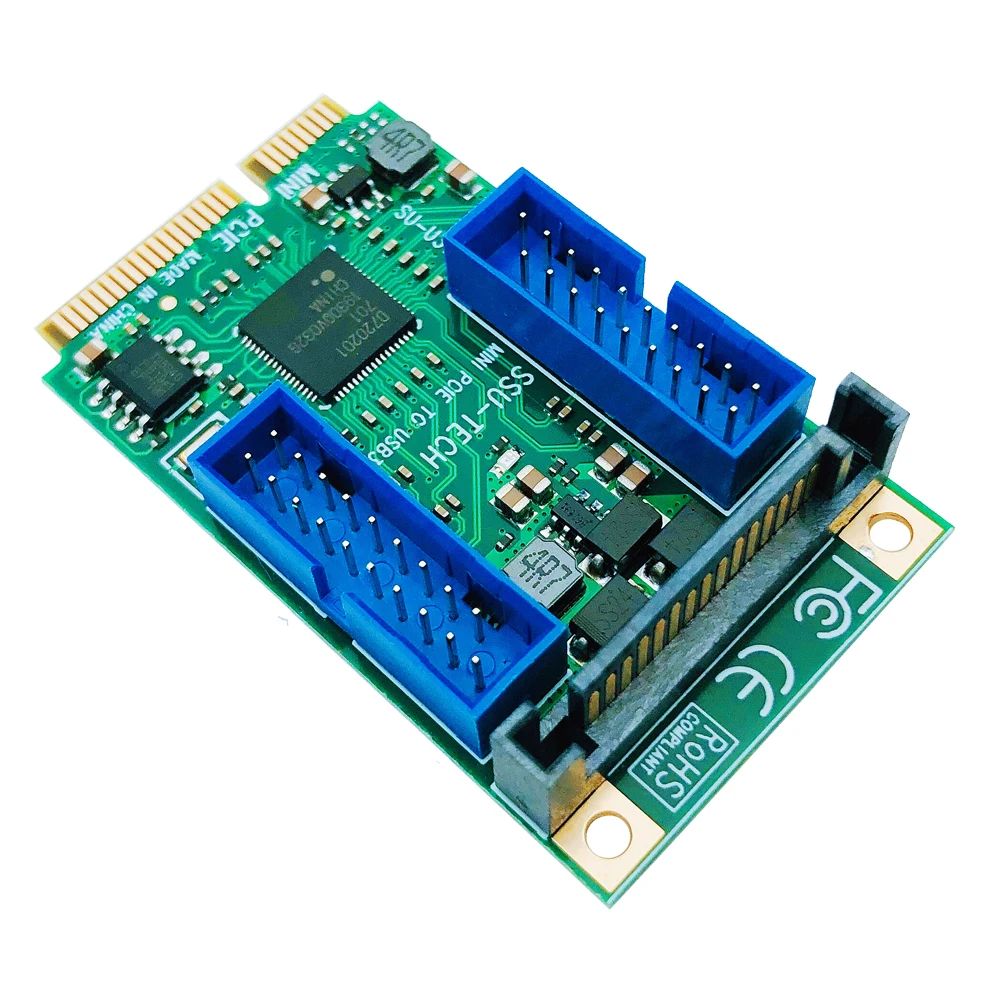

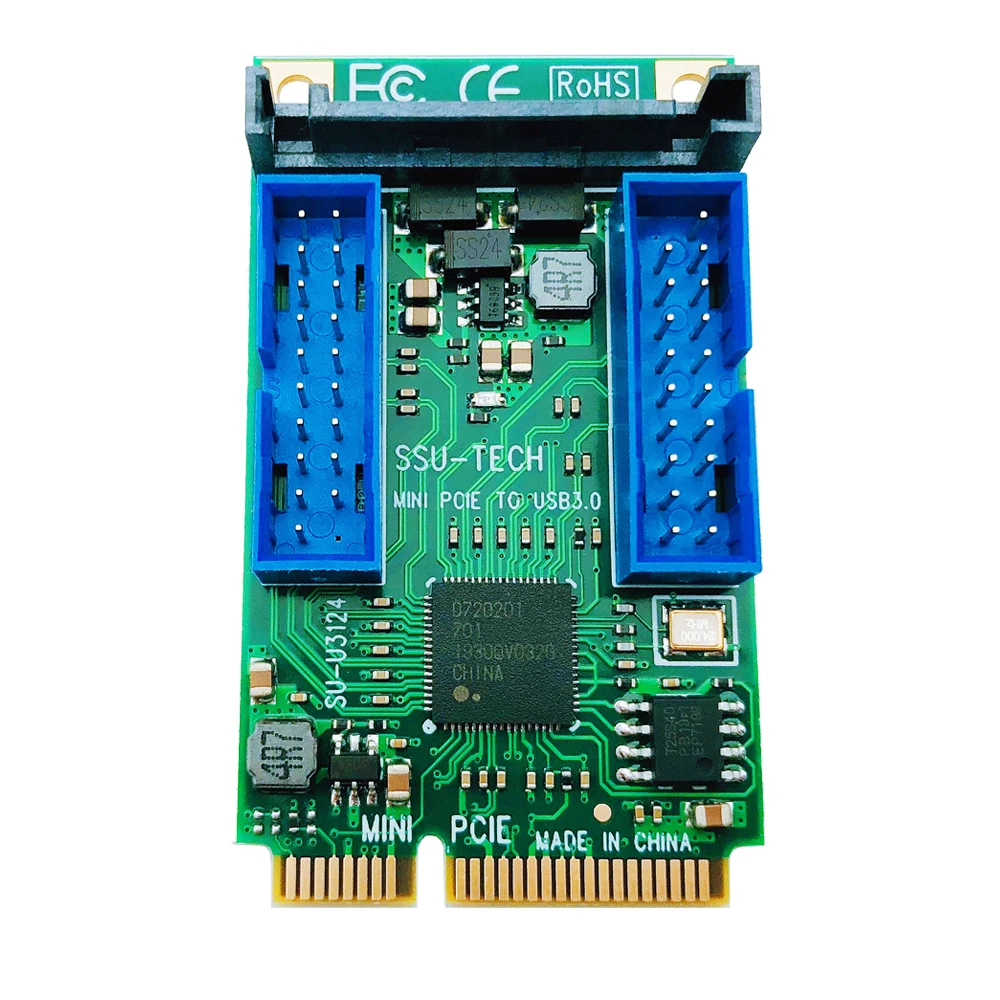

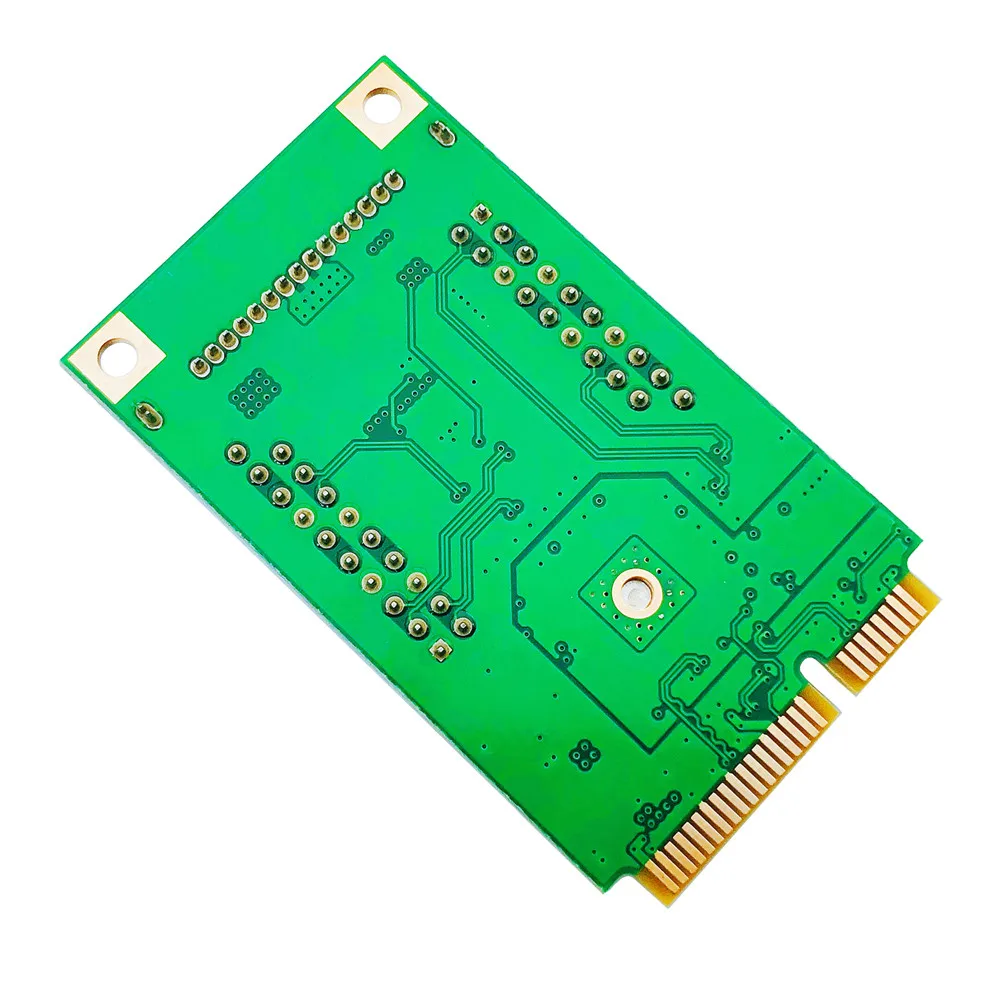

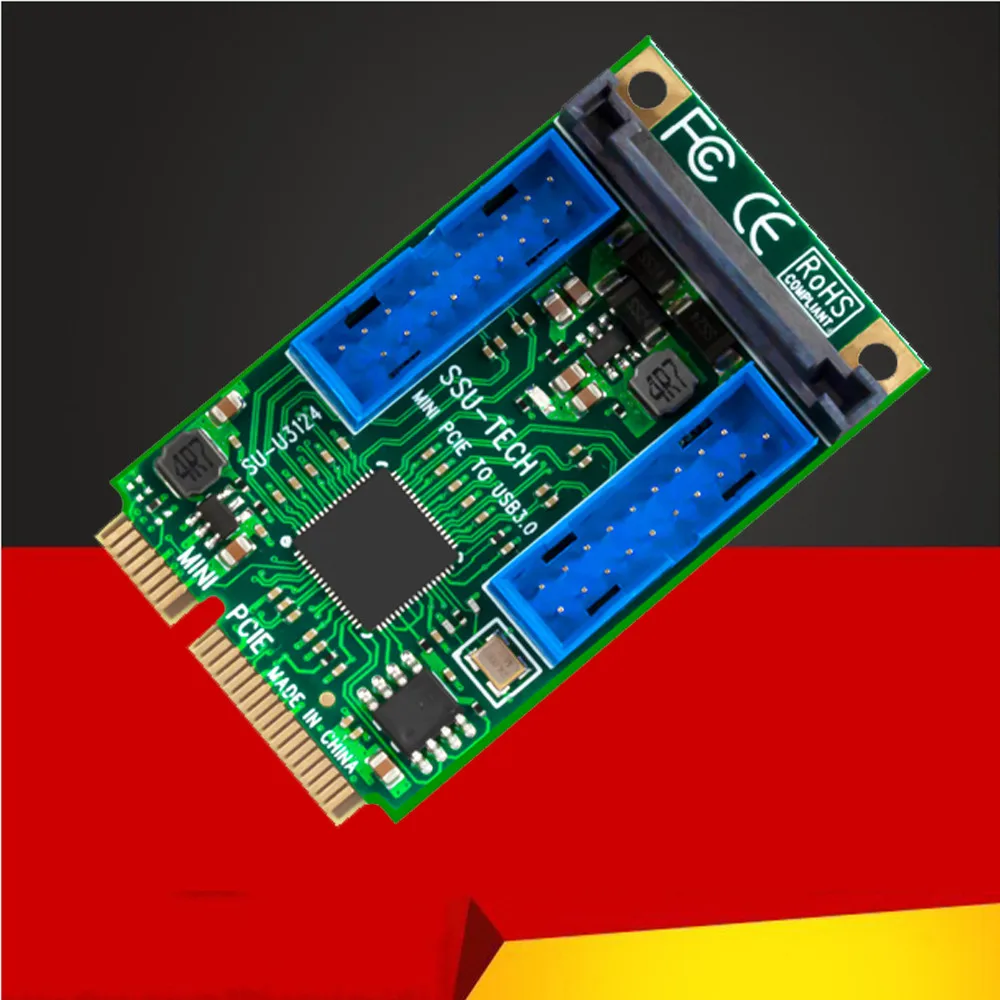

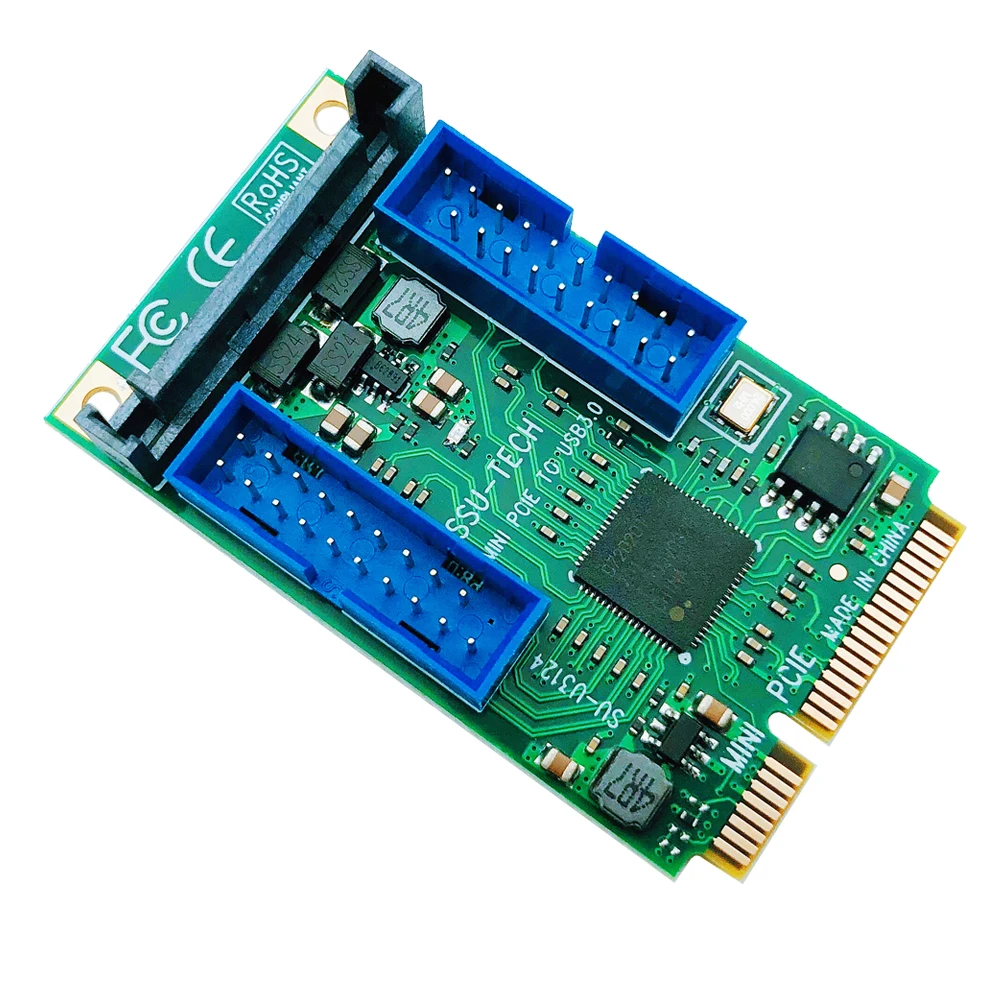

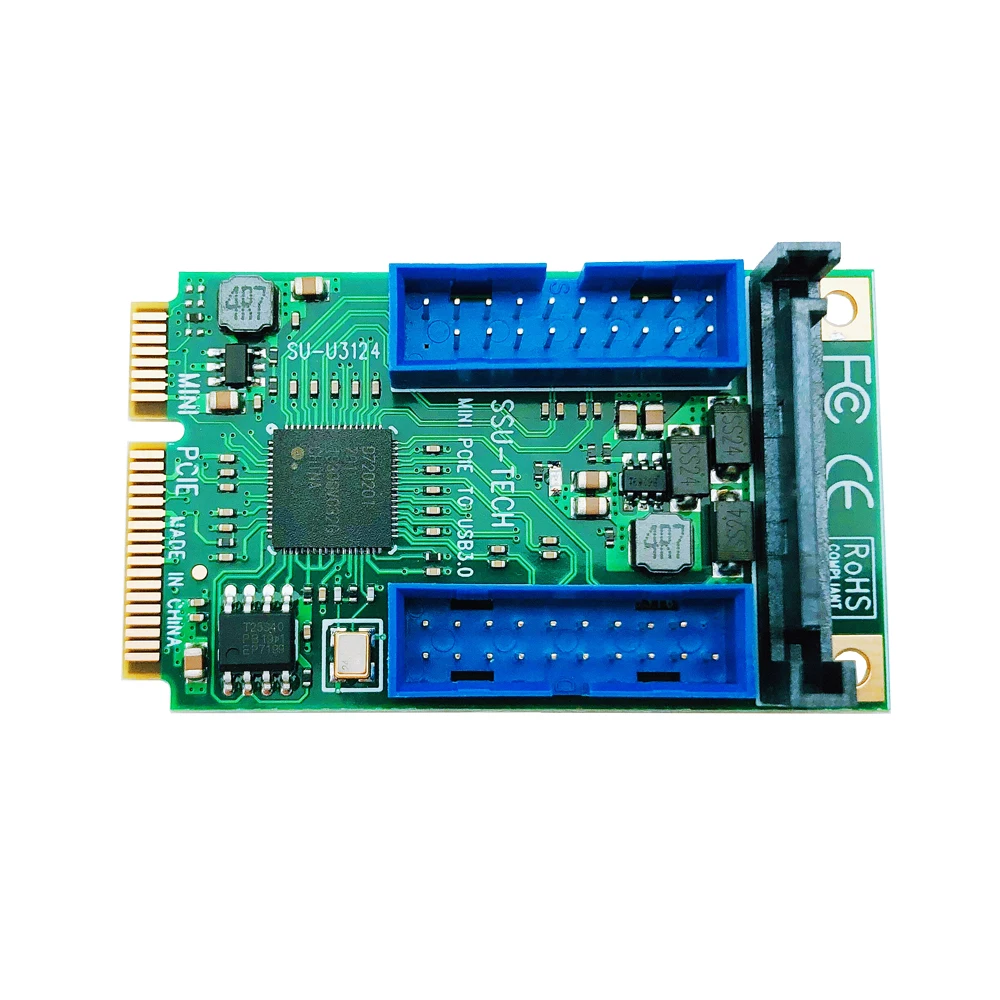

Product Name: MINI PCI-E to Dual USB 3.0 19Pin expansion card
Master chip: Renesas/NEC UPD720202
Applicable interface: Mini PCI-E interface
Product interface: USB 3.0 19/20 Pin x 2, 15Pin SATA power port x 1
Product size: 29.7mm*50.7*10mm/1.17*2.00*0.39"
Product weight: 37g
Supported OS: for Windows XP/2003/Vista, for Win7/Win8/Win10, for Linux, etc.

Notes:
1. Because Mini PCI-E does not have 5V power supply, it can't directly supply USB power, so you must plug in SATA power cable to work properly.
2. This expansion card can only be plugged into the MINI PC-E interface and cannot be used for the MSATA interface. Please confirm the interface before purchasing, otherwise it will not work.
3. Because NEC merged with Renesas Electronics in the first half of 2010 and Renesas Electronics has a large shareholding, so now the drive and LOGO are changed to RENESAS. Please be aware!
4. CHINA and JAPAN are printed on the chip. This just means the chip is package in China or Japan. The chip inside is still produced by JAPAN. The performance is exactly the same, no difference.
5. USB 3.0 is a double row with a total of 20 Pin, one of which has been pulled out of the needle to prevent staying, so it is also called 19 Pin, please be sure to see the precautions when buying!
