Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products

Standard CM4 Socket, With Multiple Peripheral Interfaces, Suitable For Narrow Application Environment

CM4 SOCKET

suitable for all variants of Compute Module 4

CONNECTOR

Raspberry Pi 40PIN GPIO interface × 1

USB

USB 2.0 Type A interface × 1

CAMERA

MIPI CSI-2 port × 1 (15pin 1.0mm FPC connector)

STORAGE

Micro SD card socket for Compute Module 4 Lite (without eMMC) variants

POWER INPUT

5V

DIMENSIONS

55 × 40mm

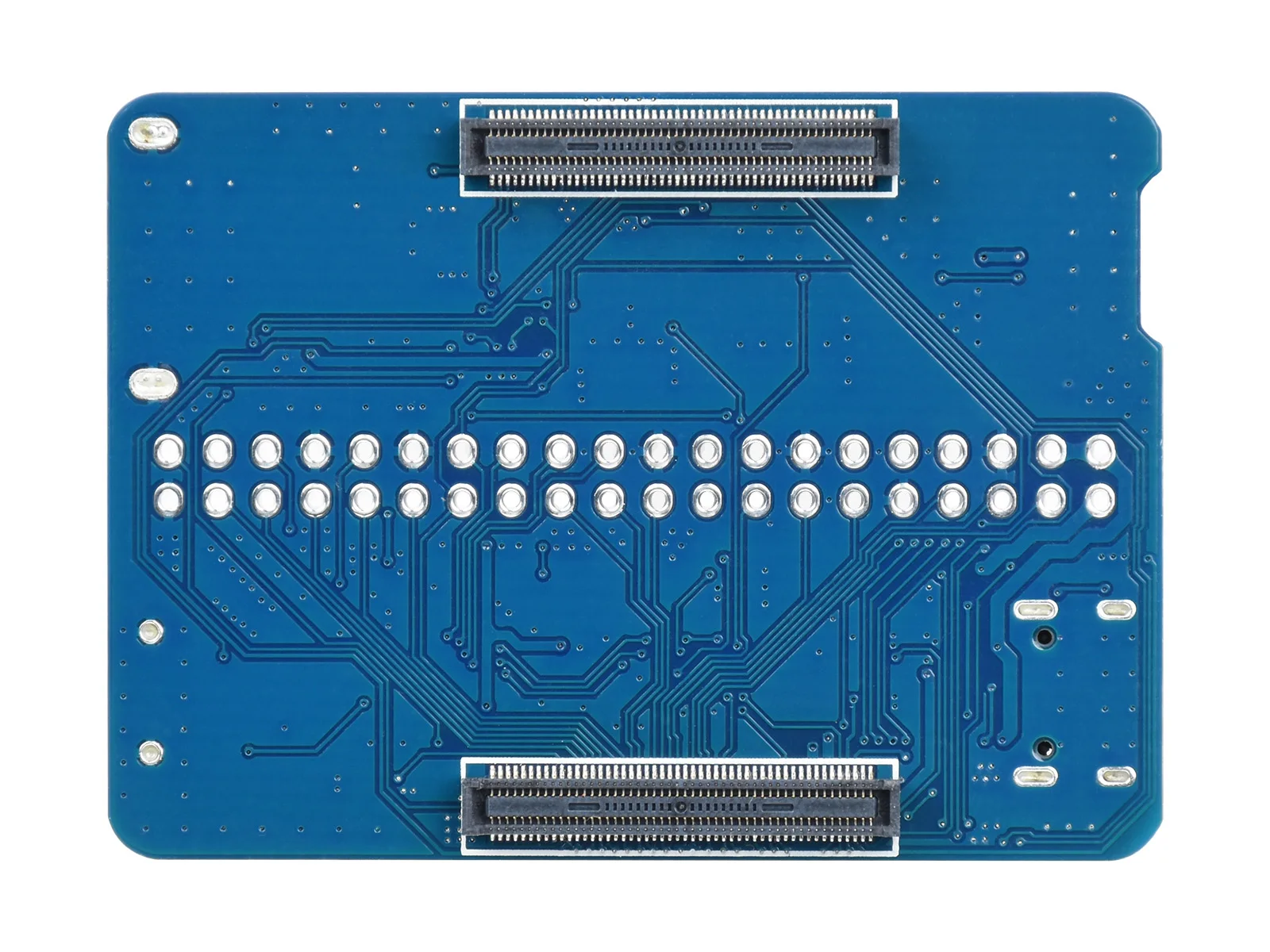

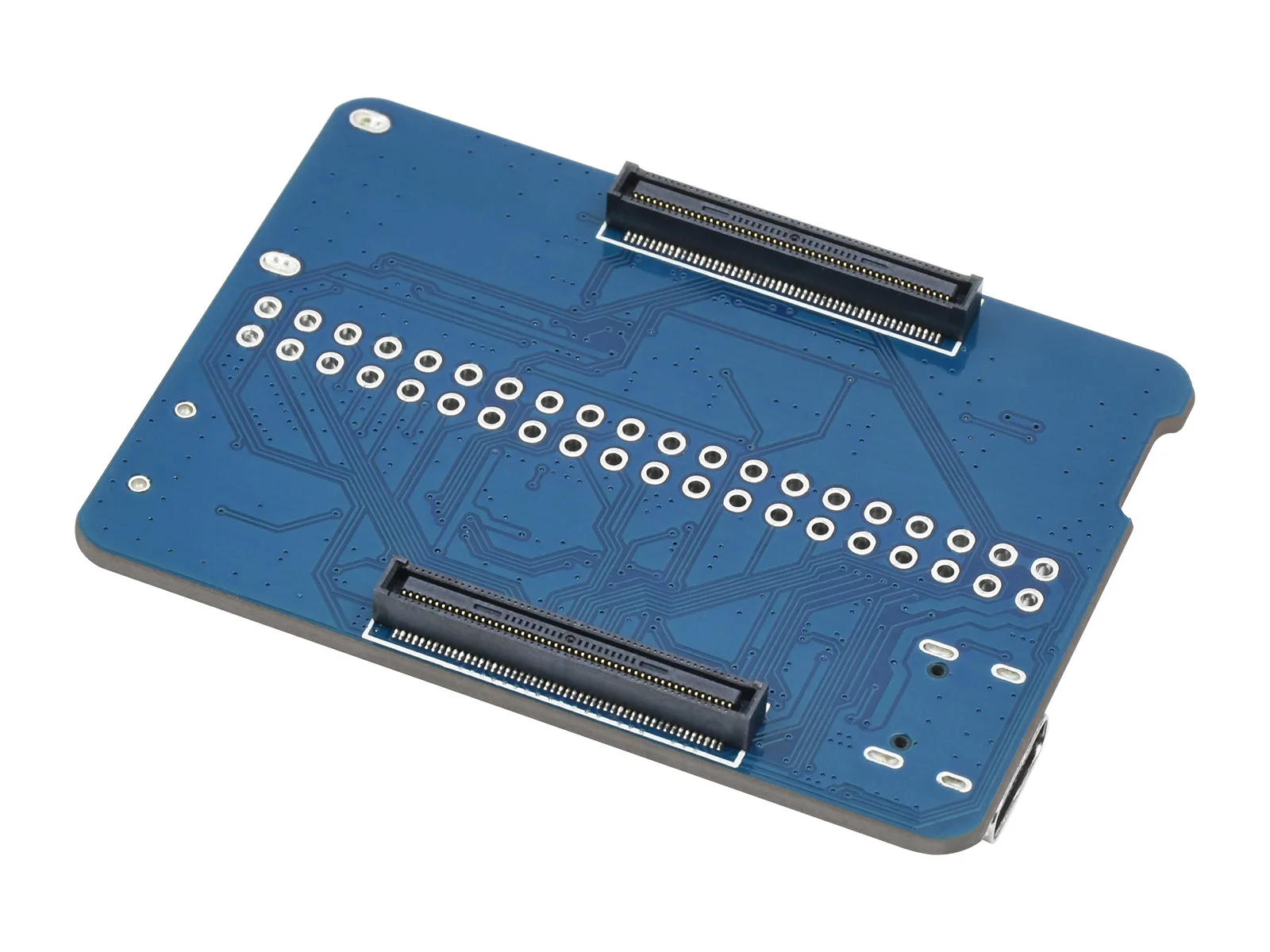

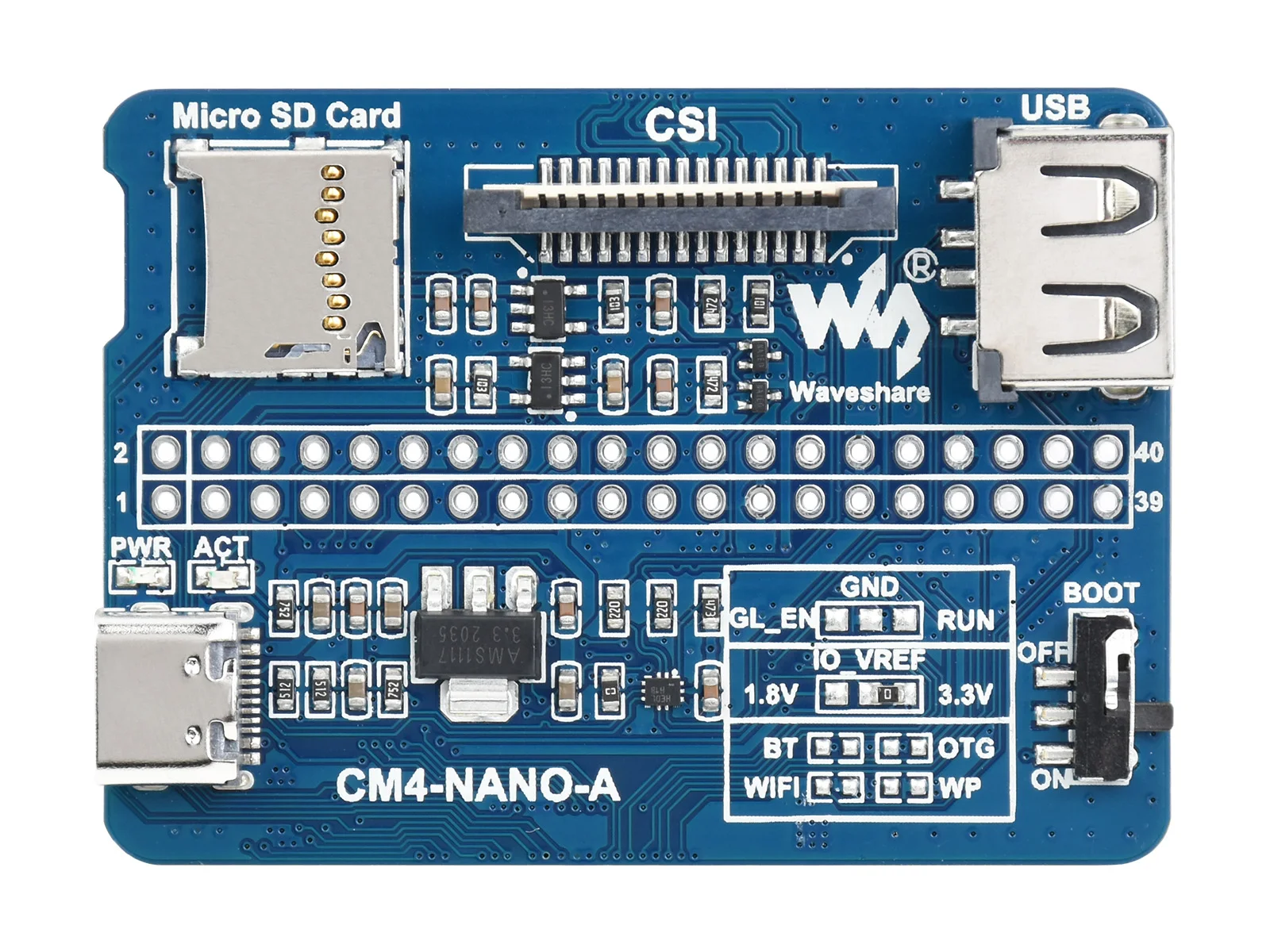

CM4 socket
suitable for all variants of Compute Module 4

Power supply / Programming
5V power supply, or used for eMMC burning

Micro SD card slot
for connecting a Micro SD card with pre-burnt image (Lite variant ONLY)

CSI interface
1 × MIPI CSI camera interface

USB2.0 interface
for connecting sorts of USB devices

40PIN GPIO interface
suitable for connecting to various HAT modules

PWR indicator
CM4 power status

ACT indicator
CM4 working status

AMS1117-3.3

BOOT button
ON: Switch USB to Type C interface, will enter download mode when powered on (configured as a large-capacity disk through RPI boot)
OFF: Switch USB to Type A interface, will not enter download mode when powered on (booted from eMMC or Micro SD card)

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

PACKAGE CONTENT

Weight: 0.014 kg

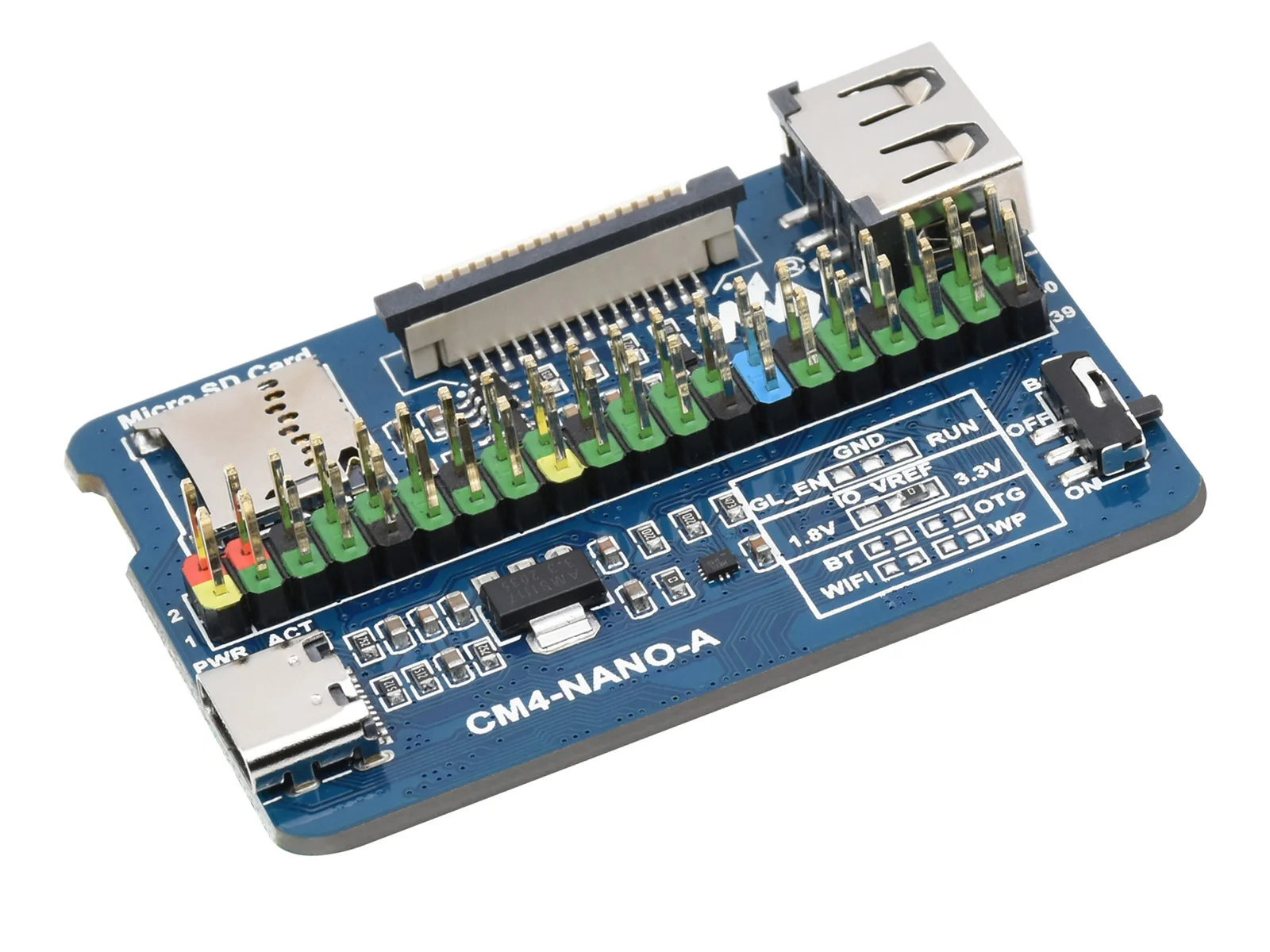

CM4-NANO-A x1

2*20PIN color straight pin x1
