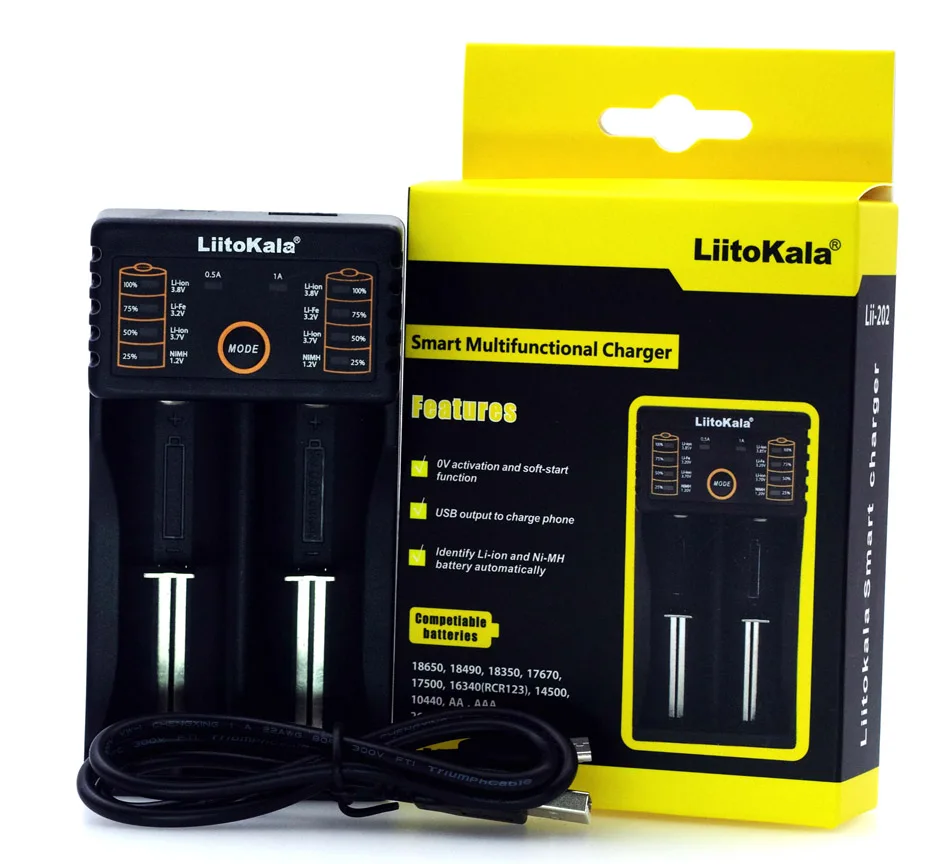

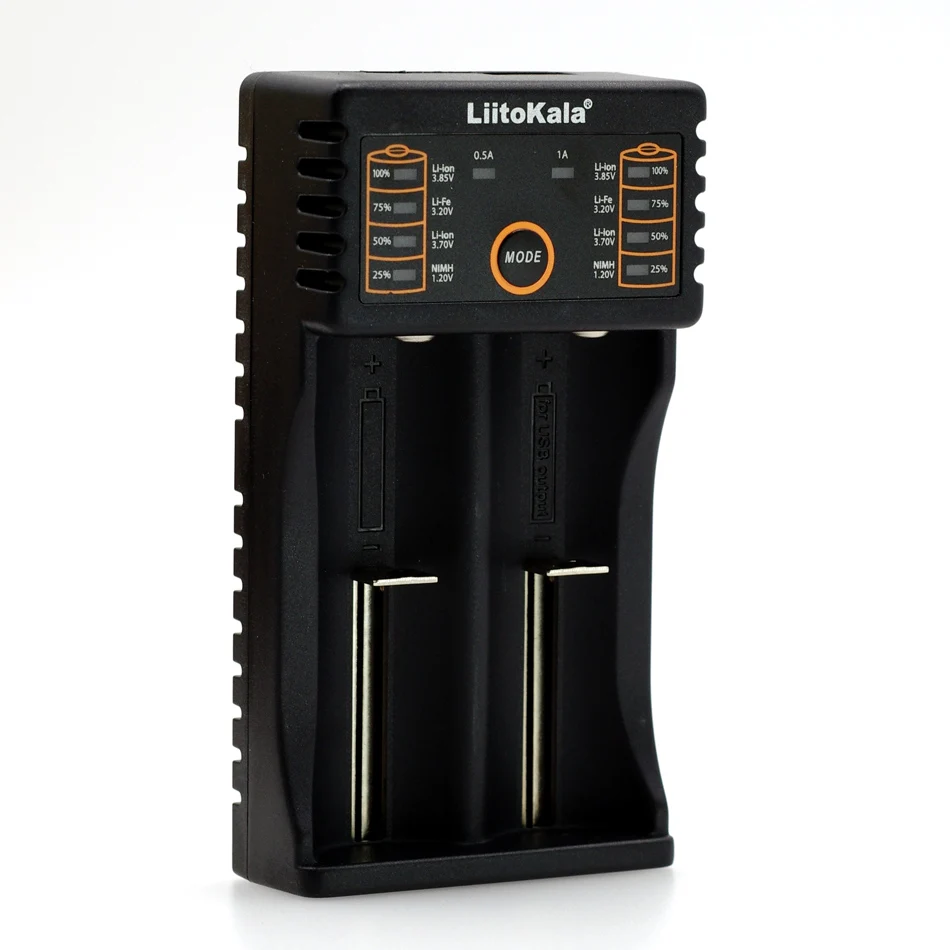

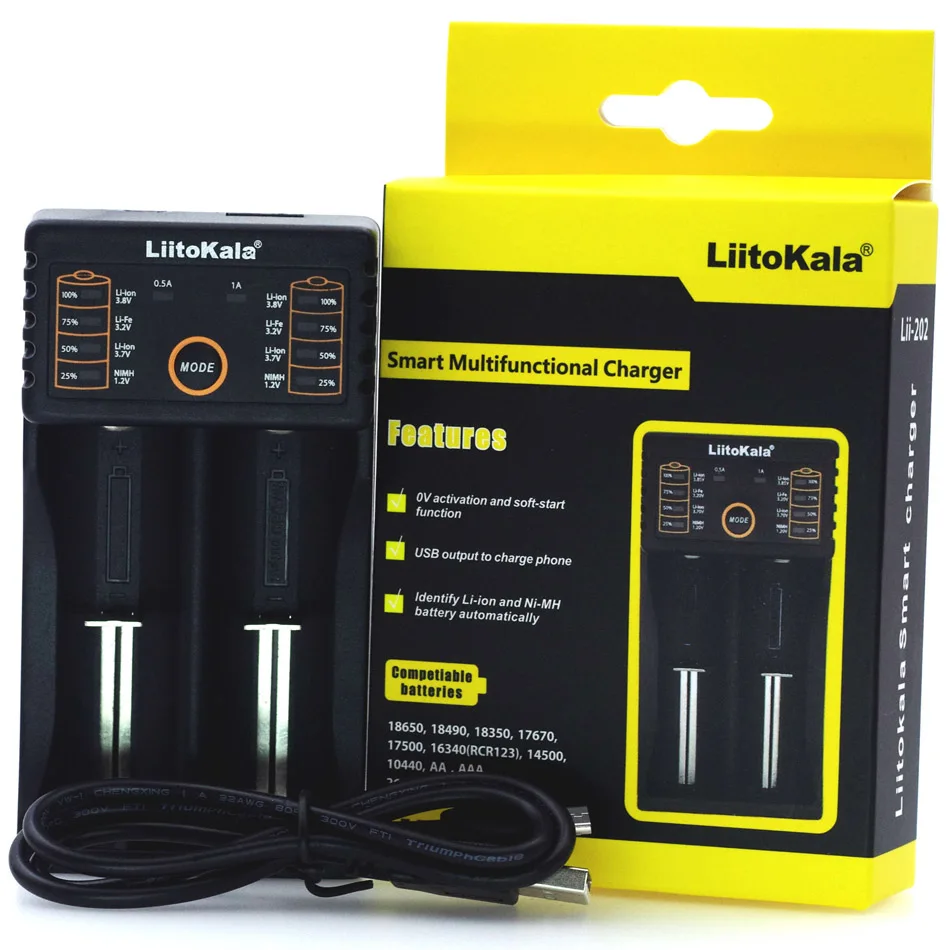

1.Lii202 Charger Shipping List: 202 Charger + USB Cable + Instruction Manual

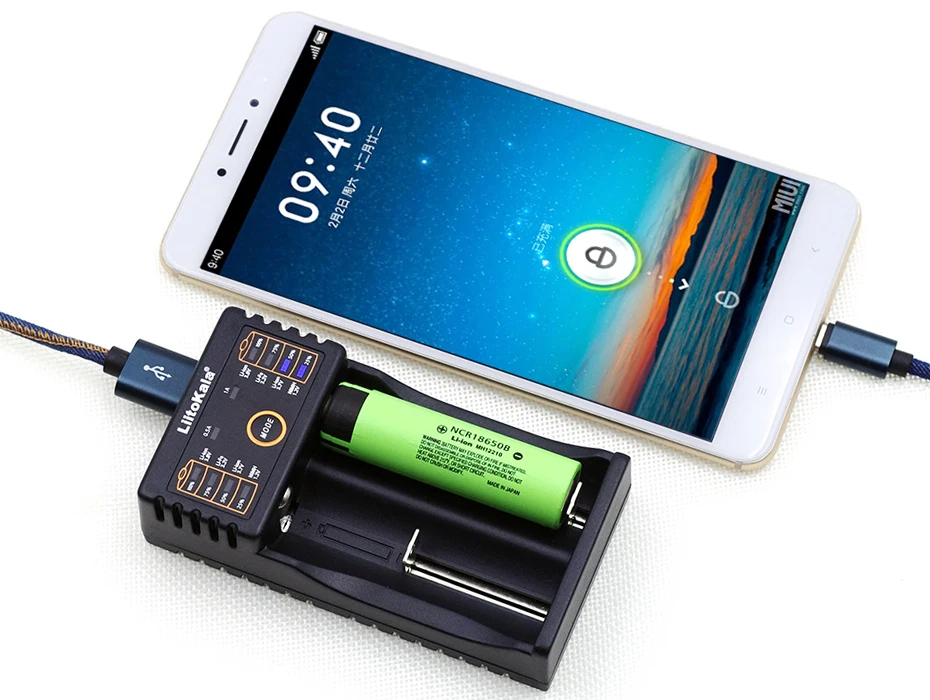

202 This charger is designed for portable, flexible and multi types of battery. It can detect the battery type and charge the battery automatically under your selected charging current. Built-in LED indicators to display the charging status and 5V/100mAh USB output function

Features

--The charger is connected to the 5V power supply,

--and the LED is fully illuminated at any time;

--LED step by step shows the battery charging status

is 25%, 50%, 75%, 100%;

--Charger "MODE" button, you can choose to change

the battery charging current to 500mA or 1000mA

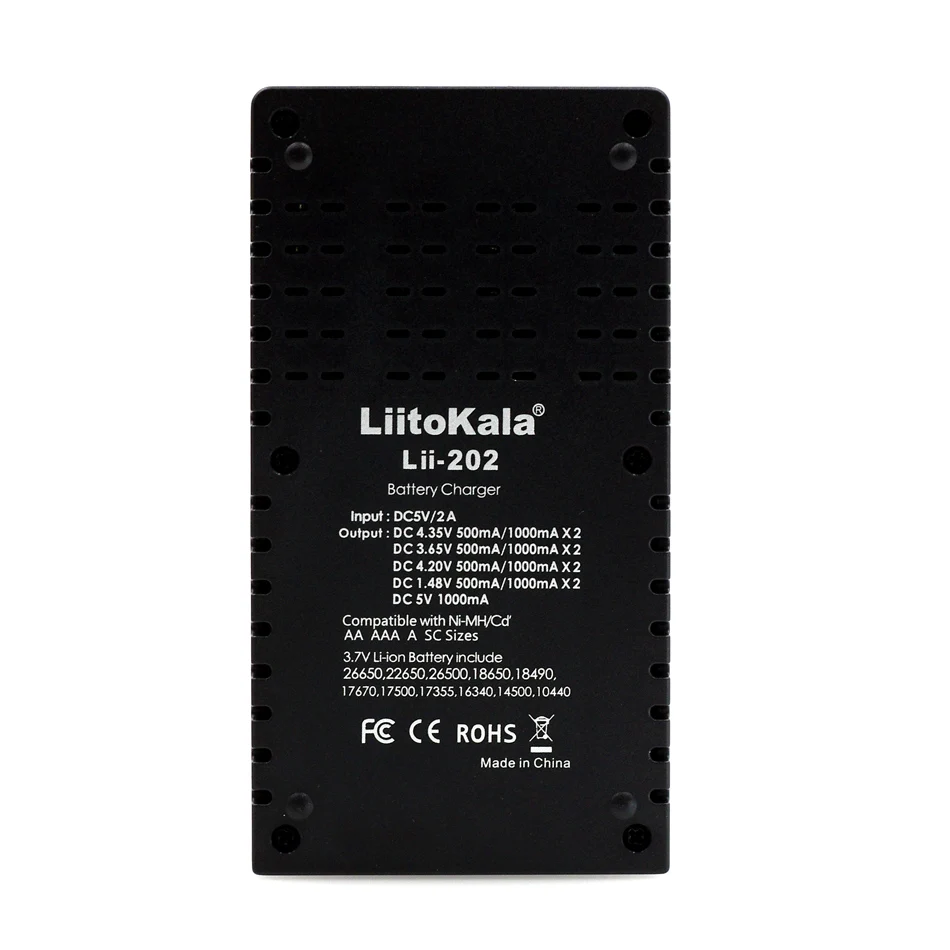

Specification

nput: DC 5V/2A

Output: DC 4.35V 500mA/1000mA*2

DC 3.65V 500mA/1000mA*2

DC 4.20V 500mA/1000mA*2

DC 1.48V 500mA/1000mA*2

DC 5V 1000mA

Compatible with Ni-MH/Cd  AA AAA A SC Sizes

3.7V Li-ion Battery include 26650,22650,26500,18650,18490,17670,17500,17355,16340,14500,10440

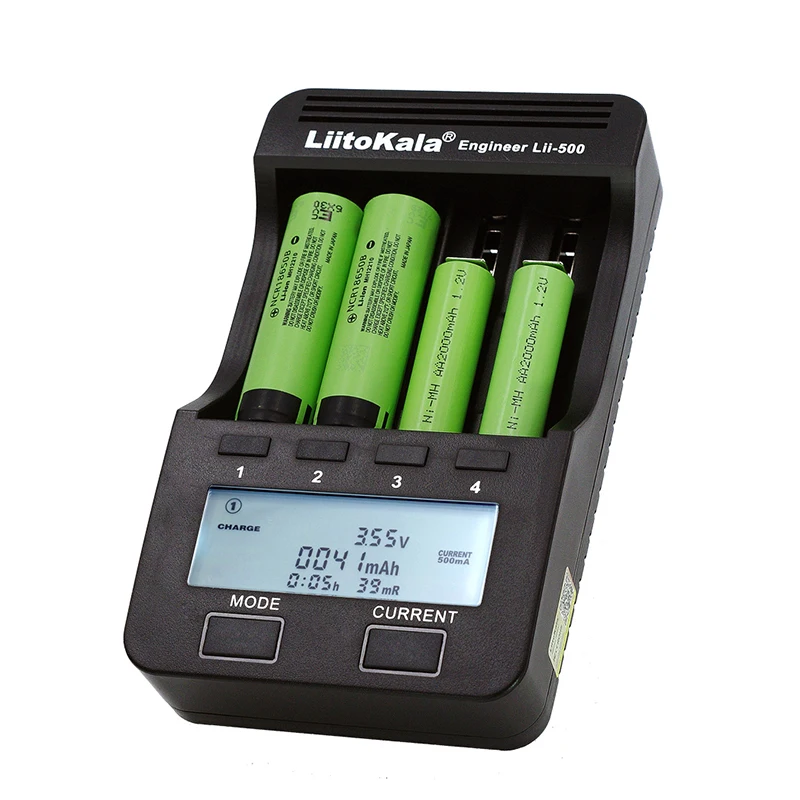

LII-500  High-end smart charger

- Independent LCD display;

- 4 channels work independently;

- Battery capacity / internal resistance test;

- Multiple intelligent protections;

-CHARGE/FAST TEST/NOR TEST three intelligent modes;

NOR TEST (normal capacity detection mode)

4-channel independent fast detection,

regardless of lithium ion/NiMH battery.

Enter NOR TEST----Charging batteries---- Battery discharge----Full again/End

Fill the battery first, then discharge the battery and record the

discharge capacity to detect the battery capacity, then fully

charge the battery.

FAST TEST (fast capacity detection mode)

4-channel independent fast detection,

regardless of lithium ion/NiMH battery.

Enter FAST TEST----Battery discharge---- Charging batteries---- Full again/End

Is to discharge the battery first, then fill the battery and

record the charge, so as to detect the battery capacity;

The charging current is 300mA/500mA, and the discharge current defaults to 250mA;

The charging current is 700mA/1000mA, and the discharge current defaults to 500mA;

Charger mode operation display.

Fasttest mode operation display.

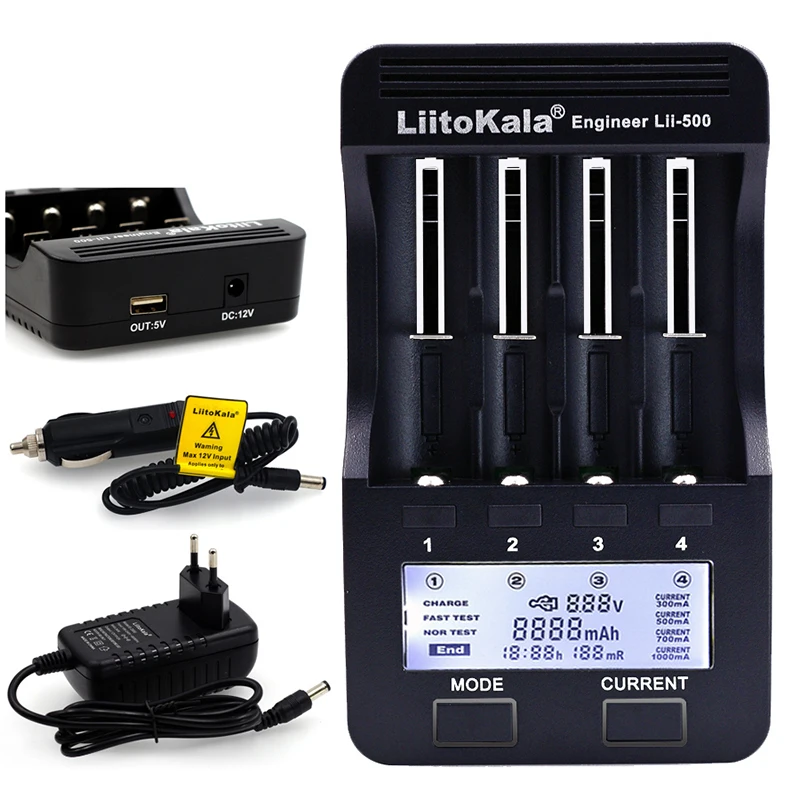

Lii-500 turn on the power display.

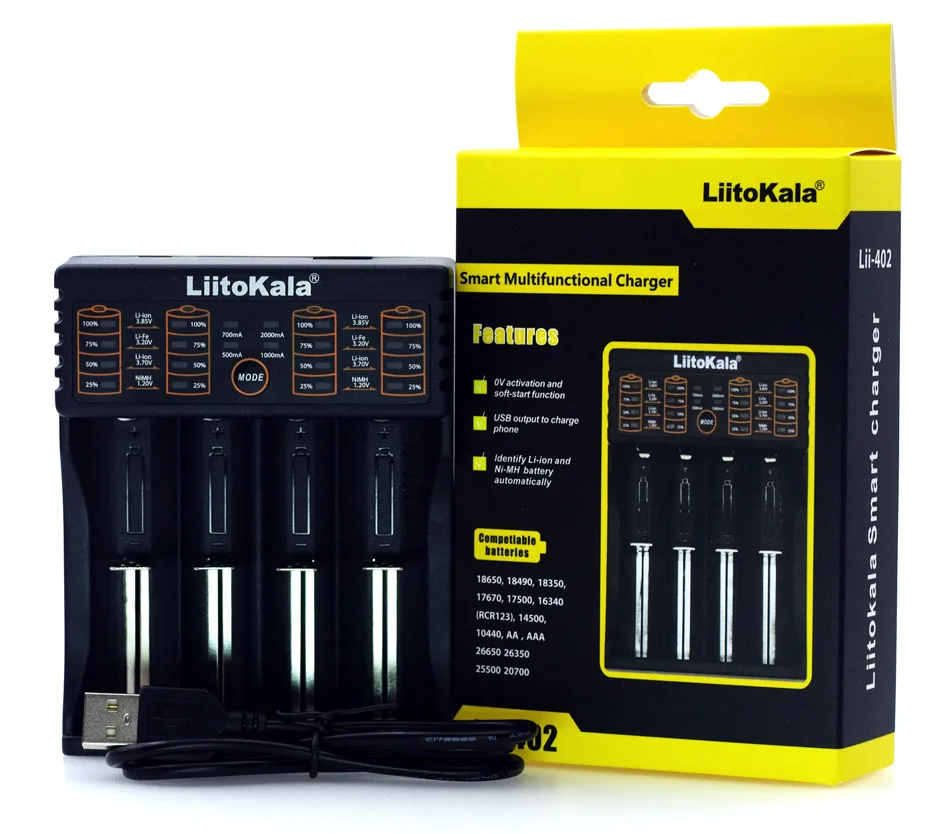

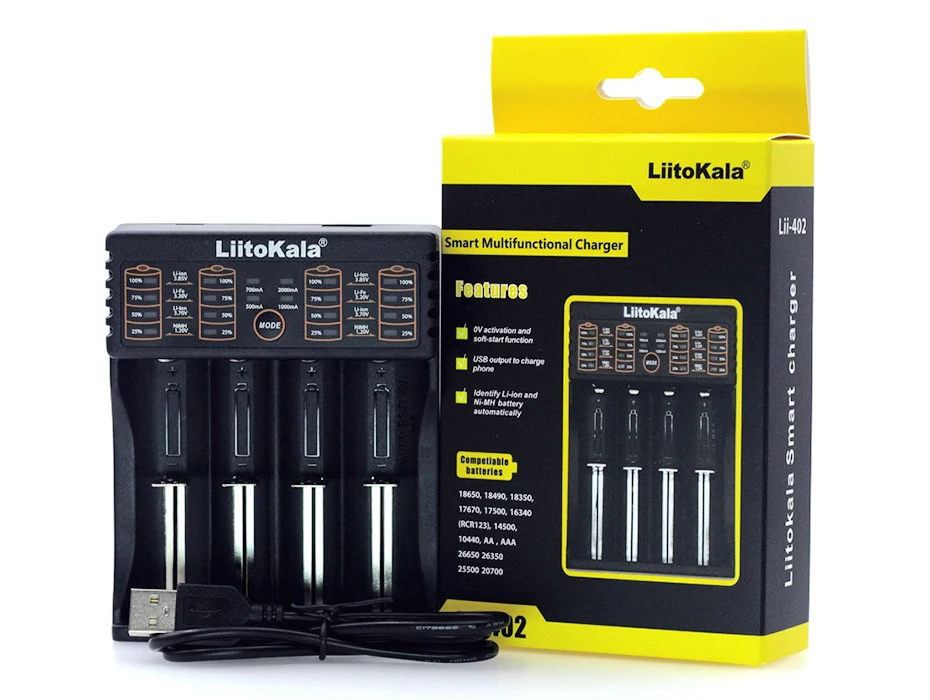

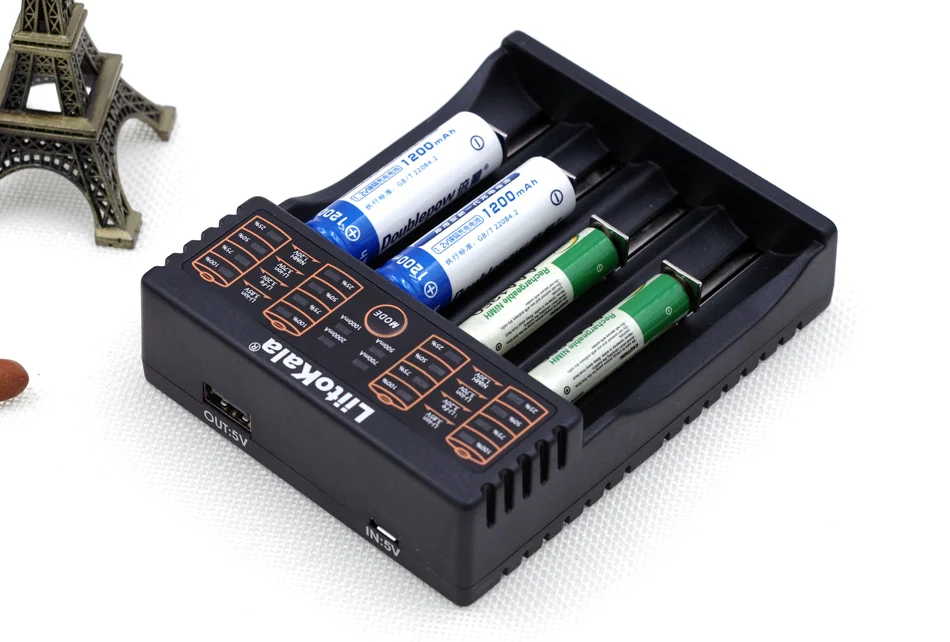

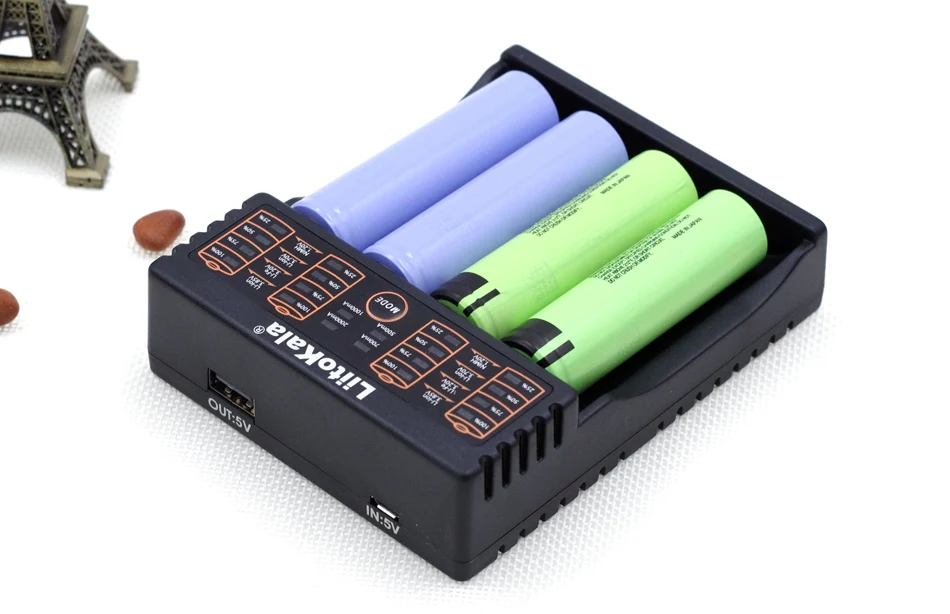

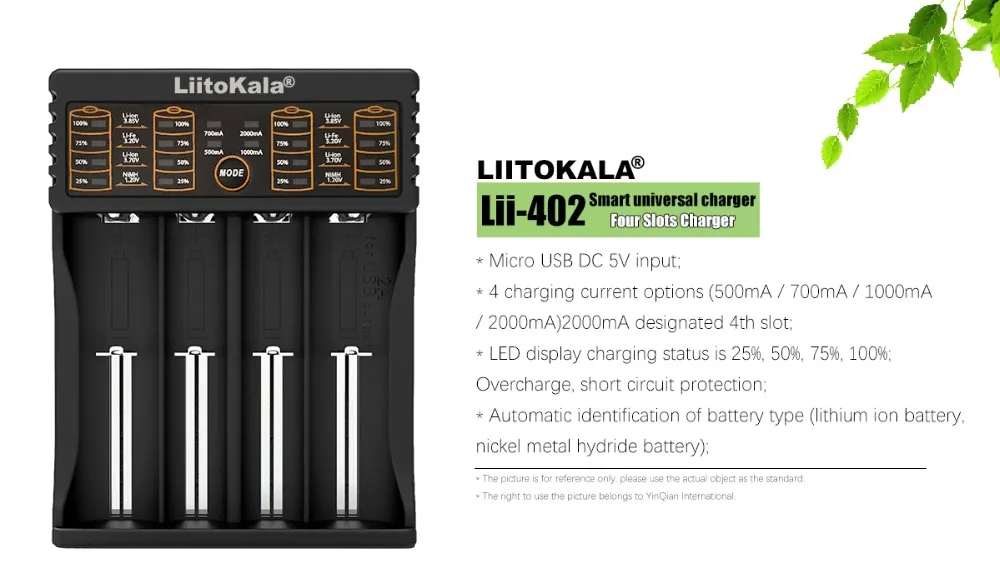

LII-402  Smart universal charger

Features

- Micro USB DC 5V input;

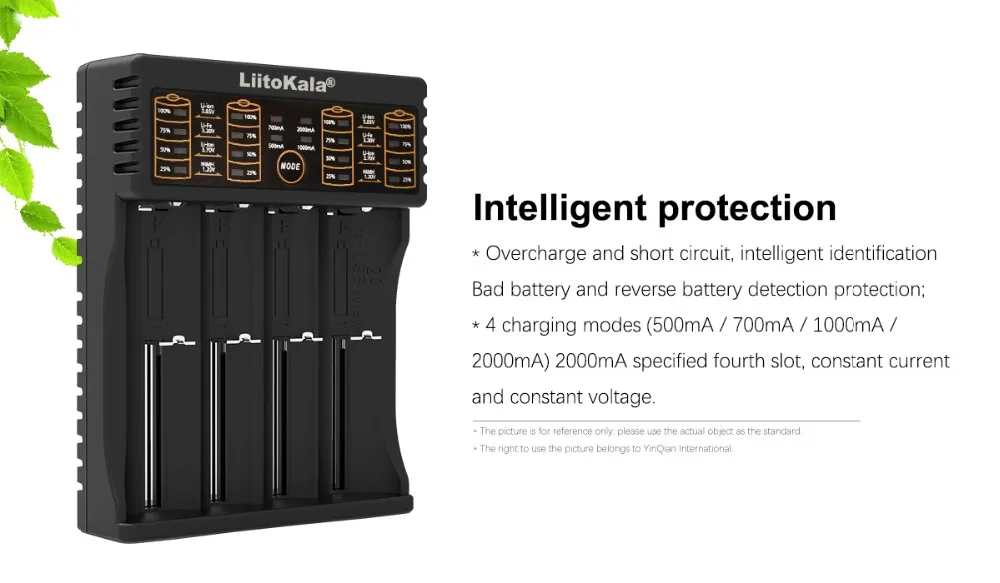

- 4 charging current options (500mA / 700mA / 1000mA  / 2000mA)2000mA designated 4th slot;

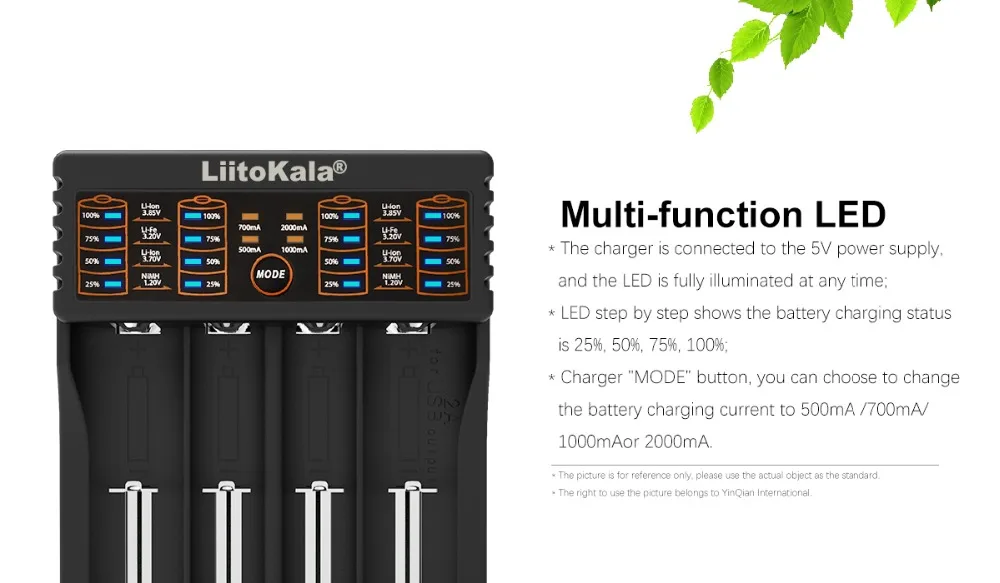

- LED display charging status is 25%, 50%, 75%, 100%; Overcharge, short circuit protection;

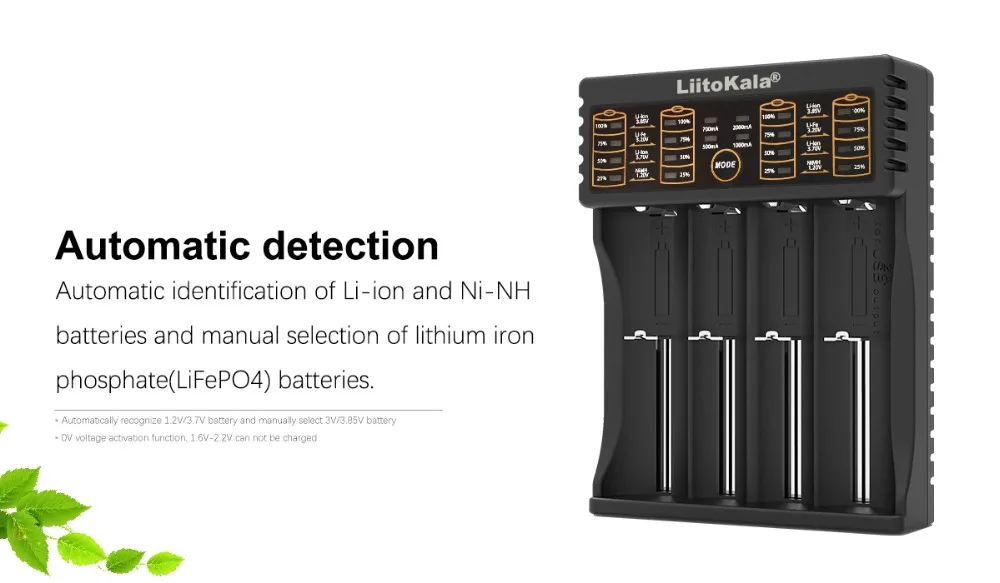

- Automatic identification of battery type (lithium ion battery, nickel metal hydride battery);

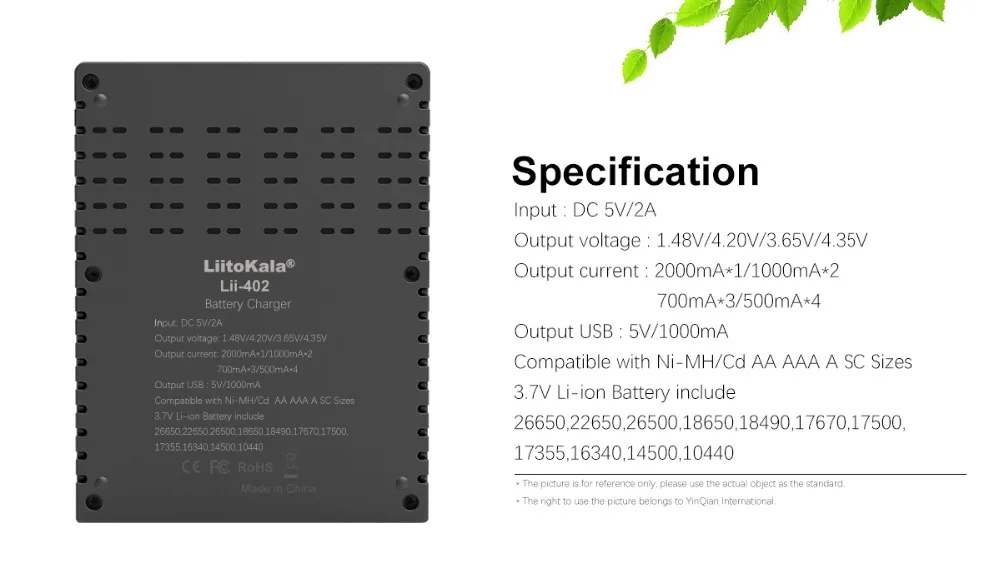

Specification

Input : DC 5V/2A

Output voltage : 1.48V/4.20V/3.65V/4.35V

Output current : 2000mA*1/1000mA*2     700mA*3/500mA*4

Output USB : 5V/1000mA

Compatible with Ni-MH/Cd AA AAA A SC Sizes

3.7V Li-ion Battery include  26650,22650,26500,18650,18490,17670,17500,  17355,16340,14500,10440
