MAXSUN Computer Set MS-B560M + Intel CPU - I3 10105 LGA1200 New but without cooler RAM DDR4 Mainboard Combo |

MAXSUN Computer Set MS-B560M + Intel CPU - I3 10105 LGA1200 New but without cooler RAM DDR4 Mainboard Combo |

MAXSUN Computer Set MS-B560M + Intel CPU - I3 10105 LGA1200 New but without cooler RAM DDR4 Mainboard Combo

The CR2032 battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom

Basic specifications

*Plate type: M-ATX

*Chipset: Intel B560 chipset

*CPU support: Intel tenth generation, eleventh generation Core (LGA1200)

*Memory support: Dual channel DDR4

*Network card chip: Gigabit network card enhanced filtering

*Integrated graphics: Depends on the CPU

Extended support:

*Disk interface: 3 SATA3.0, 1 PCIe 4.0 X4 processor directly connected to M.2 interface (2280 specification),

* Graphics slot: 1 PCIe 4.0 X16 high-speed graphics slot

*Other slots: 1 PCI4 3.0 X1 slot

I/O interface

*USB interface: 2 USB2.0, 4 USB3.1 Gen1

*Audio interface: 5.1 channel audio

*Video interface: VGA, HDMI-compatible, DP

*Extension pins: 1 set of USB2.0, 1 set of USB3.1

Other parameters

*Power connector: 24 pin + 8 pin

*Power supply mode: 7+2 enhanced power supply

*Motherboard accessories: manual, SATA data cable, baffle

Intel i3 10105 parameters[New but without cooler]

Basic parameters

*Applicable type desktop

*CPU series: Core i3 10th generation series *Manufacturing process: 14nm

*Core codename: Comet Lake *Slot Type: LGA 1200

Performance parameters

*CPU frequency: 3.7GHz *Maximum turbo frequency: 4.4GHz

*Number of cores: Four cores *Number of threads: Eight threads

* L3 cache: 6MB *Bus specification: DMI3 8GT/s

Memory parameters

*Support maximum memory: 128GB *Memory type: DDR4 2666MHz

*Memory description Maximum number of memory channels: 2

*Maximum memory bandwidth: 41.6GB/s

Graphics card parameters

*Integrated Graphics Intel: UHD Graphics 630 * Graphics card base frequency: 350MHz

*Maximum dynamic frequency of graphics card: 1.15GHz

* Other features of graphics card graphics card video Maximum memory: 64GB

*Maximum resolution of graphic output: 4096×2304

*OpenGL support: 4.5 *DirectX support: 12

*Support Intel Quick Sync Video, InTru 3D Technology, Clear Video Core Technology, Clear Video Technology, Number of Supported Monitors: 3

Challenger B560

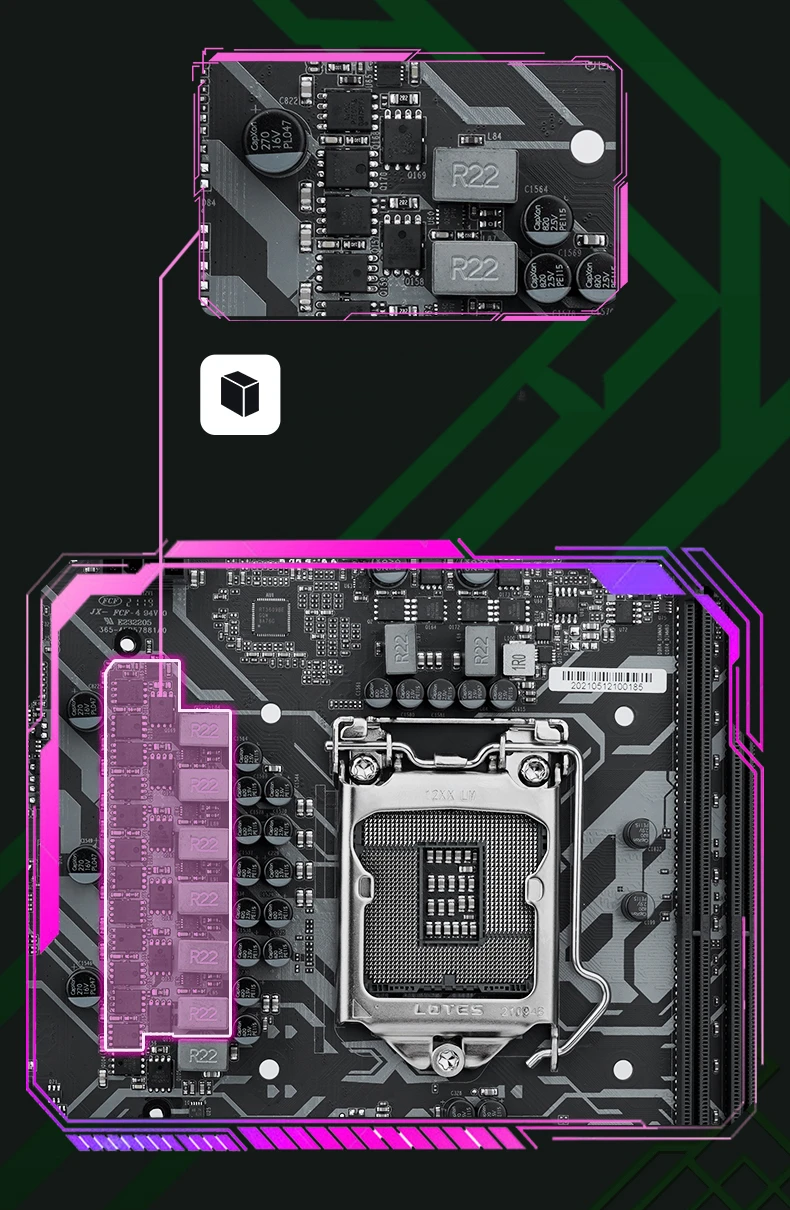

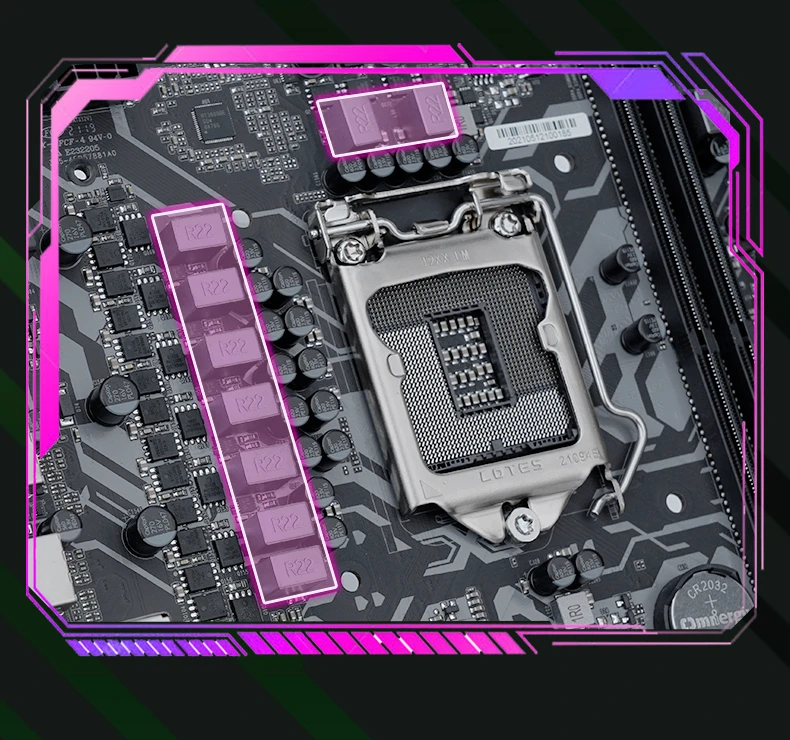

MAXPower power supply module

MOS: low internal resistance, low loss, high conversion rate

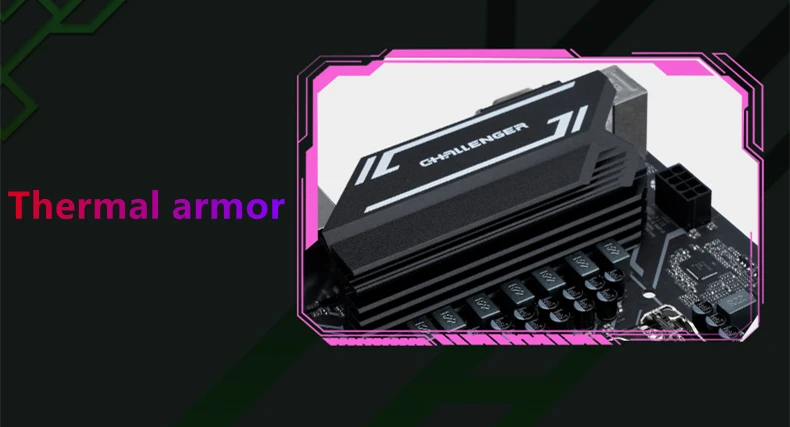

Thermal armor

Full speed M.2 slot

32Gb/s full speed interface
Support SATA/PCIE X4 switch

32Gb/s full speed interface Support SATA/PCIE X4 switchMore extensions

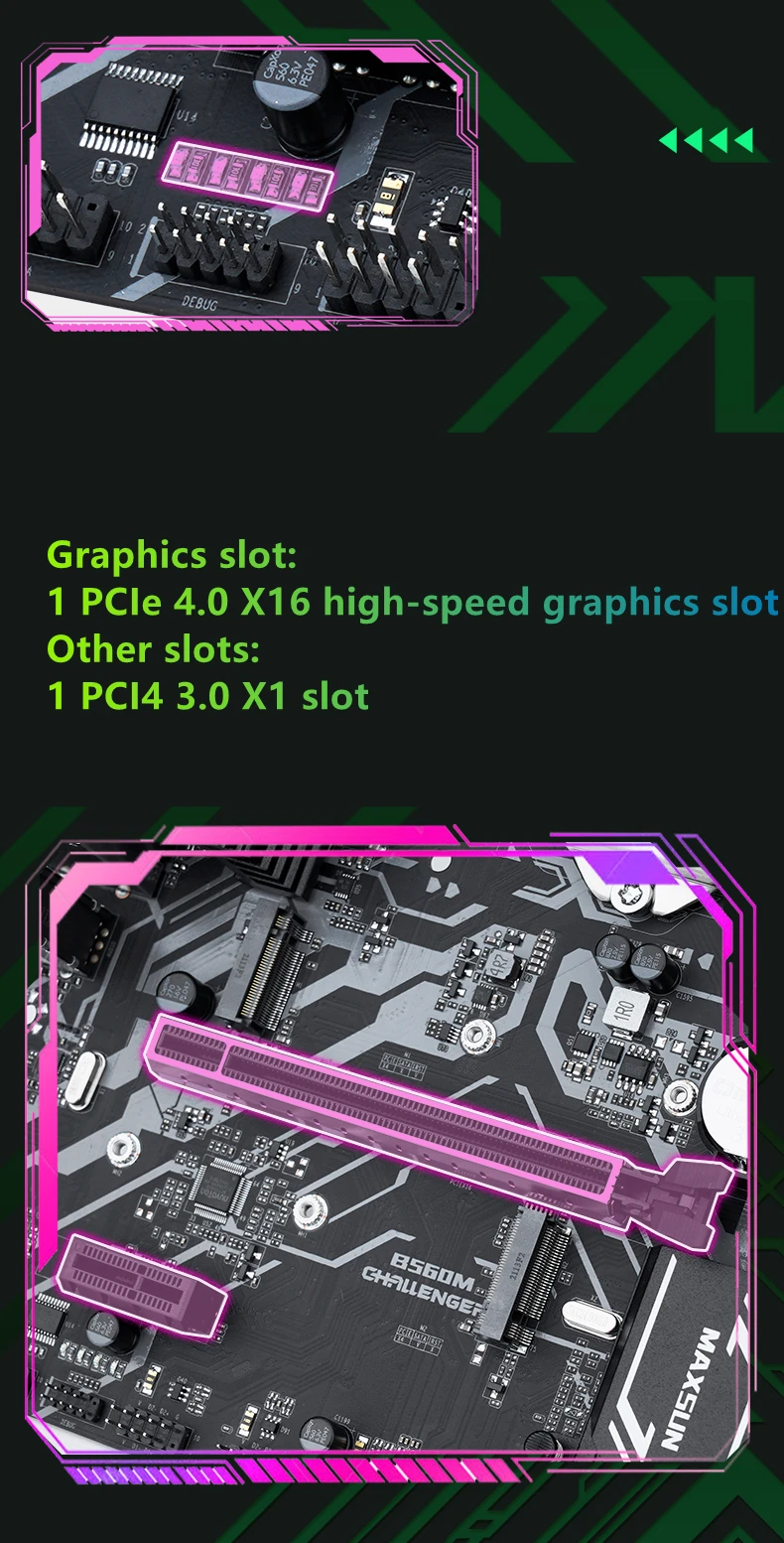

1 PCIe 4.0X16 high-speed graphics slot
1 PCIe X1 slot
