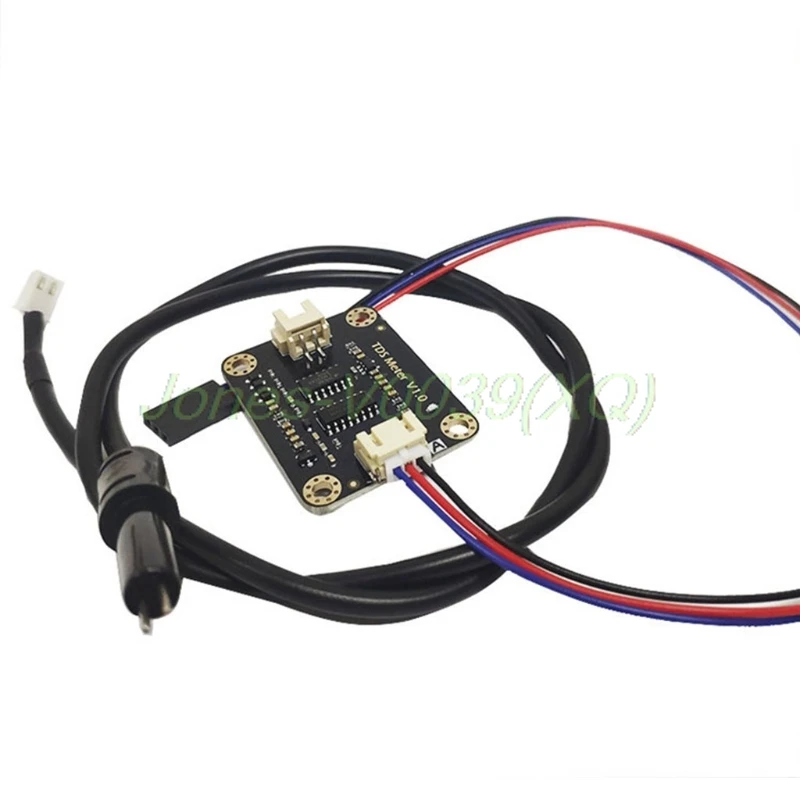

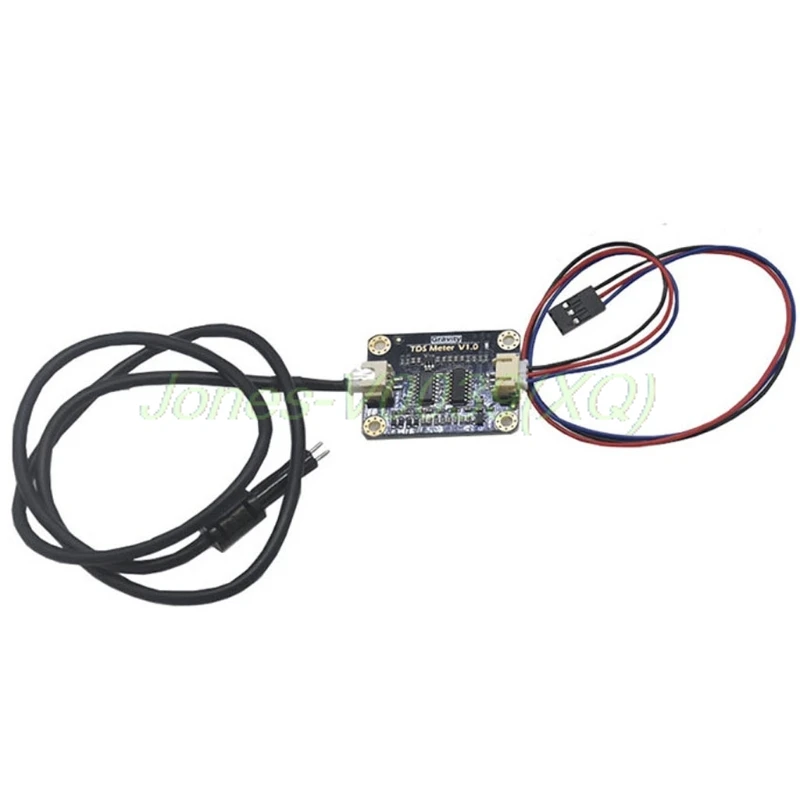

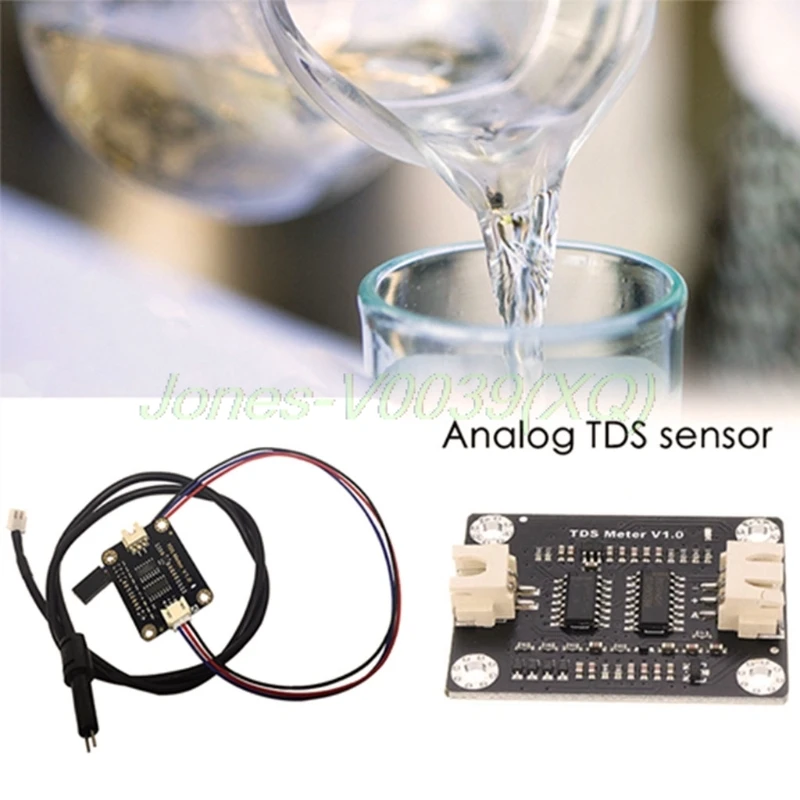

Electrical Meter Electronic Sensor Industrial Sensor DIY Module Analog TDS Sensor Water Conductivity Sensor Tester

Features：

1. Wide voltage operation: 3.3~5.5V .

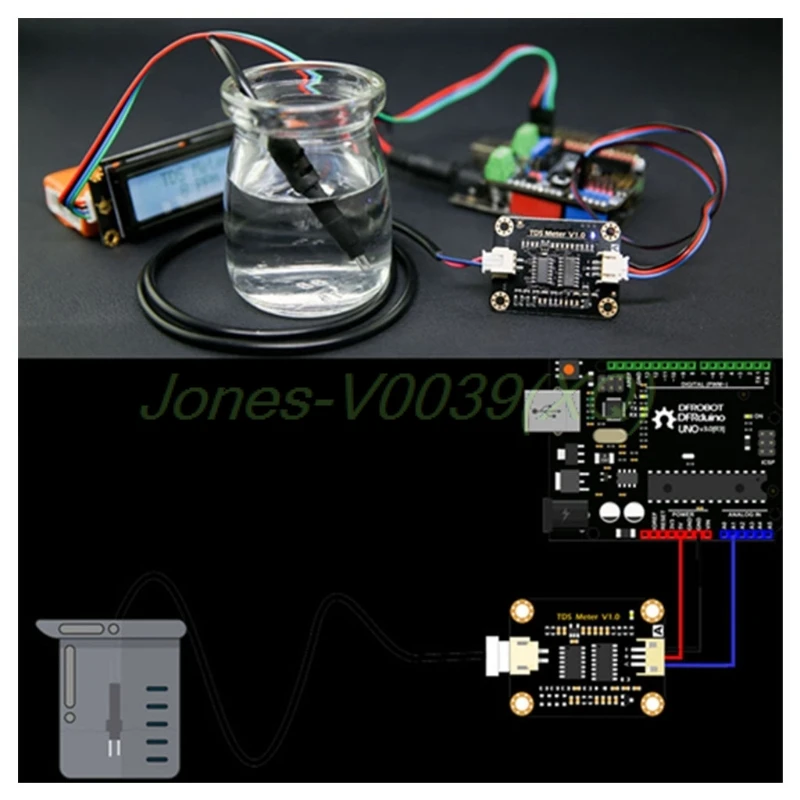

2. 0~2.3V analog signal output, compatible with 5V, 3.3V two control systems .

3. The excitation source is an AC signal, effectively preventing probe polarization .

4. Waterproof probe for long-term immersion in water .

5. Compatible, easy to connect, plug and play, no soldering required.

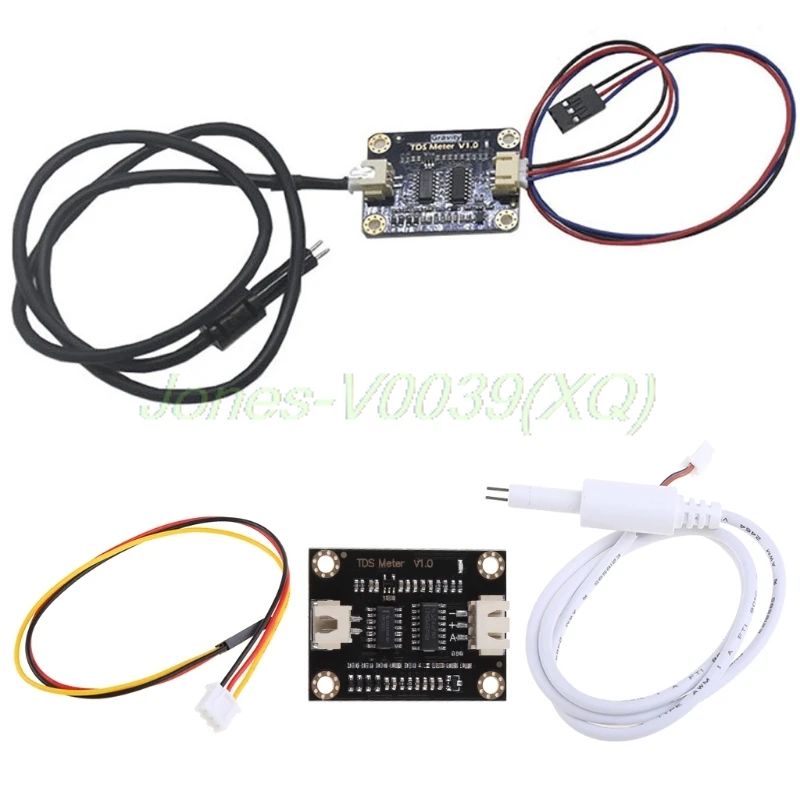

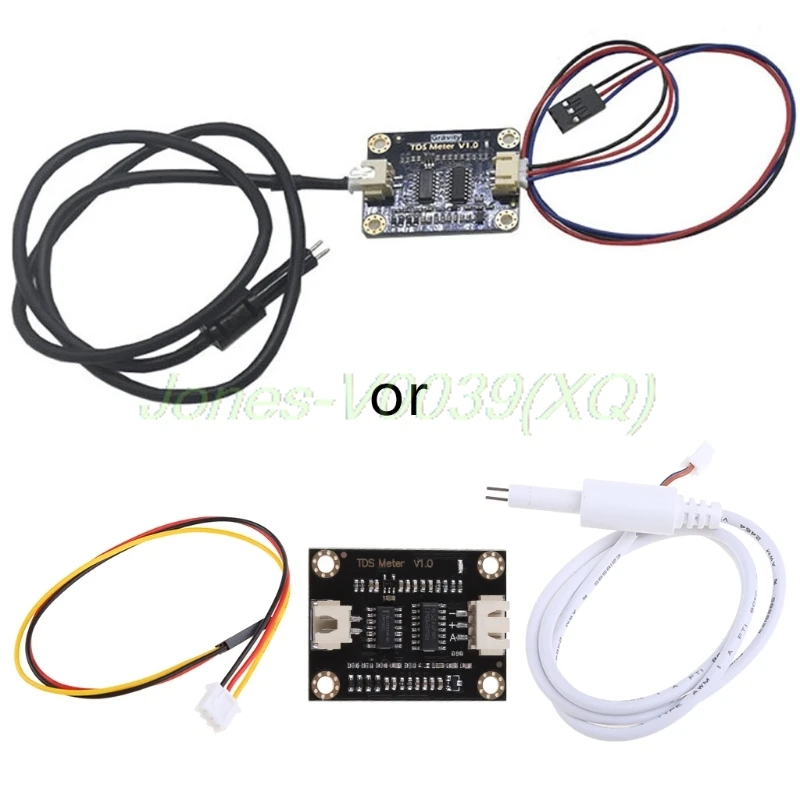

Package Includes:

1xTDS Sensor Liquid Detection
Specifications:

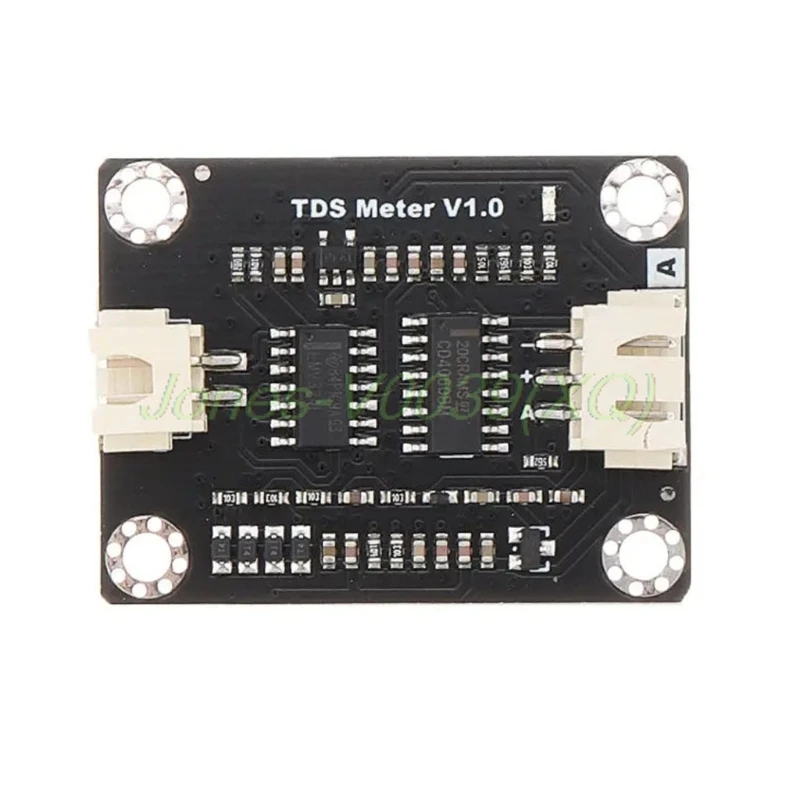

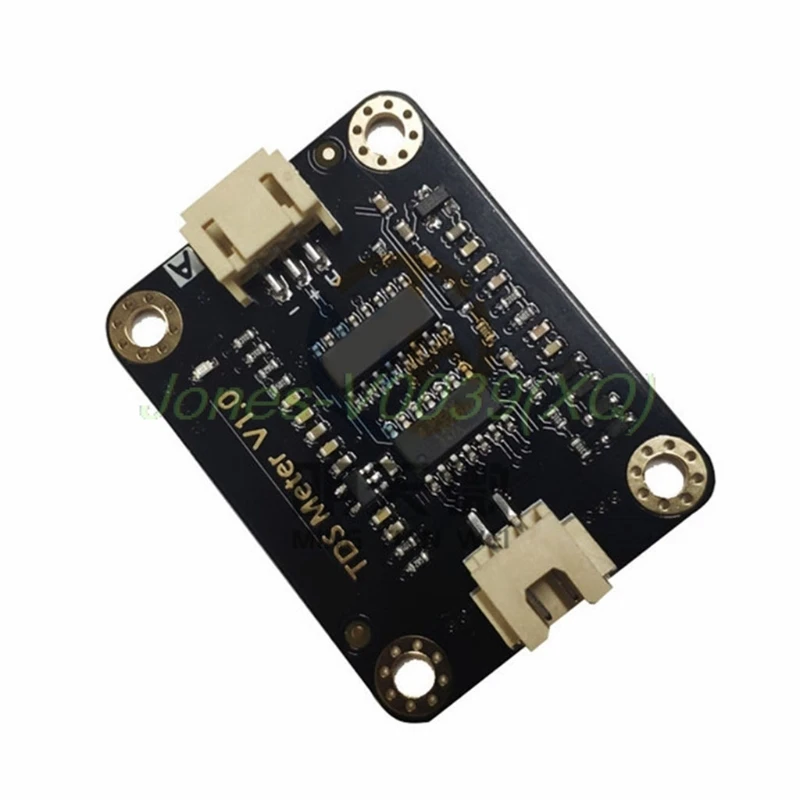

Signal transfer board:
Input voltage: 3.3~5.5V
Output signal: 0~2.3V
Working current: 3~6mA
TDS measurement range: 0~1000ppm
TDS measurement accuracy: ±10% F.S. (25℃)

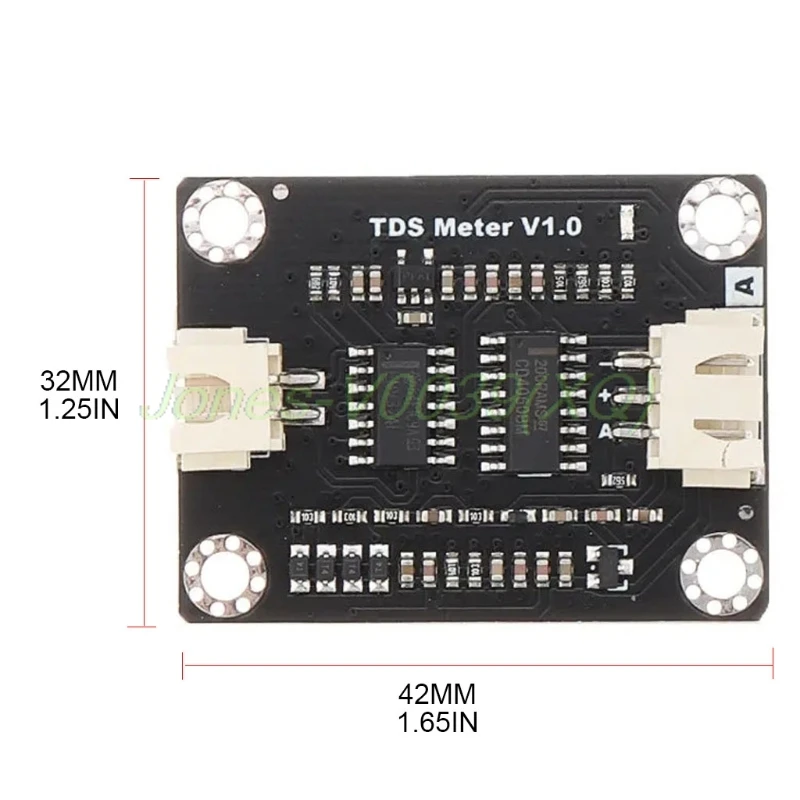

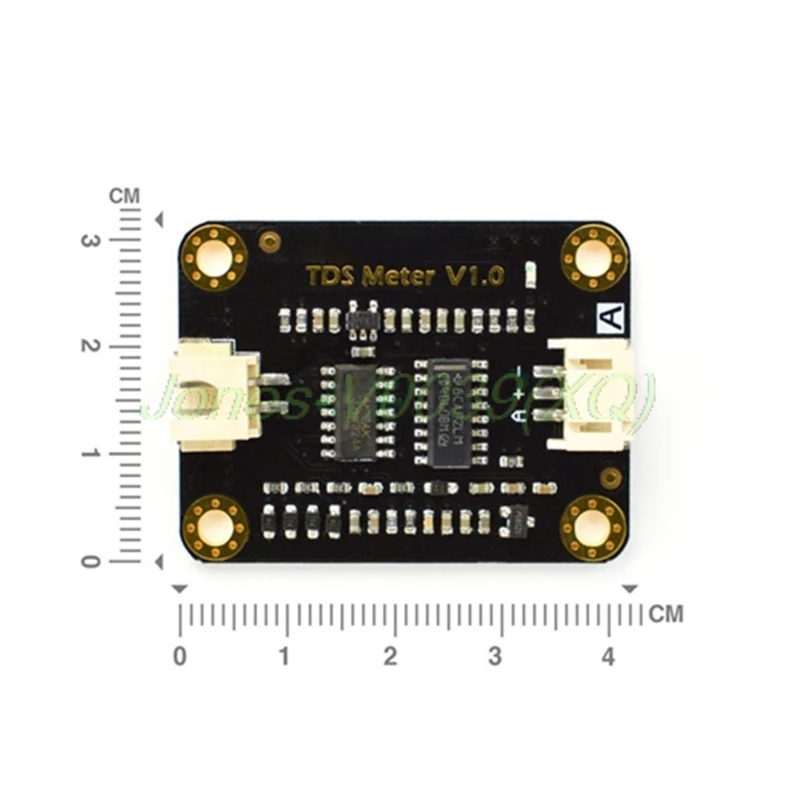

Size: 42x32mm( 1.65x1.25 inch)
Module interface: XH2.54-3P
Electrode interface: XH2.54-2P
TDS probes cannot be used in water above 55 °C.
The TDS probe should not be placed too close to the edge of the container, as it will affect the display.
The head and lead of the TDS probe are waterproof and can be immersed in water, but the connection interface and the signal adapter board are not waterproof. Please pay attention to use.
note:

Please allow 1-3cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item.
