Micro RS-390 Motor DC 3V-6V 25000RPM High Speed Power Large Torque for RC Toy Car |

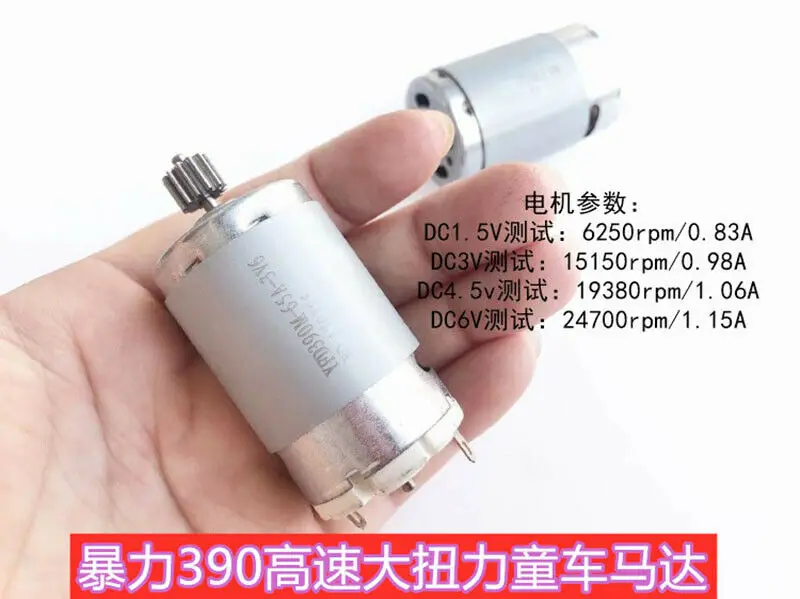

Brand NameNoneOriginMainland ChinaTypeMicro MotorCertificationCCCEfficiencyIE 1Measurement unitpiece/piecesEach pack1ModelRS-390Shaft Diameter2.35mmBrandUnbrandedConditionNewMPNDoes Not ApplyActual Rated Input Voltage6VShaft TypeStraightCountry/Region of ManufactureChinaUPCDoes not applyCurrent TypeDCSpecial Motor ConstructionSpindle MotorBase RPM25000RPMNominal Rated Input Voltage3 V, 6 V319,44 ₽-5%319,44 ₽-5%303,60 ₽303,60 ₽there is store discountAdd to CartBuy now303,60 ₽loaderDescription  Specification:   Motor diameter: 27.75 MM Motor length: 46.5 MM Output shaft: 2.35 MM Output length: 14 MM Screw hole diameter: 2.3MM Screw hole distance: 16 MM Motor gear: 12 teeth Voltage: 6 V (rated voltage) Current: 1.15 A Speed: about 25000 RPM Weight: 100g Test Data: 1.5V 6250   rpm current: 0.83 A 3.0V 15150 rpm current: 0.98 A 4.5V 19380 rpm current: 1.06A 6.0V 25000 rpm current: 1.15 A   (Note that this motor is high-speed and high-power, and the power supply has the least current It should be 3A or more, the larger the better, if it is too small, the motor will tremble and tremble, which operation of the motor's power and torque. And the high-power density motor, the motor will easily gene exceeds the rated voltage, please pay attention to the heat dissipation environment)       Package Include:   Motor x 1pc   img{max-width:100%} ul,dl,li,dl,dt,dd {margin:0; padding: 0;} ul,li{ margin:0; padding:0; border:0px; } .Pa_body { font-family: Geneva, Arial, Helvetica, sans-serif; font-size: 12px; margin: 0px auto; padding: 0px auto; width: 100%; height:auto; min-height:820px; float:left; background:#fff; text-align:center;overflow:hidden; -moz-user-select: none; -webkit-user-select: none; -ms-user-select: none; -khtml-user-select: none; user-select: none;} .Pa_center { margin:20px auto; height:auto;} .Pa_Top { height:253px; margin: 0 auto; width: 100%; background:url(//img.alicdn.com/imgextra/i1/721832144/TB2IatnsuJ8puFjy1XbXXagqVXa_!!721832144.jpg); } .Pa_TopRight { background:url(//img.alicdn.com/imgextra/i3/721832144/TB2maVJsr8kpuFjy0FcXXaUhpXa_!!721832144.jpg) right no-repeat; height:253px; width:100%; } .Pa_Title{ font-size:22px; float:left; margin:40px 0 0 40px; color:#fff;font-weight:bold; width:90%; text-align:left;} .Pa_Product{ width:100%; float:left;} .Pa_Product table{ width:100%; margin:0 auto;} .Pa_Product td{ text-align:center; vertical-align:middle; padding:2px;} .Pa_Product table td img{border:5px solid #e7e8e3; margin:12px; text-align:center; cursor:pointer } *{margin:0;padding:0;} .Pa_Box{overflow:hidden;position:relative;width:100%;margin:10px auto 20px auto;padding:0px;} .Pa_TboxL, .Pa_Tboxt, .Pa_TboxR{position:absolute;top:0;z-index:2;height:10px;font-size:0%;} .Pa_TboxL{ left:0; width:10px;} .Pa_Tboxt{ z-index:1;width:100%;} .Pa_TboxR{ right:0;width:10px;} .Pa_MboxL, .Pa_MboxR{ position:absolute;z-index:2; width:10px;} .Pa_MboxL{top:0px;left:0;z-index:1;height:2000px;} .Pa_MboxR{top:0px;right:0;z-index:1;height:2000px;} .Pa_Mboxt{width:100%; } h2{text-align:left;font-weight:normal;} .Pa_Demo{ text-align:left; line-height:21px; color:#4e4e4e; font-size:13px; float:left;width:100%; } .Pa_DemoT{ width:96%; text-align:left; float:left; padding-left:18px; padding-top:6px;} .Pa_BboxL, .Pa_Bboxt, .Pa_BboxR{position:absolute;bottom:0;z-index:2;height:10px;font-size:0%;} .Pa_BboxL{ left:0;width:10px;} .Pa_Bboxt{ z-index:1;width:100%;} .Pa_BboxR{ right:0; width:10px;} .Pa_head{ width:100%; height:28px; background:url(//img.alicdn.com/imgextra/i4/721832144/TB2QcLkvYxmpuFjSZJiXXXauVXa_!!721832144.jpg); overflow:hidden; float:left; } .Pa_headc { float: left; font-size: 20px; color:#fff; line-height:28px; padding-left:15px;} ul,dl,li,dl,dt,dd{ margin:0; padding: 0;} ul,li{ margin:0; padding:0; border:0px; } .Pa_body{font-size:12px;margin:0px auto;padding:0px auto;background:#fff; text-align:center;width:100%; float:left;overflow:hidden;-moz-user-select: none; -webkit-user-select: none; -ms-user-select: none; -khtml-user-select: none; user-select: none;} .Pa_center { margin:20px auto; height:auto;} .Pa_Top { height:253px; margin: 0 auto; width: 100%; background:url(//img.alicdn.com/imgextra/i1/721832144/TB2IatnsuJ8puFjy1XbXXagqVXa_!!721832144.jpg); } .Pa_TopRight { background:url(//img.alicdn.com/imgextra/i3/721832144/TB2maVJsr8kpuFjy0FcXXaUhpXa_!!721832144.jpg) right no-repeat; height:253px; width:100%; } .Pa_Title{ font-size:22px; float:left; margin:40px 0 0 40px; color:#fff;font-weight:bold; width:90%; text-align:left;} .Pa_Product{ width:100%; float:left;} .Pa_Product table{ width:100%; margin:0 auto;} .Pa_Product td{ text-align:center; vertical-align:middle; padding:2px;} .Pa_Product table td img{border:5px solid #e7e8e3; margin:12px; text-align:center; cursor:pointer } *{margin:0;padding:0;} .Pa_Box{overflow:hidden;position:relative;width:100%;margin:10px auto 20px auto;padding:0px;} .Pa_TboxL, .Pa_Tboxt, .Pa_TboxR{position:absolute;top:0;z-index:2;height:10px;font-size:0%;} .Pa_TboxL{ left:0; width:10px;} .Pa_Tboxt{ z-index:1;width:100%;} .Pa_TboxR{ right:0;width:10px;} .Pa_MboxL, .Pa_MboxR{ position:absolute;z-index:2; width:10px;} .Pa_MboxL{top:0px;left:0;z-index:1;height:2000px;} .Pa_MboxR{top:0px;right:0;z-index:1;height:2000px;} .Pa_Mboxt{width:100%; } h2{text-align:left;font-weight:normal;} .Pa_Demo{ text-align:left; line-height:21px; color:#4e4e4e; font-size:13px; float:left;width:100%; } .Pa_DemoT{ width:96%; text-align:left; float:left; padding-left:18px; padding-top:6px;} .Pa_BboxL, .Pa_Bboxt, .Pa_BboxR{position:absolute;bottom:0;z-index:2;height:10px;font-size:0%;} .Pa_BboxL{ left:0;width:10px;} .Pa_Bboxt{ z-index:1;width:100%;} .Pa_BboxR{ right:0; width:10px;} .Pa_head{ width:100%; height:28px; background:url(//img.alicdn.com/imgextra/i4/721832144/TB2QcLkvYxmpuFjSZJiXXXauVXa_!!721832144.jpg); overflow:hidden; float:left; } .Pa_headc { float: left; font-size: 20px; color:#fff; line-height:28px; padding-left:15px;}

---
