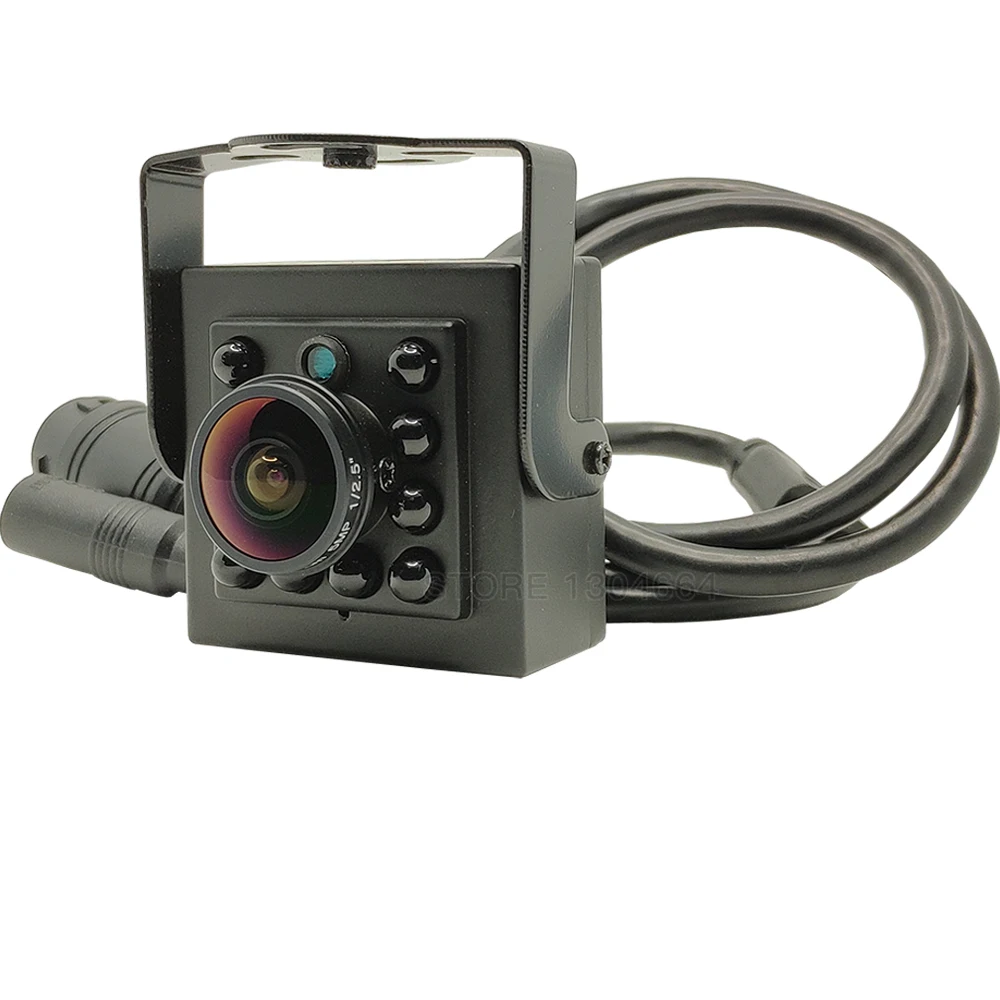

HD 3MP/4MP Mini IP Camera Wide Angle 150 Degrees Indoor Small Audio Video Surveillance Night Vision Security Micro Cam | Безопасность и

HD 3MP/4MP Mini IP Camera Wide Angle 150 Degrees Indoor Small Audio Video Surveillance Night Vision Security Micro Cam | Безопасность и

Parameter

Resolution 3MP/4MP
Illumination 0.01Lux
Protocol ONVIF protocol
Support RTSP
Support to provide SDK
Image color Color
Shutter AUTO
Output Network RJ45 network port
Mobile APP Supports IOS Apple mobile phone, Android mobile phone
Software CMS centralized management software

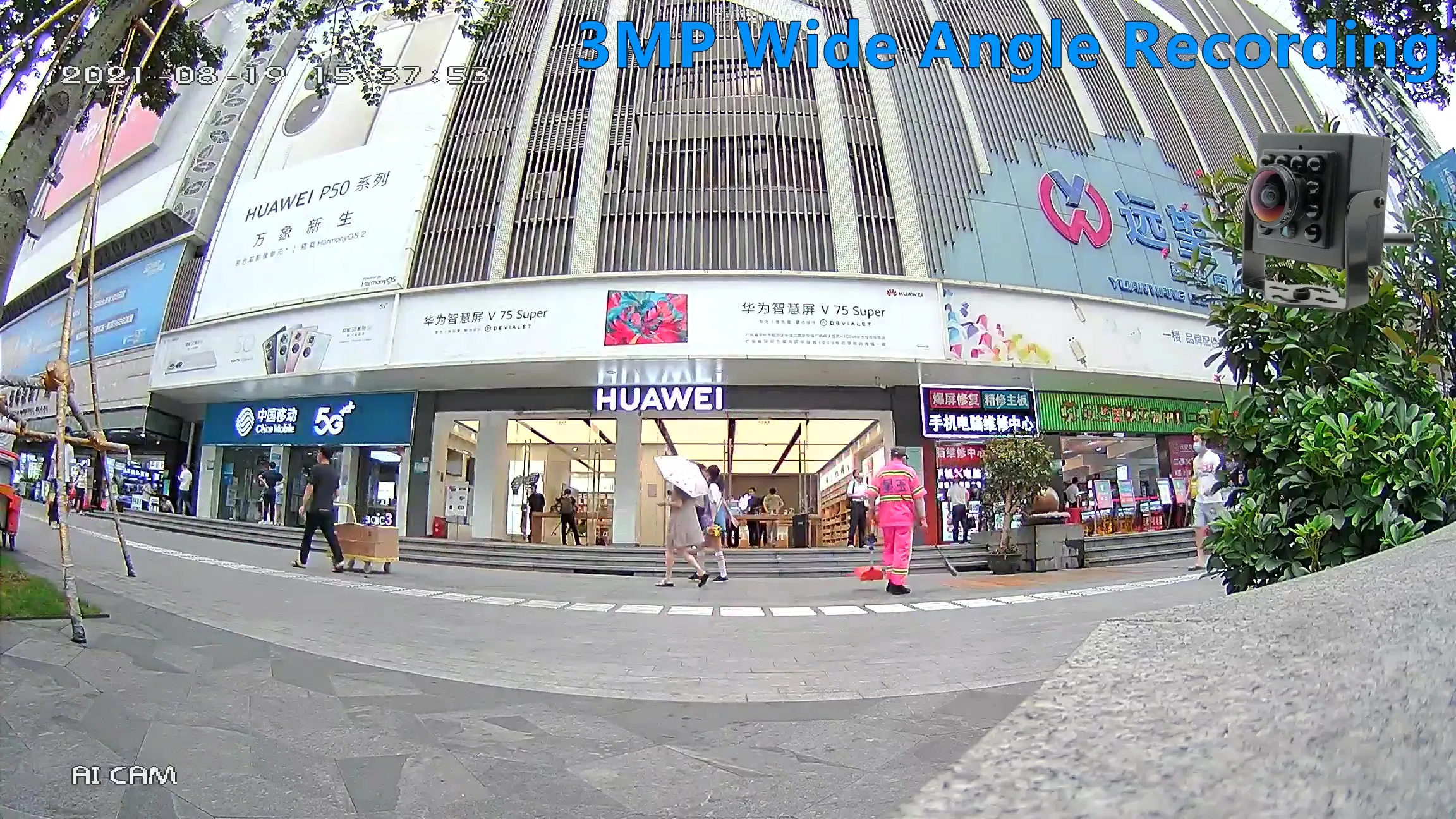

Lens angle 1.8MM（150 degrees）
Power DC12V

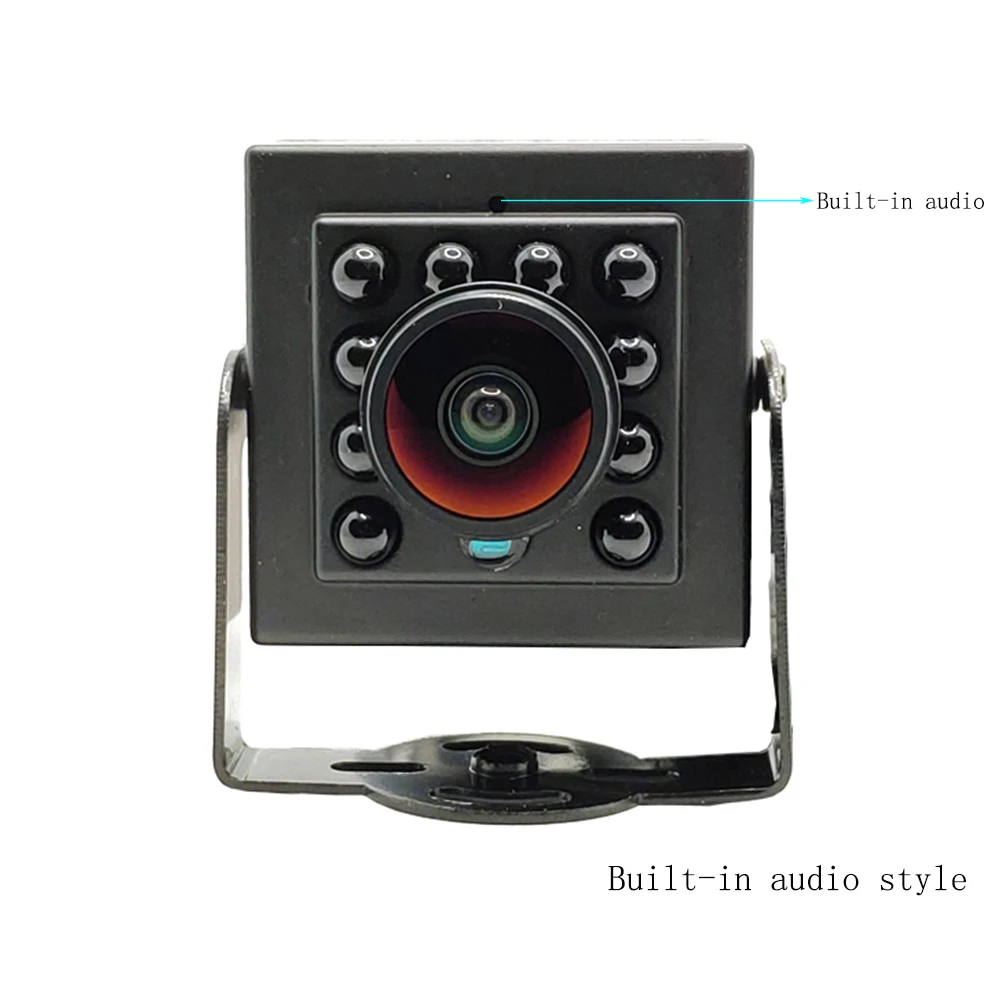

Built-in audio (optional)

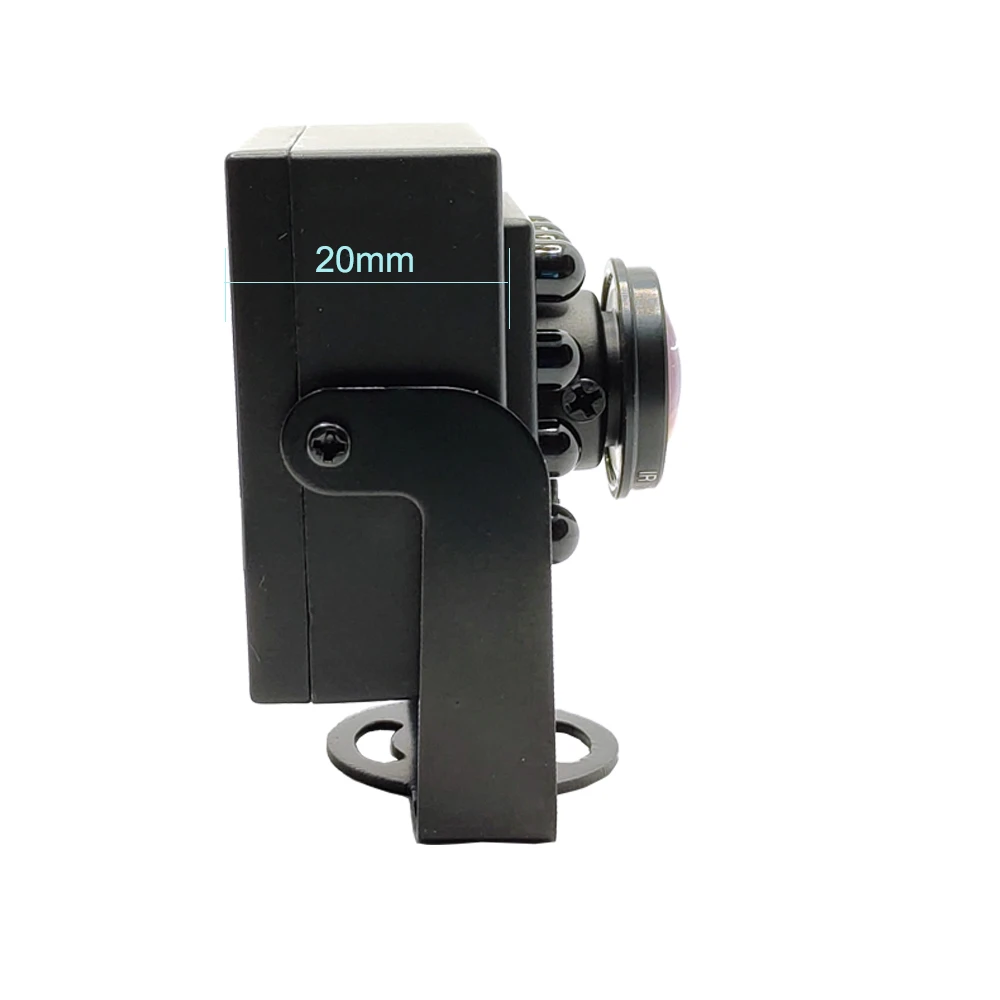

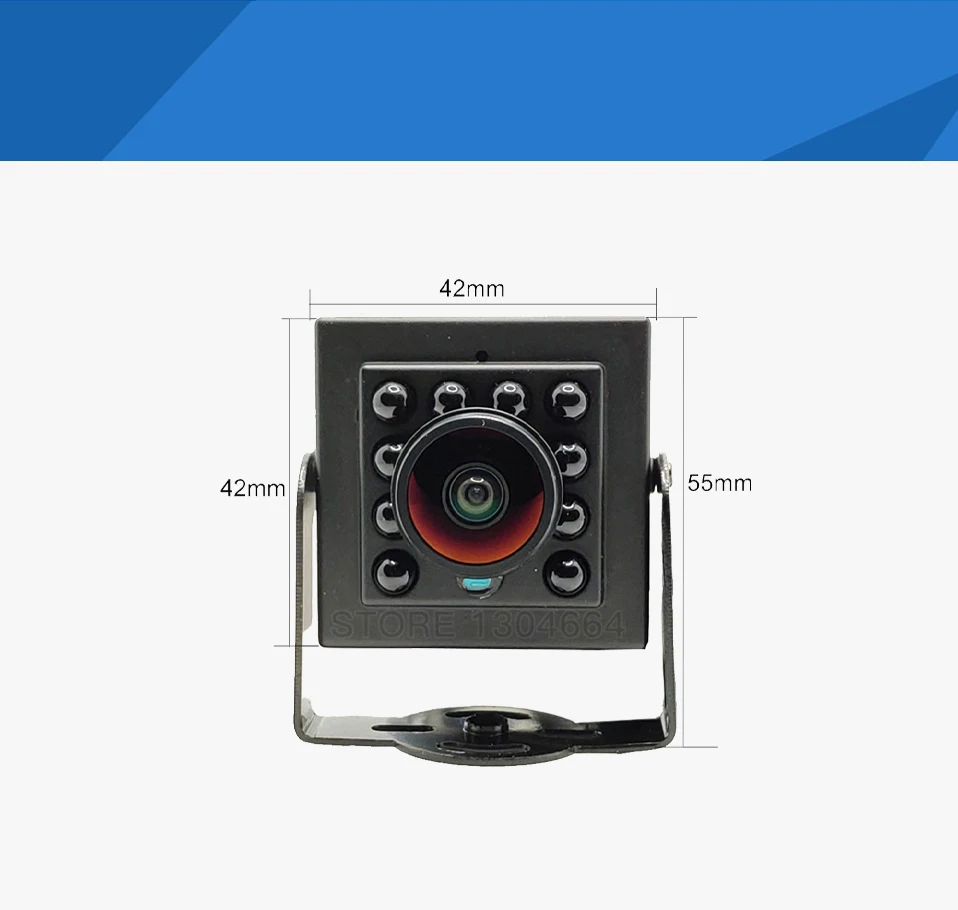

Size 42*42MM(±3 Does not contain a bracket)
Day and night mode Color (default) / External control / Auto / Black and white
Working temp -10~60℃

TiP:

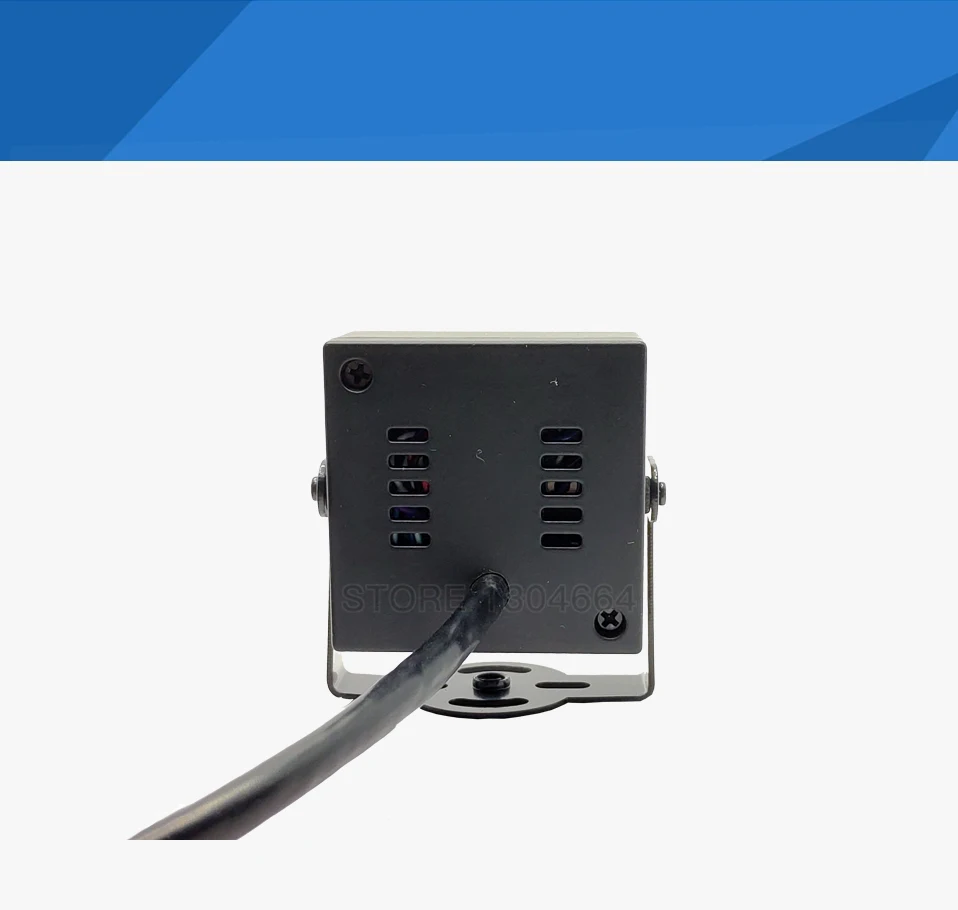

1. IP camera will create more heat and the case of this camera is small, so after you operate the camera for a while, you will feel the camera is hot. And do not worry, it is normal and safe.

2.The camera is not waterproof, we recommend that you use it indoors.

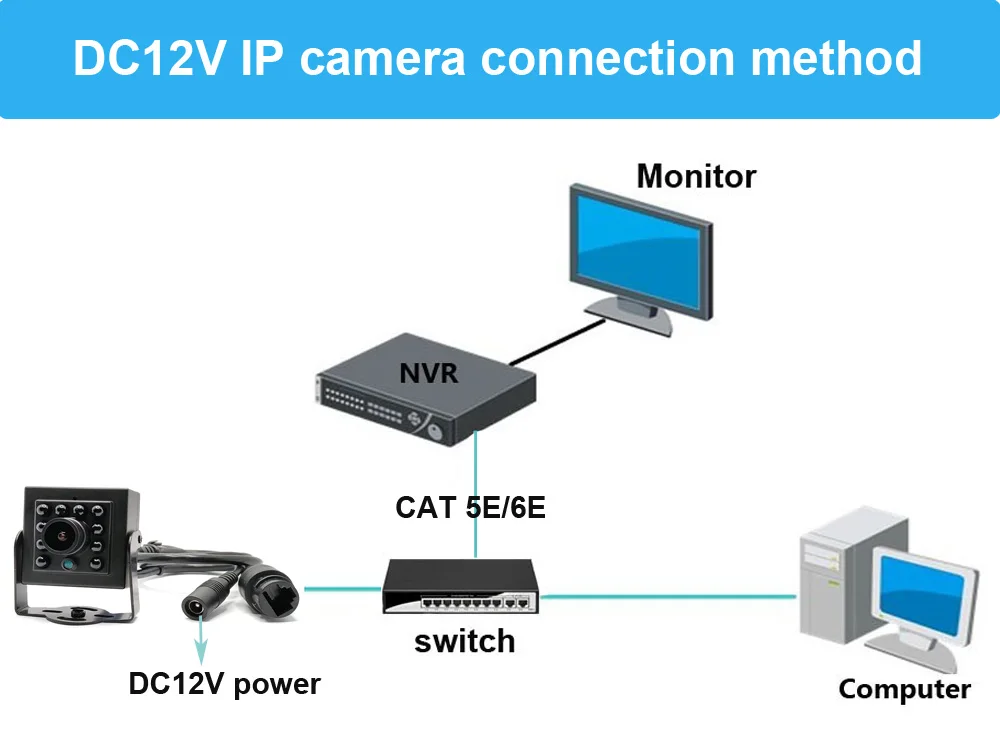

3. IP Camera must be connected to NVR/PC

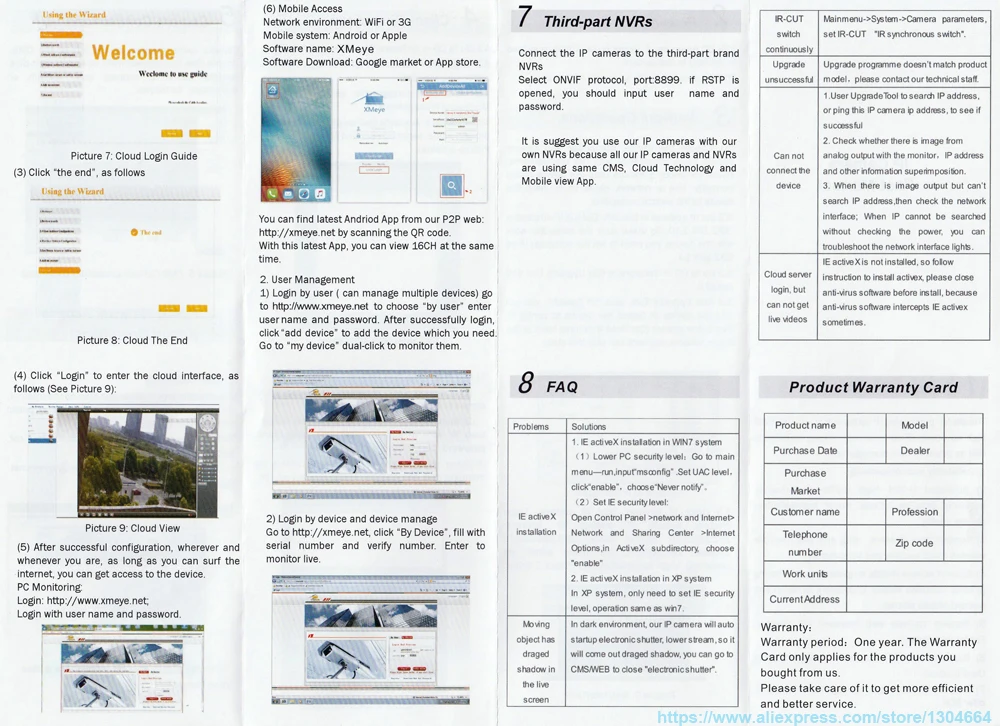

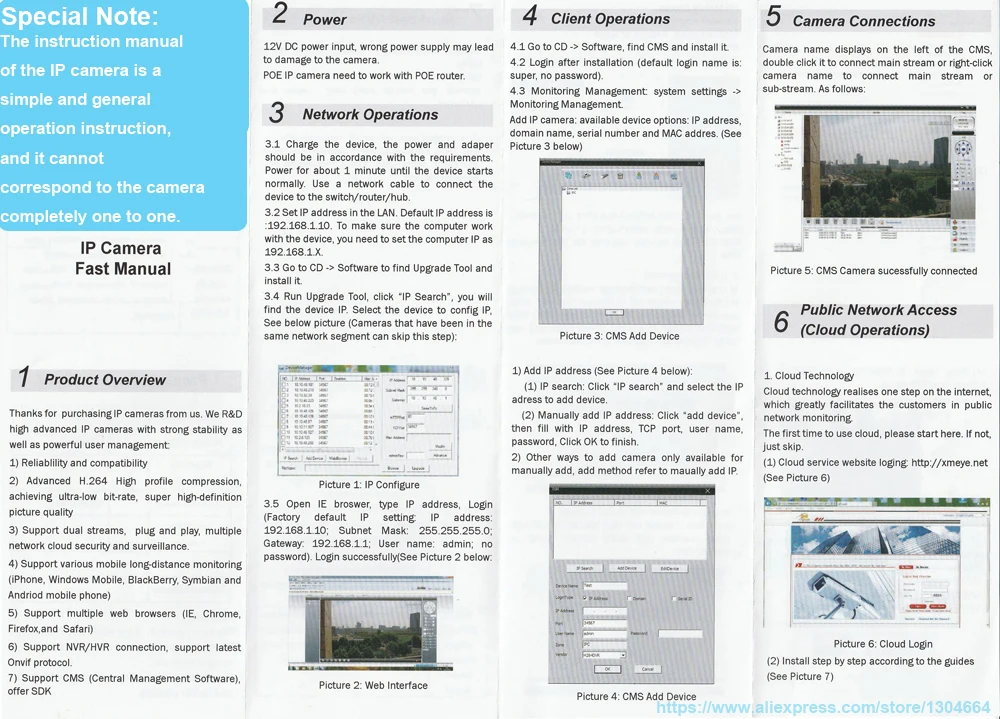

4.Products include:1* Camera, 1* English User Manual

About the camera:

IP camera default IP address:192.168.1.10
User name:admin,password:empty(null)
If there is a problem with "Can not find the Device", it is the default ip address is not in the same network segment as your router.

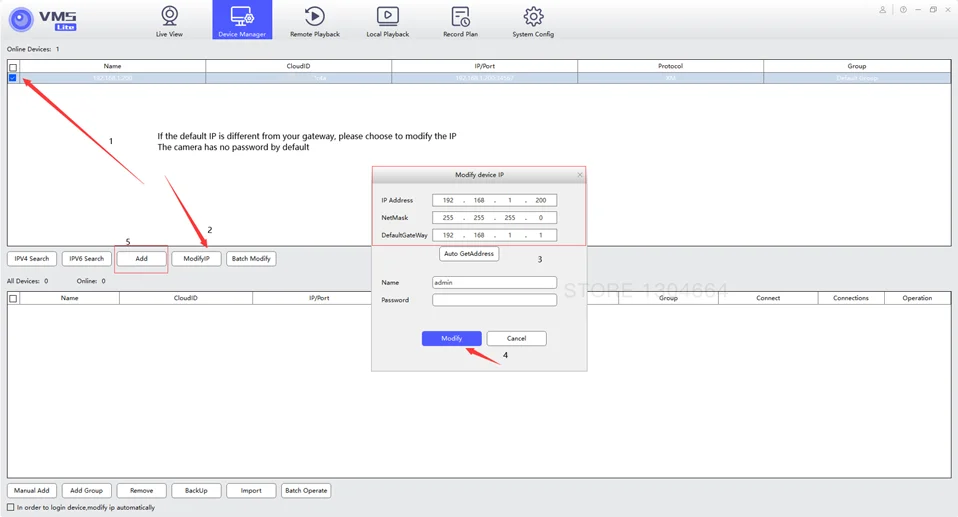

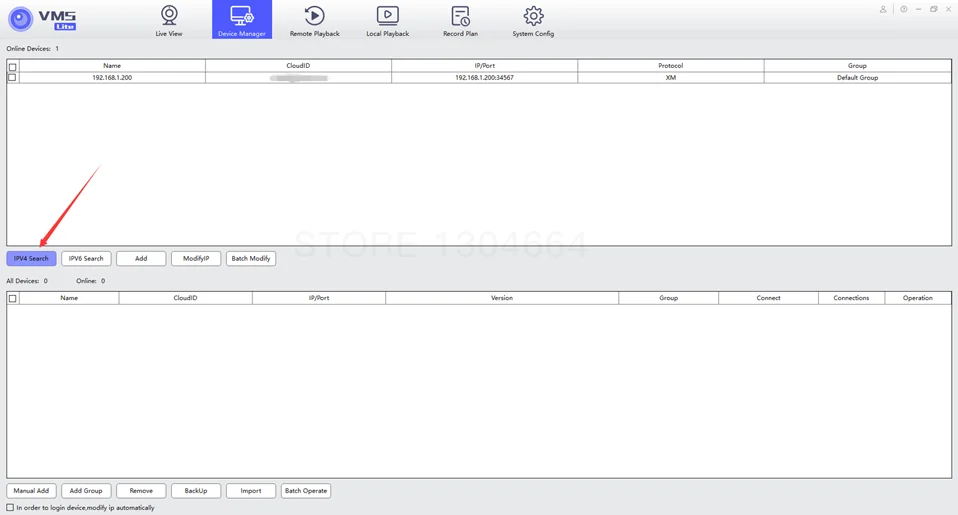

Please click "Edit Device" to change the camera's ip address,
For example, if your router's ip address is 192.168.0.1, then you need to change the camera's ip address to 192.168.0.XX.
P2P website: "www.xmeye.net" ,please use IE and install ActiveX,only IE supports Multi Language.Chrome,Safari just support Chinese .
Access to the IPC through the web, only one screen can be displayed.

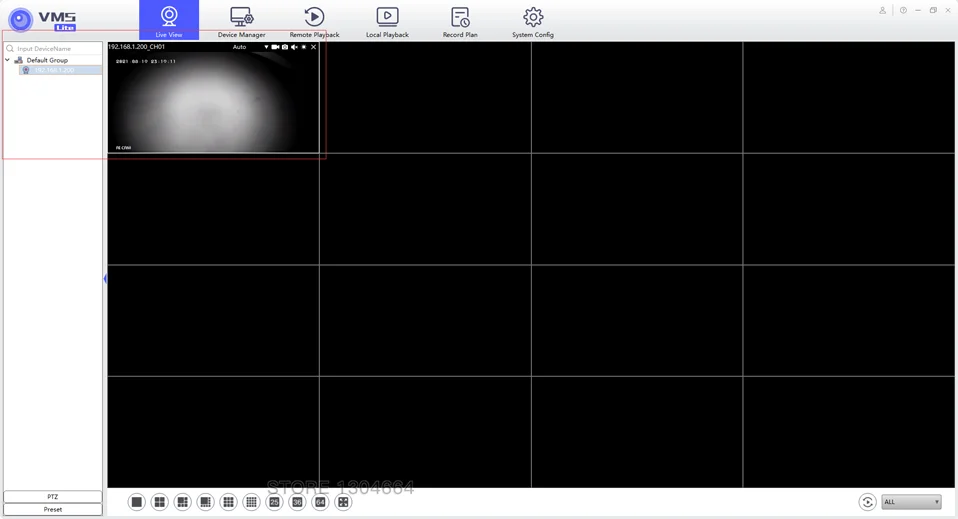

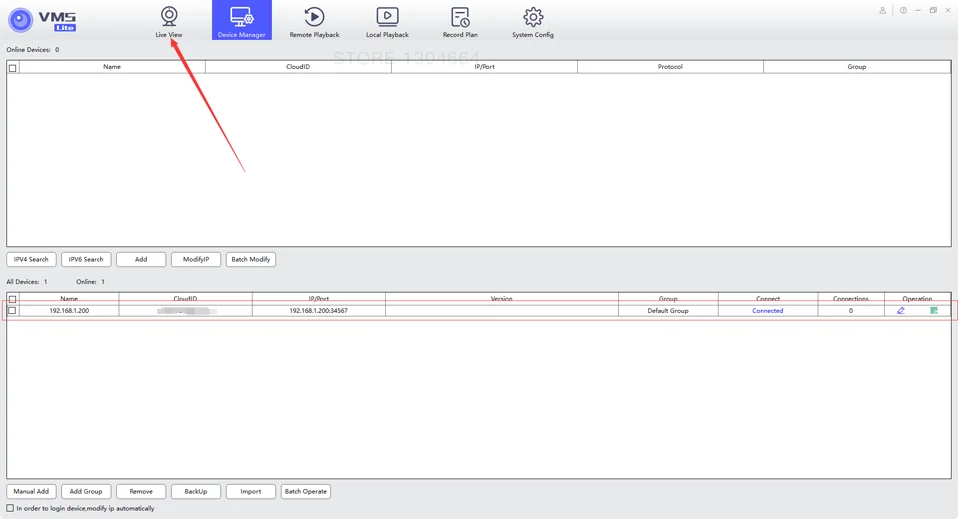

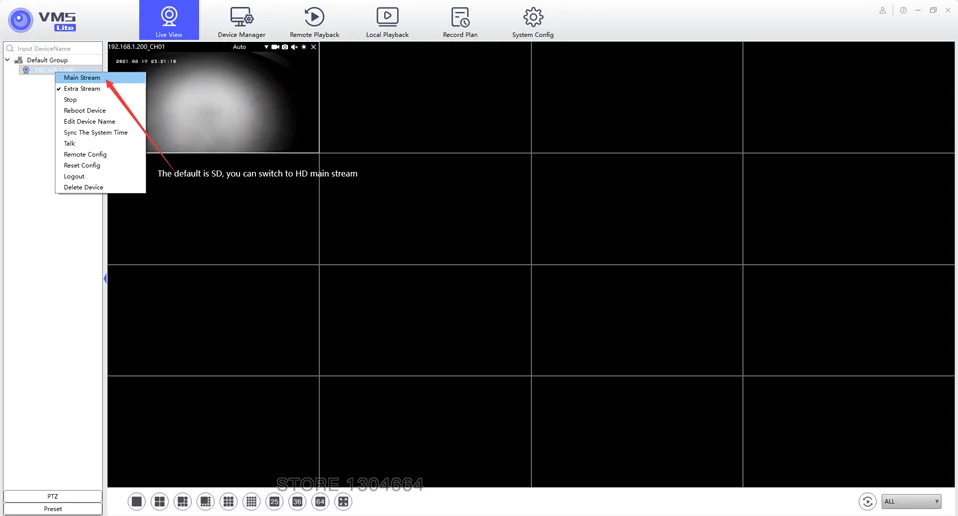

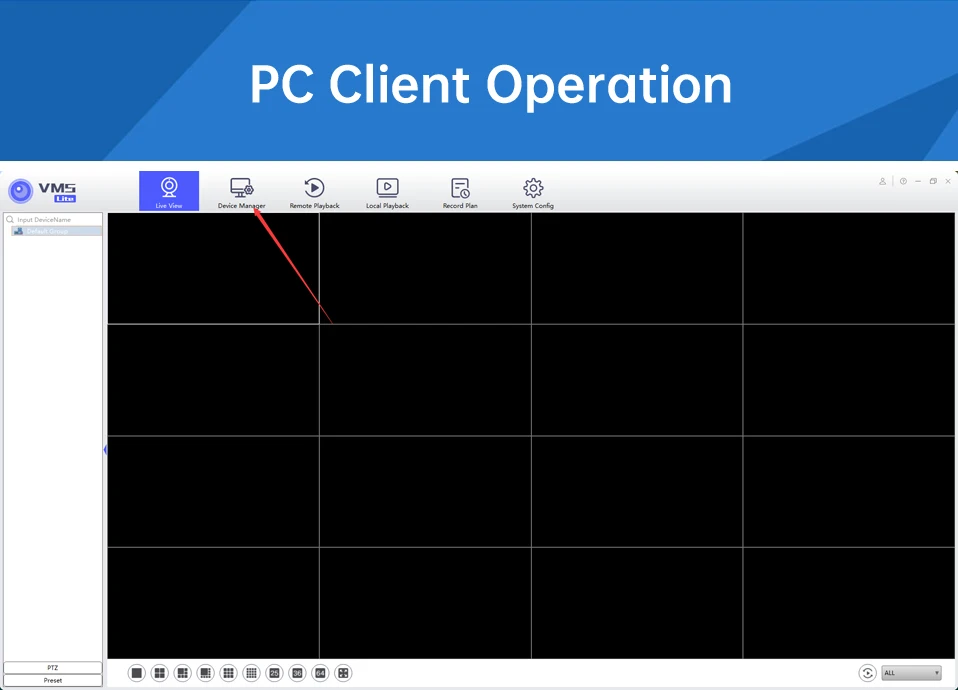

There are multiple IPC, please use client software to manage CMS Or VMS )
The camera's port information.
TCP Port 34567 ; HTTP Port 80; ONVIF Port 8899 ;
The camera supports RTSP.
Use RTSP URL for VLC media Player :
Fill in "Please enter the network URL:"
rtsp://10.6.3.57:554/user=admin&password=&channel=1&stream=0.sdp?
10.6.3.57 This is the IP of the connected device
:554 This is the port number of the RTSP service, which can be changed in the network service of the device
user=adminThis is the login user name of the device
password= Password is none
channel=1 First channel
stream=0.sdp？Main stream

If you need to use a computer client, please leave a message on your order or contact online customer service, we will send you a link to download.
