Description:

1.4-Port PoE Switch:4 x 10/100 Mbps PoE ports for Security IP Camera Connection +2 x 10/100Mbps fast Ethernet Uplink ports for Router/NVR connection, Plug & Play;

2.48V POE switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable;

3.Seitch can be used for any 10/100Mbps link and supply industry-standard IEEE 802.3af power;

4.Advanced auto-sensing algorithm gives power to 802.3af end devices, In addition, the PoE switch automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink. Easy to operate and reliable;

5.PoE switch is ideal for powering PoE devices such as IP cameras, WLAN access point, IP phones, office access control systems, and other PD devices and offers a line of high quality products;

Product Detail:

Product Name: MINI 4 Port 10/100M ACTIVE POE Switch(4+2)

Data Pin:1/2+,3/6-

Power Supply Type:Build in, 1/2+,3/6-

PoE Output Power:15.4W/30W

Connector:4*10/100mbps POE port,2*10/100mbps uplink port

Network Medium Cat5 (UTP) or more

Network Standards:IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX

IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet

PoE power:15.4W per port(IEEE802.3af).

Wiring: Data & power provided over pairs 1/2 and 3/6

Half-duplex back pressure and IEEE 802.3x full-duplex flow control

Buffer memory:48Kb embedded memory per unit

Network Latency:Less than 20us for 64 byte frames in store-and-forward mode for 100Mbps to 100Mbps transmission

PowerInput:52V DC input

PoE power consumption:15.4W per port(IEEE802.af)

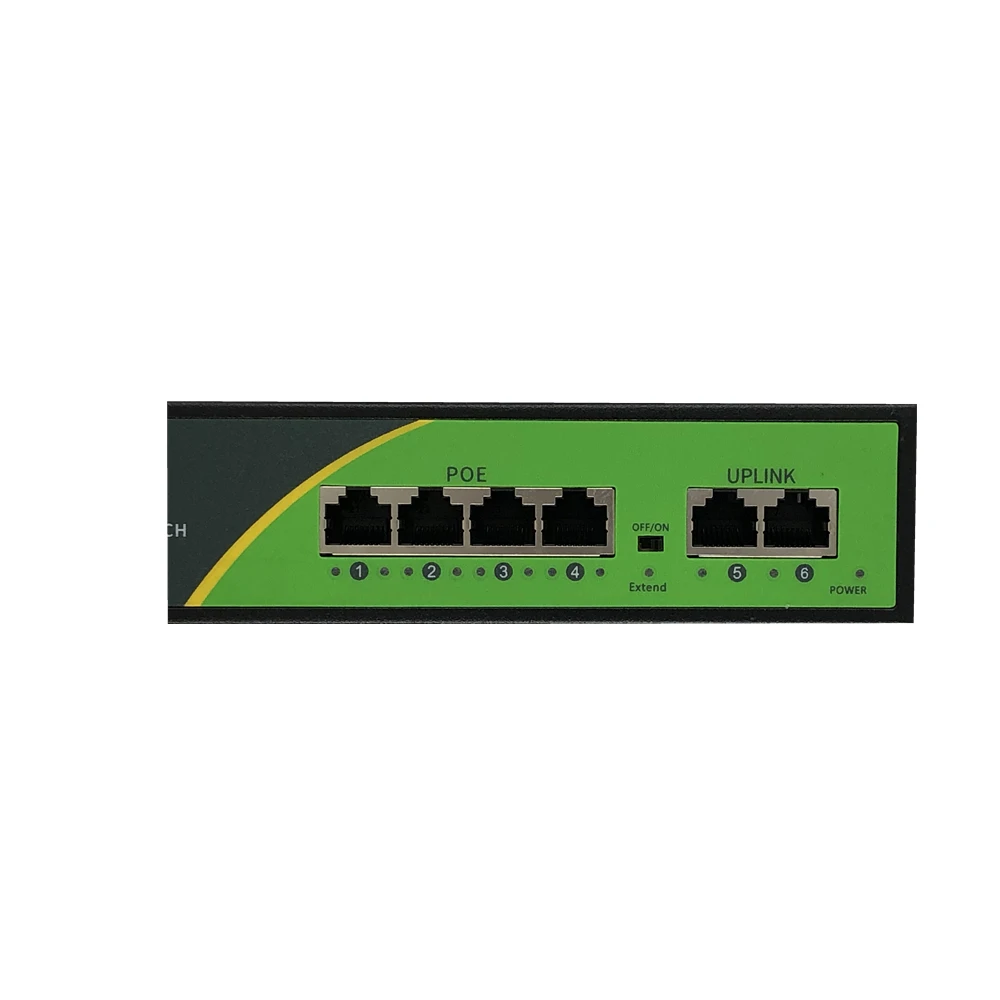

LED Indicators System: Power, PoE Maximum power

Per port: Link, Activity, Speed, PoE active, PoE error

Environment specification

Operating temperature -10-55℃(32-104℉)

Storage temperature -40-70℃(14-158℉)

Operating humidity 90% maximum relative humidity, non-condensing

Storage humidity 95% maximum relative humidity, non-condensing

Package

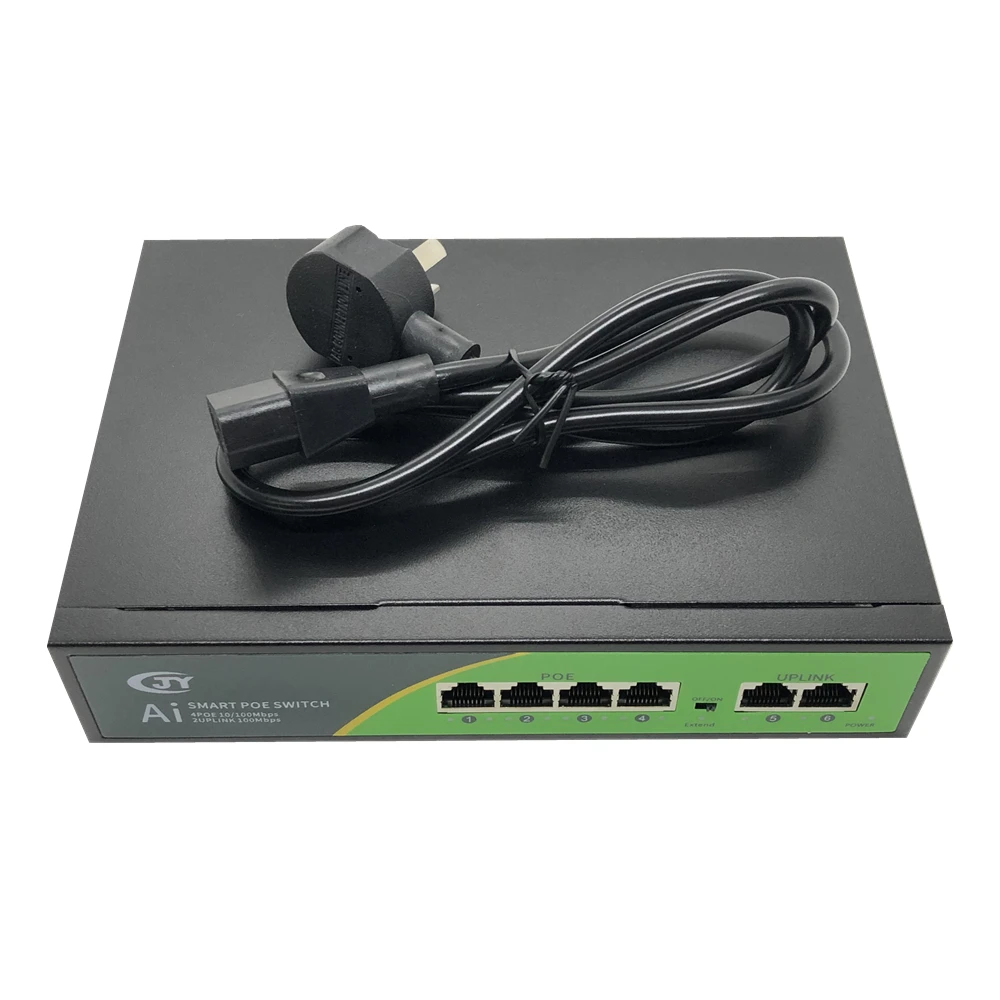

1 x PoE switch

1 x Power cable

1 x User Manual
