Retekess TR510 Wireless FM Transmitter Broadcast Radio Station+10pcs TR101 FM Receiver Drive-in Church Meeting Translation

1.FM transmitter： 3 frequencies can be preset for the FM transmitter according to actual needs, and the frequency can be switched by just pressing the corresponding channel button. The remote FM transmitter, the broadcast frequency range is 76-108MHz.

2.One-second frequency matching：First set the transmitter frequency, then TR101 /TR104 adjusts the receiver to the same frequency, the code can be successfully matched.

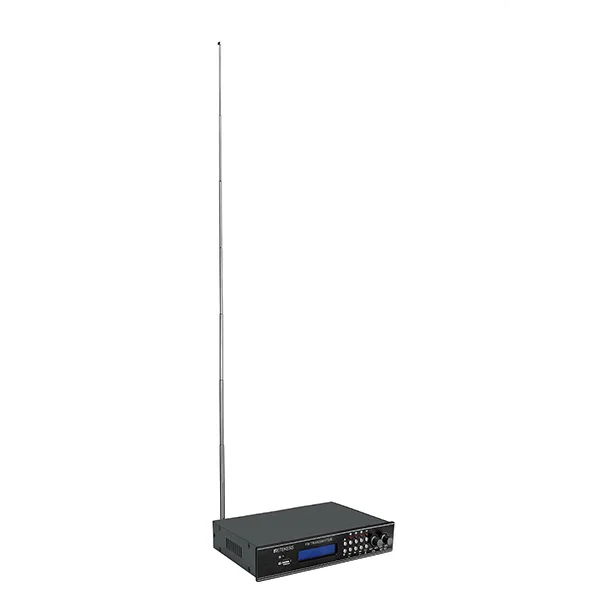

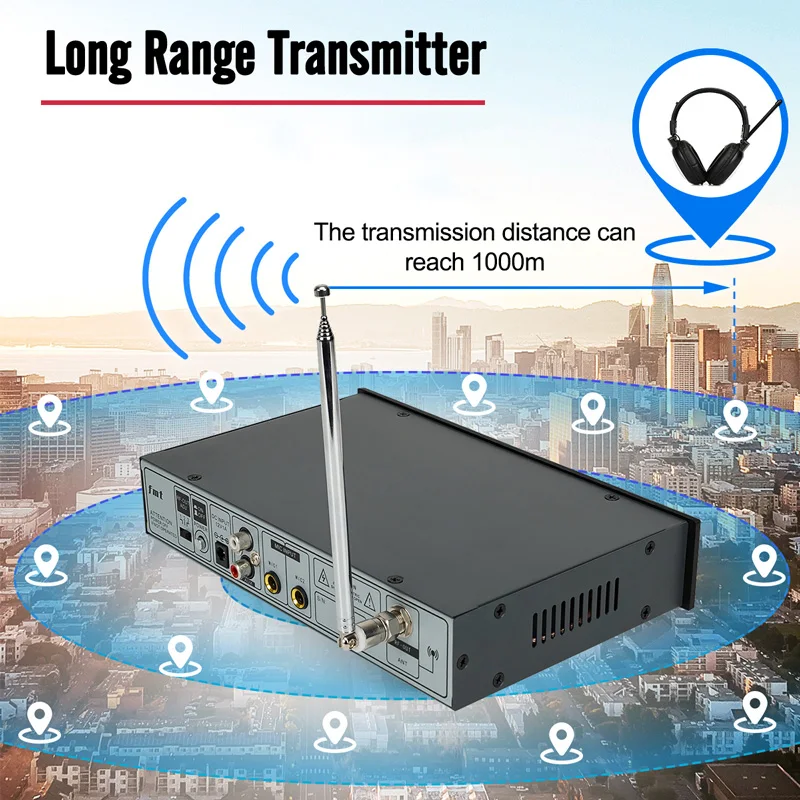

3.Long Range Transmitter：the transmission distance can reach 1000m, and the signal is stable in open areas.

4.One-to-many mode：The new TR510 FM transmitter uses the latest chip QN8007 to generate a more stable signal, and no noise is generated during transmission. The signal is relatively stable. One transmitter can correspond to multiple receivers. It is anti-serial frequency and anti- Interference, anti-eavesdropping, high security, strong confidentiality.

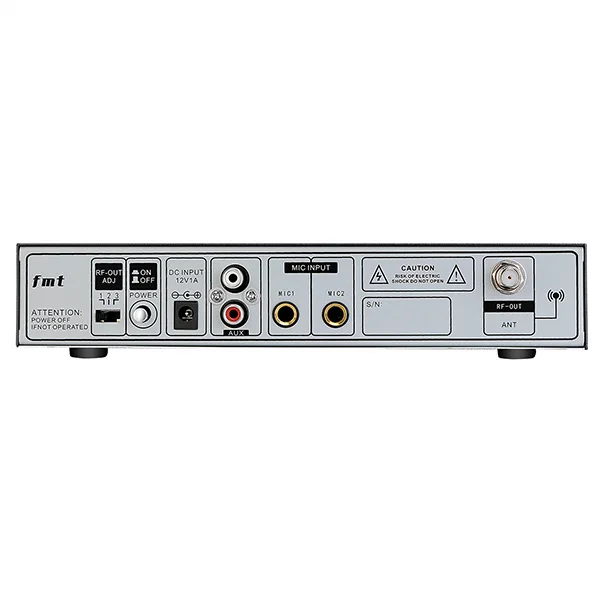

5.Music player： TR509 supports AUX/MIC input to play music. You can convert audio signals from various portable audio and video players (such as Discman, MD, MP3 (including Apple iPod)) into high-fidelity wireless FM signals. When the TR101 radio becomes the receiver, you can also listen to music quietly with headphones.

6.Multi-function device：Add Bluetooth (range more than 10m), USB flash drive and 2 microphone jack input options, making FM transmitter more convenient to use in a wide range of applications, TR101 receiver can receive all transmitters All audio, in the context of playing music, can speak.

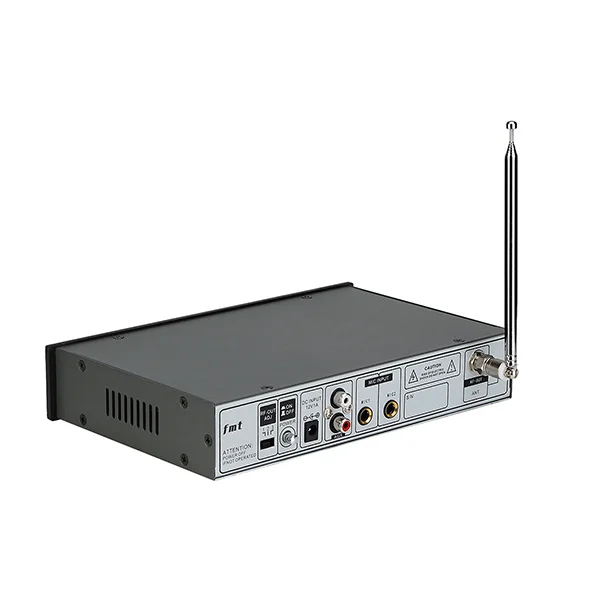

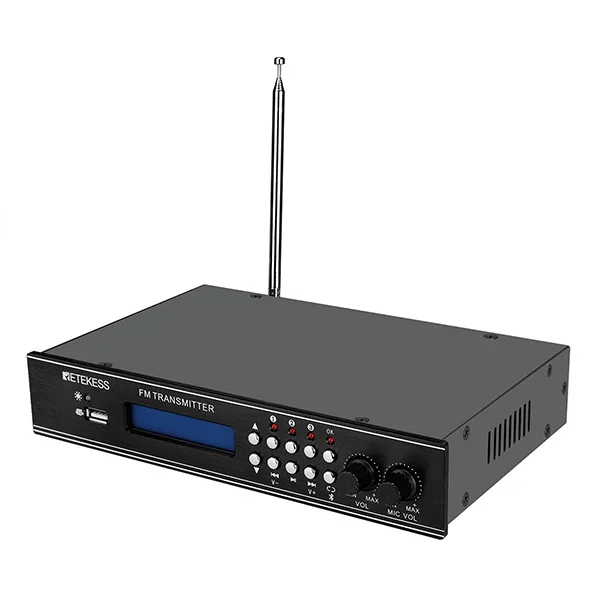

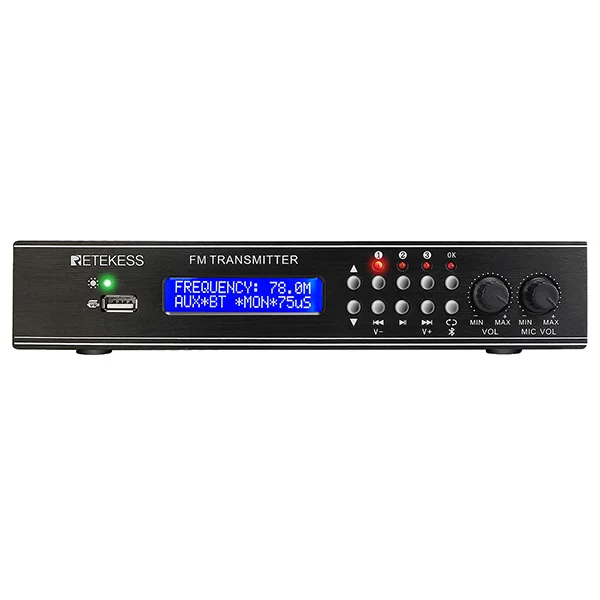

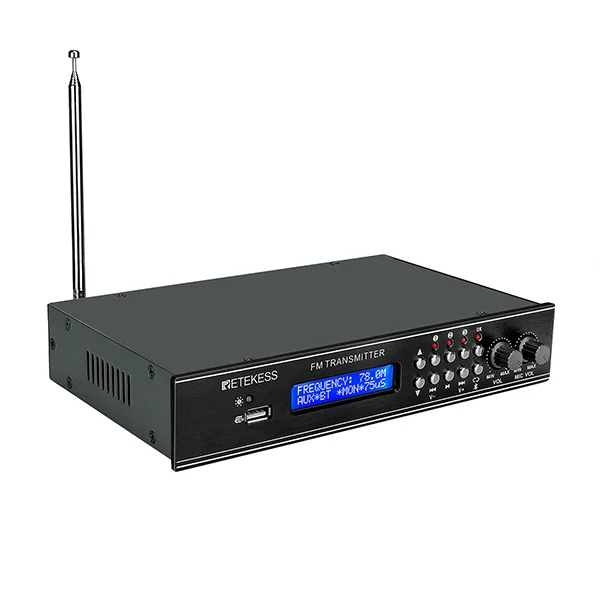

TR510 FM Broadcast Transmitter

Frequency domain

76~108Mhz

Working voltage

12V DC

Working current

1A

Frequency stability

±10PPM

Stepped frequency

100KHz

The operating temperature of the environment

-25°C~45°C

Output impedance

50ohm

Audio distortion

<0.30%

Frequency response

<=+/-1.5dB 100HZ~10KHZ

Pre-emphasis

75us / 50us

Modulation frequency deviation

<=1KHZ

SNR(Signal to Noise Ratio)

>=68 dB

Item Dimensions

235 (L) x 143 (W) x 44 (H) mm

Weight

body 862g(include antenna)

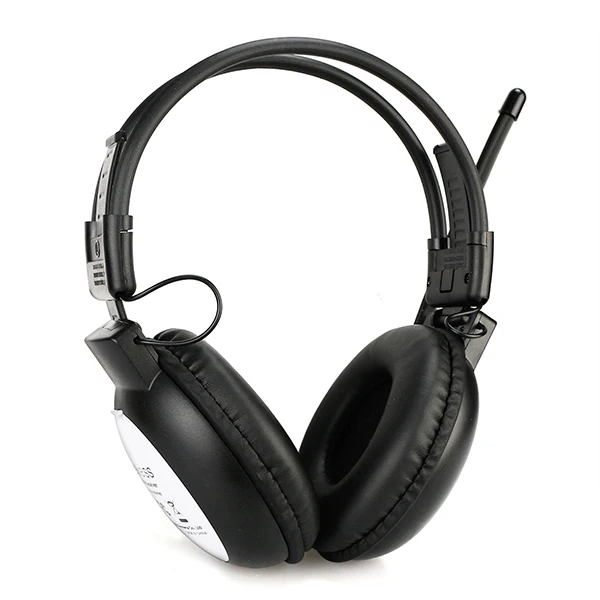

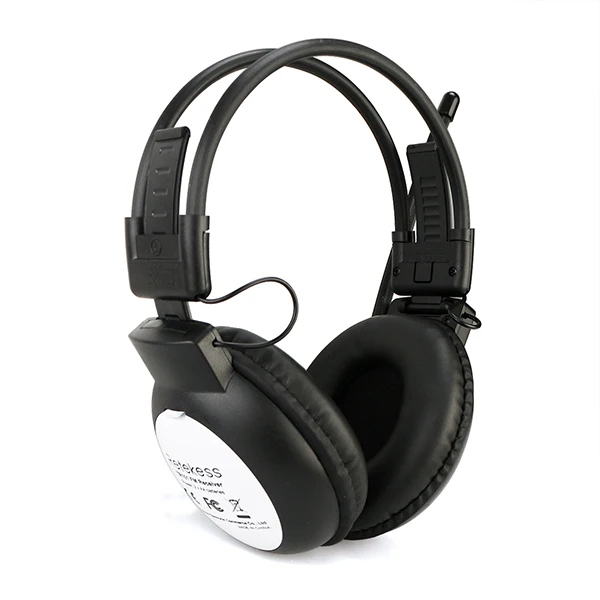

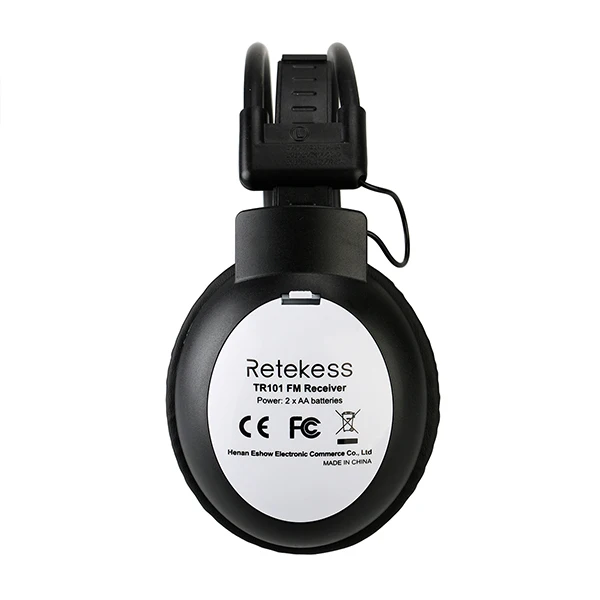

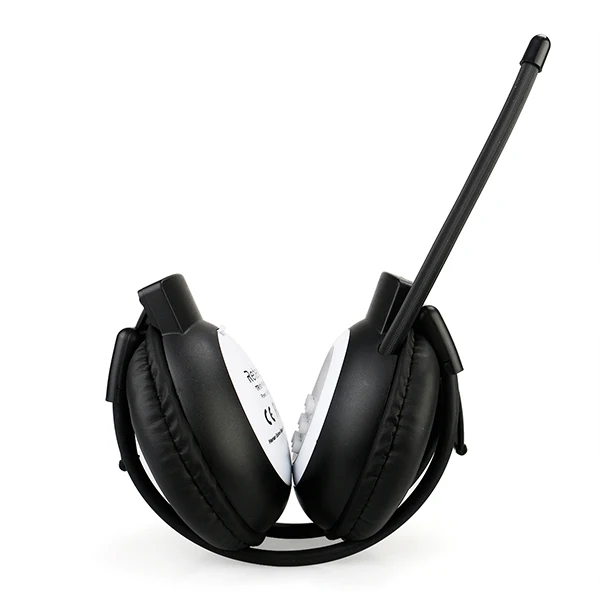

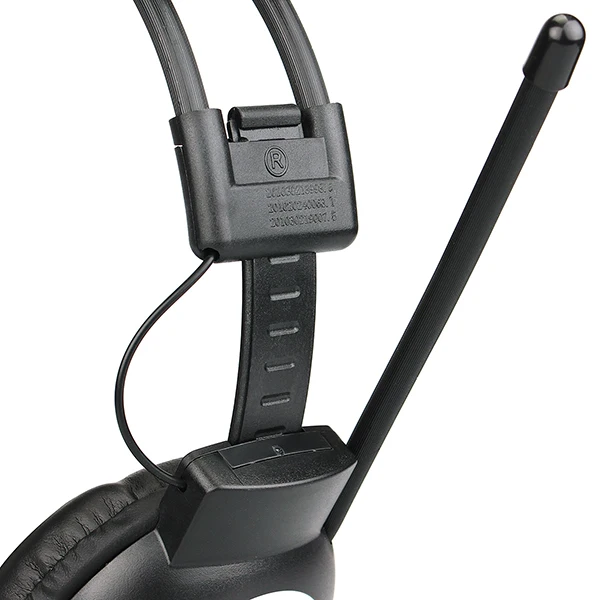

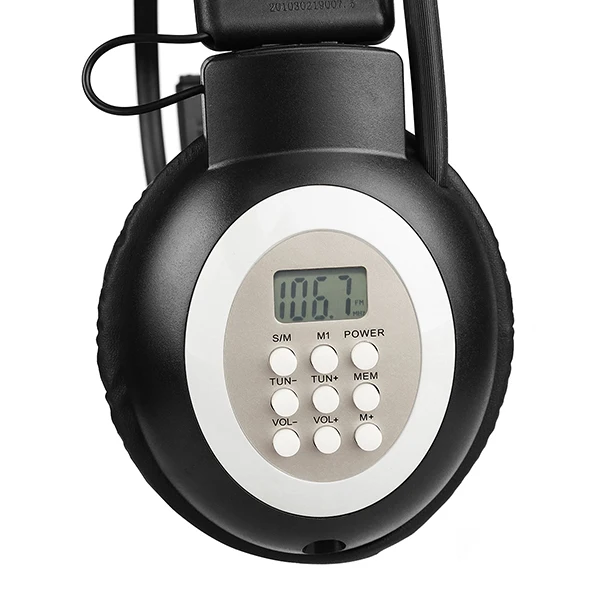

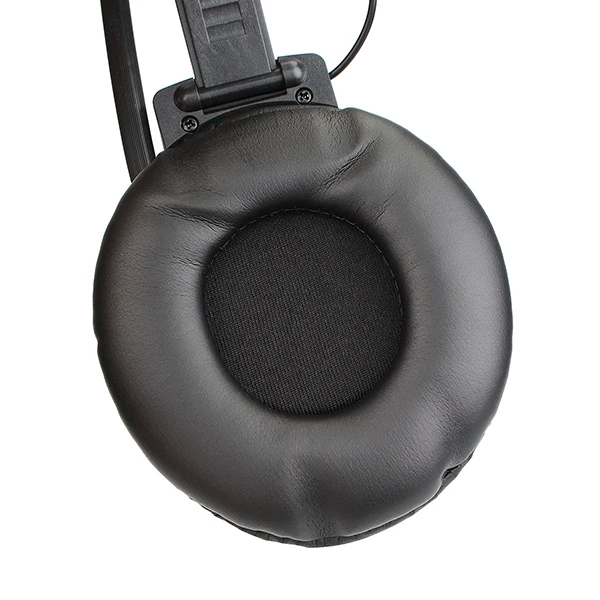

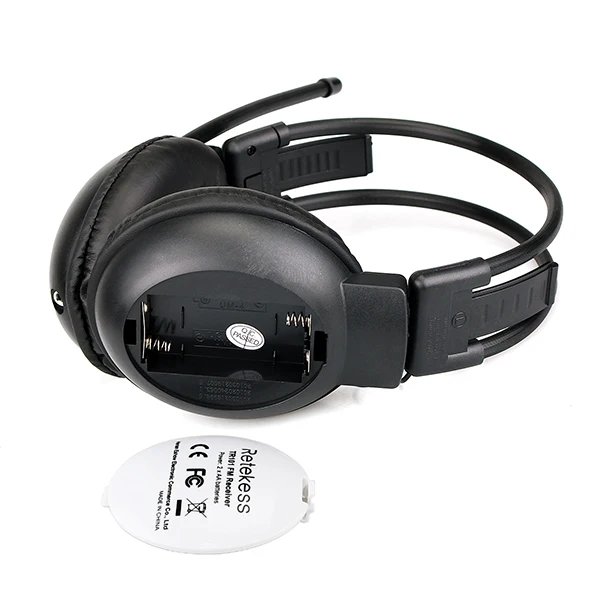

TR101 FM Headset Radio

FM frequency

87.5-108MHz

Sensitivity

≤18dB

Signal to noise ratio

45db

Stereo degree of separation

45dB

SNR

45dB

Frequency response

200Hz-20000Hz

Power supply

2 x AA batteries (not included)

Weight

187g / 0.4lb

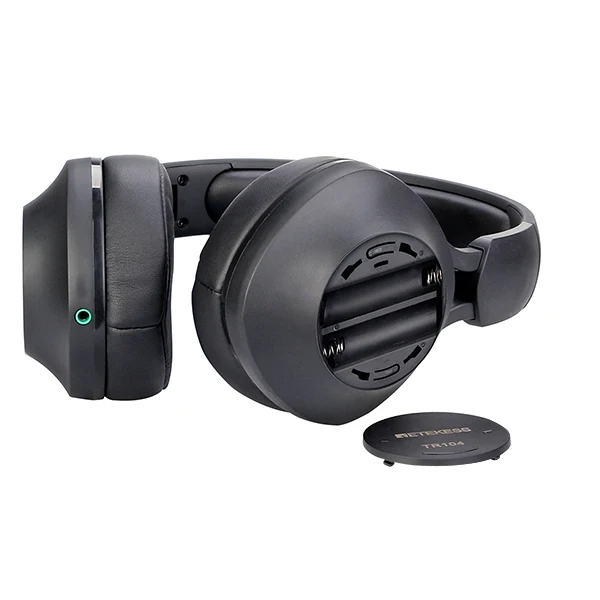

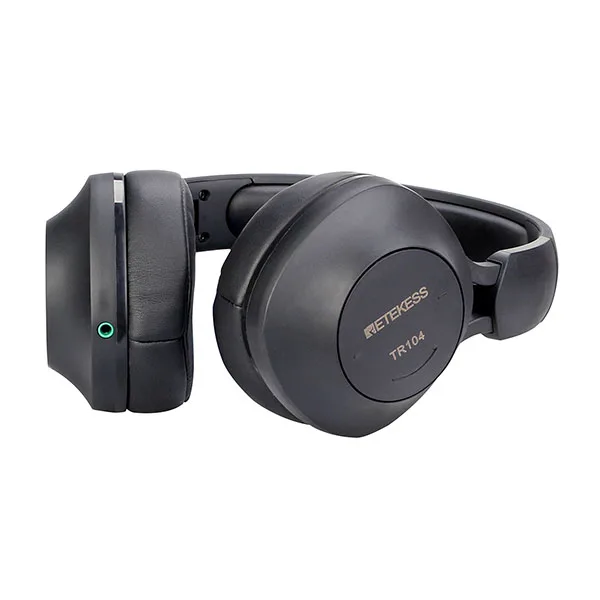

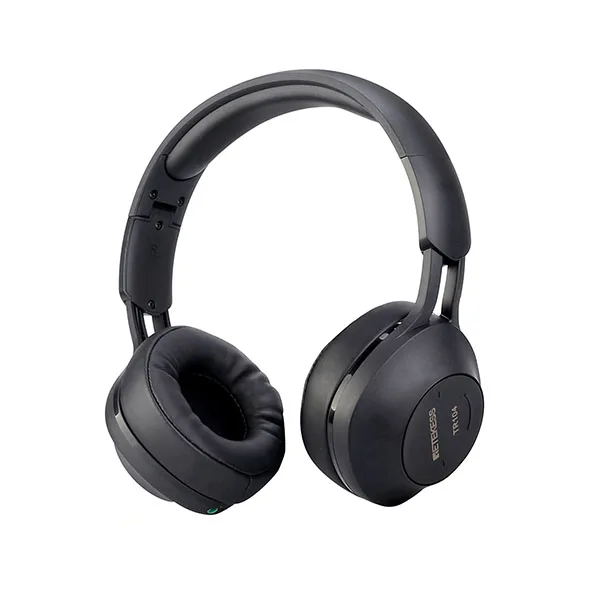

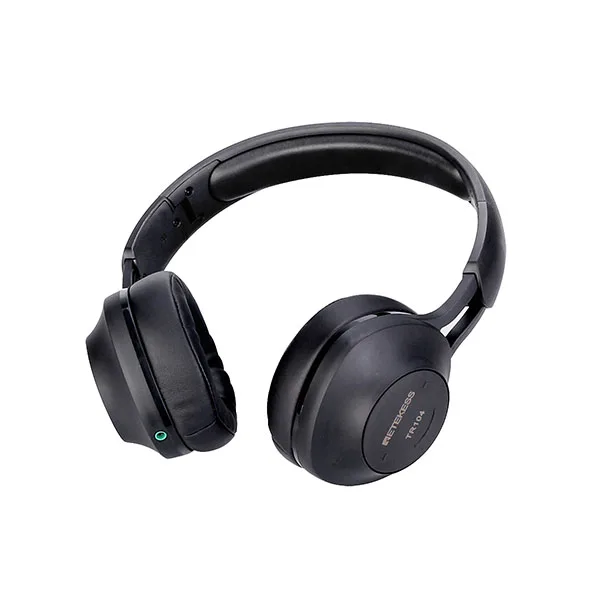

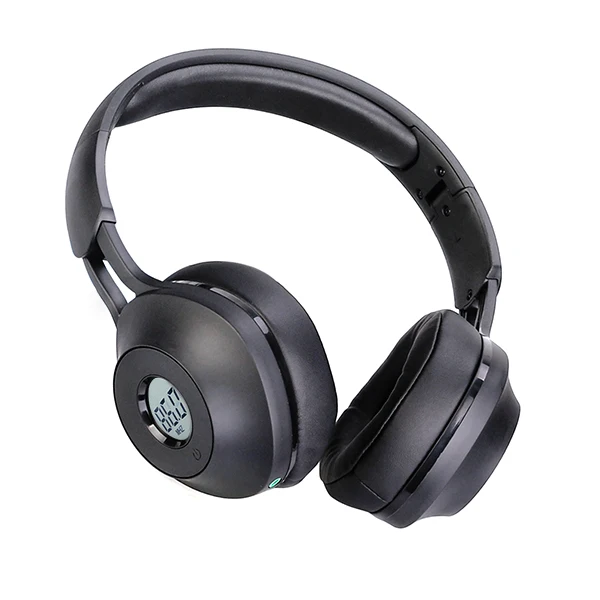

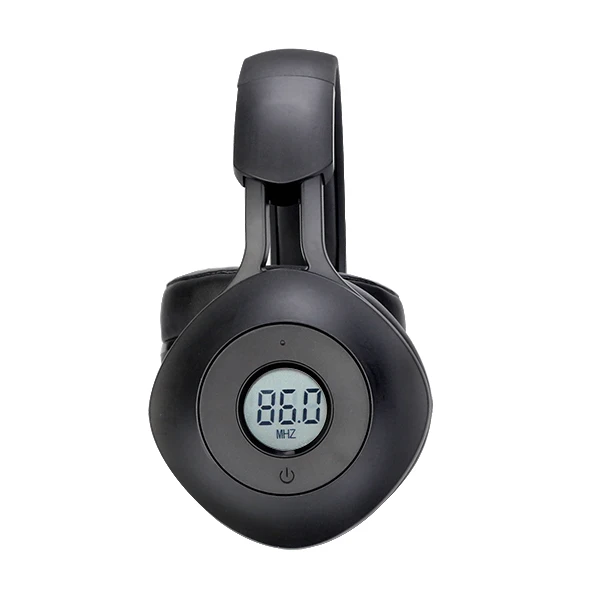

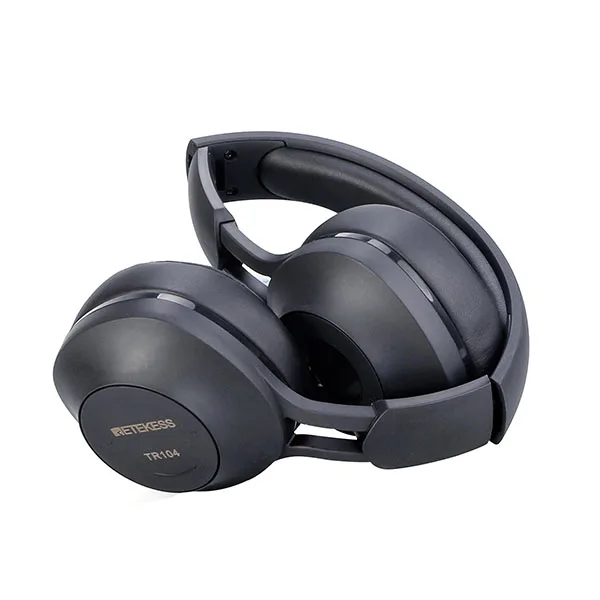

TR104 FM Headset Radio

FM frequency

87.5-108MHz

Sensitivity

＜8uV

Speaker

32Ω

Output power

≥20mW

Working current

≤65mA

Shutdown and standby current

≤65uA

Power supply

2 x AAA battery (not included)

Weight

151g

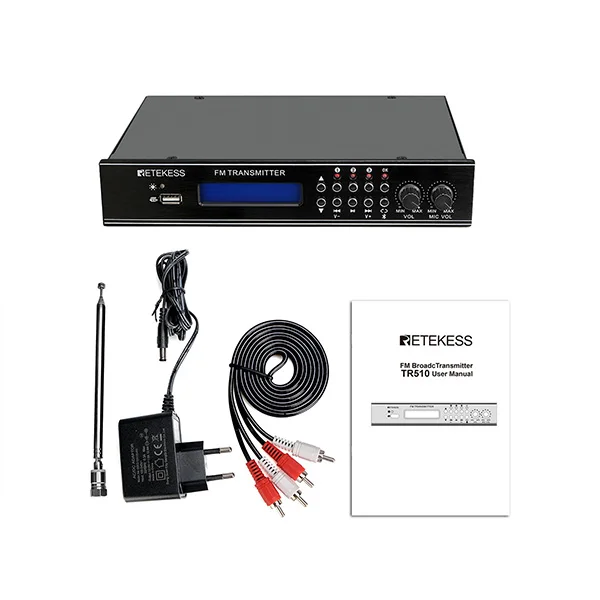

1 x TR510 Transmitter

1 x  Antenna

1 x AUX cable

1 x Adapter

1 x User Manual

10 xTR104 /TR101FM Headphone

10 x English manual forTR101/TR104
