Description:

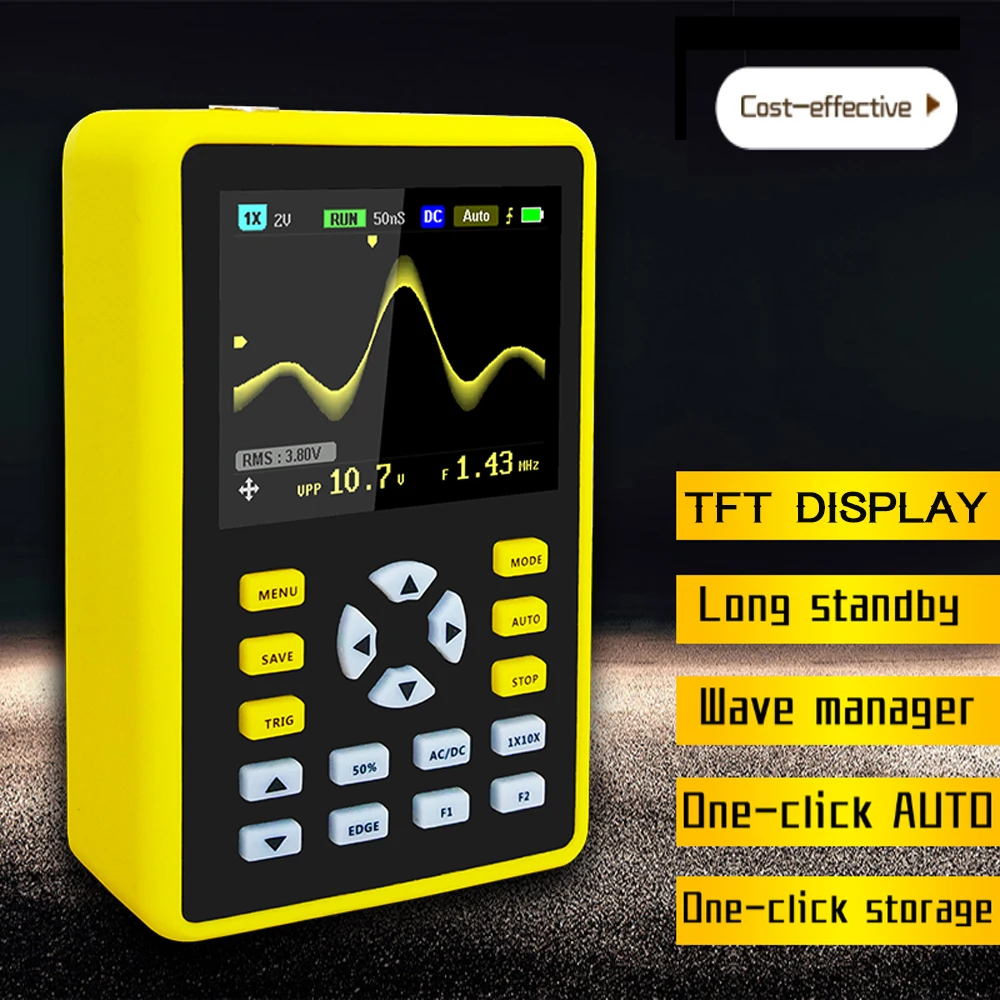

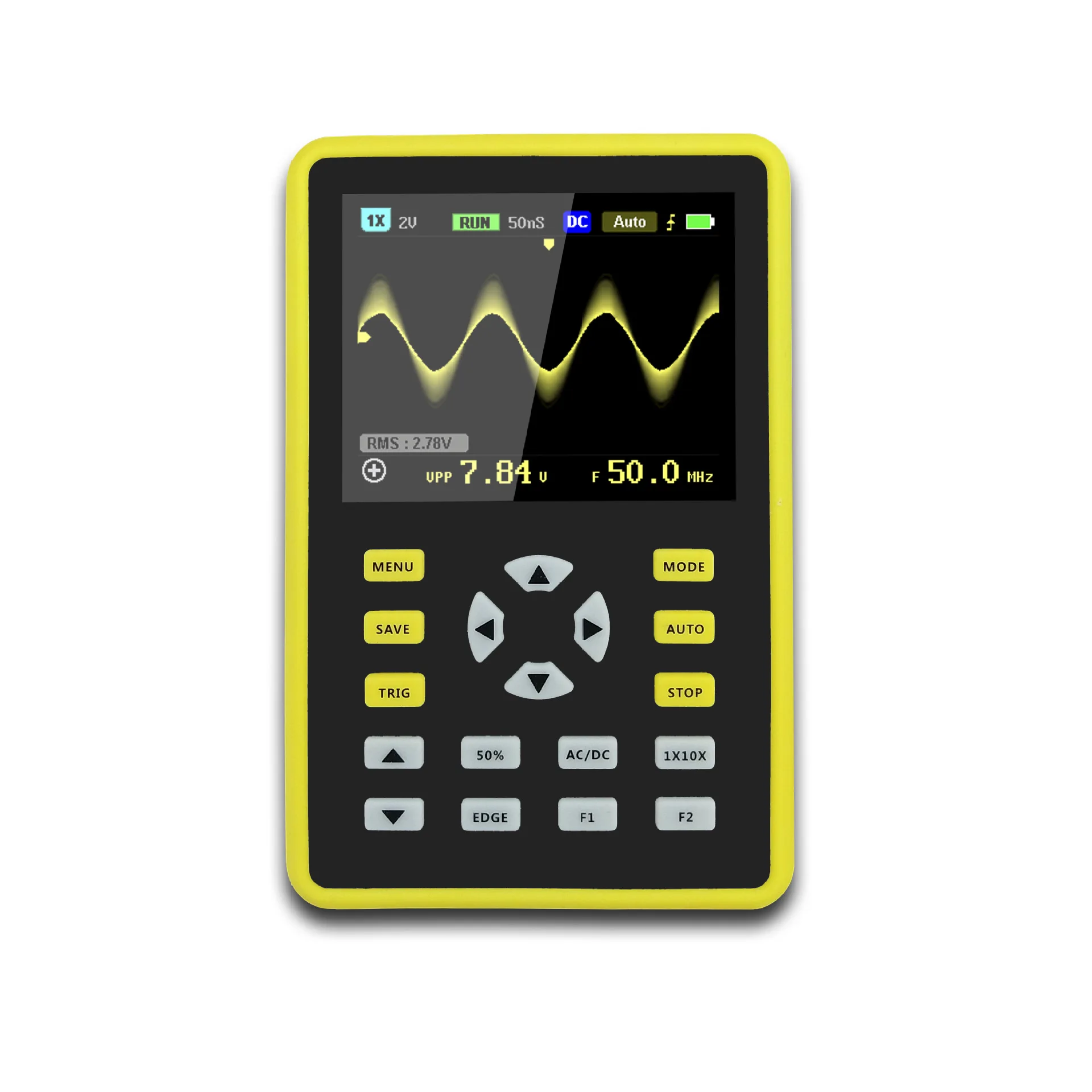

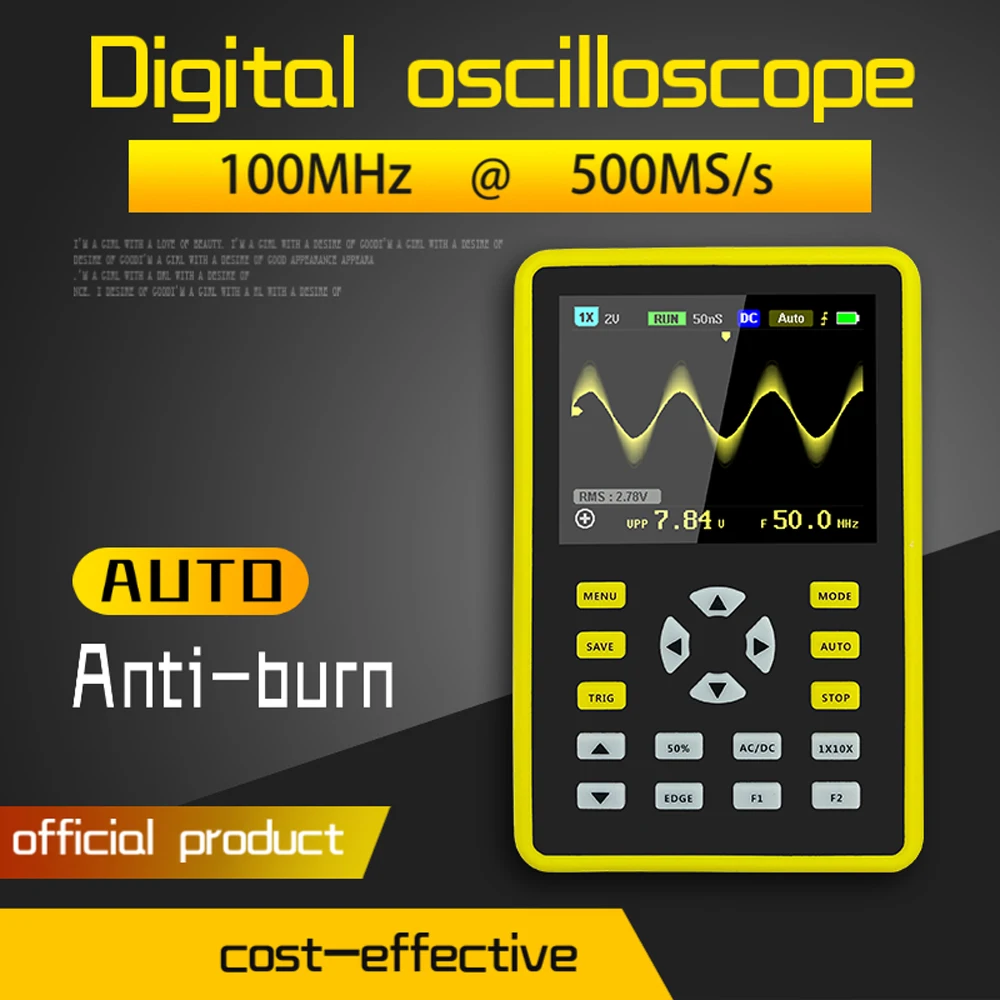

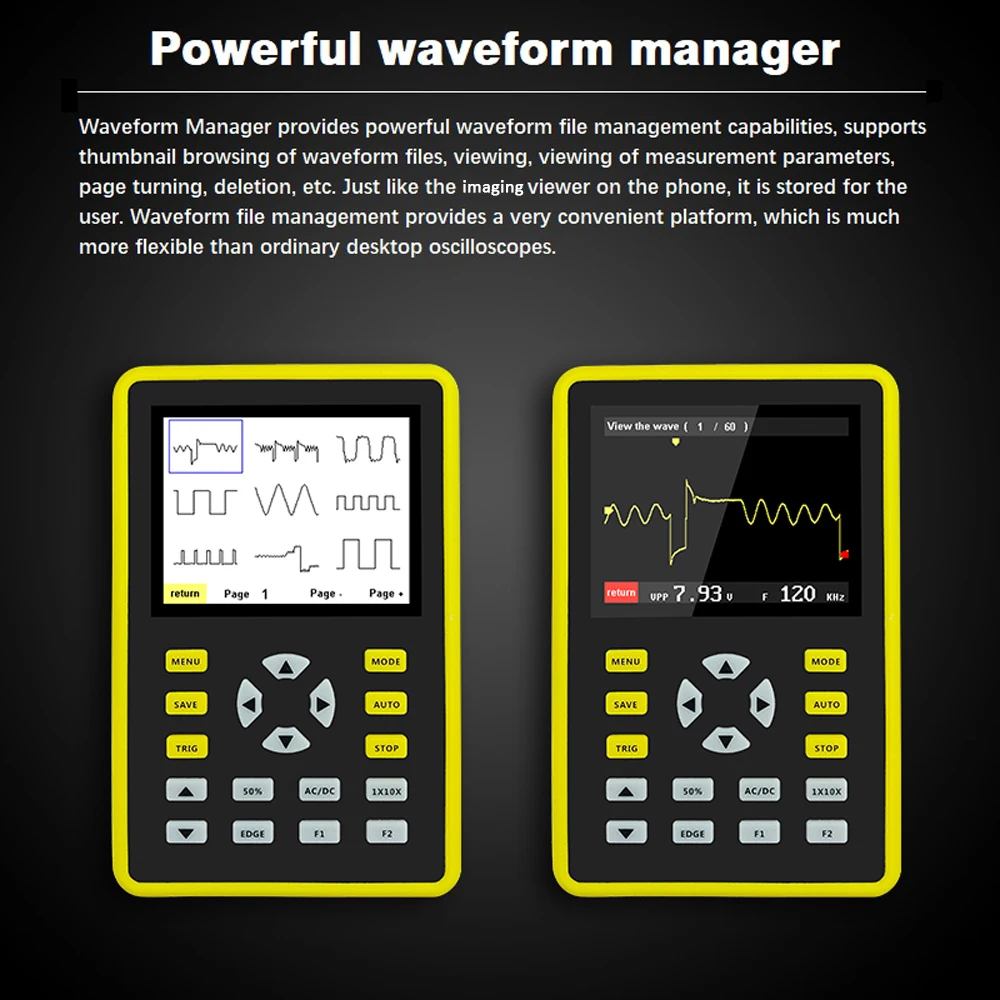

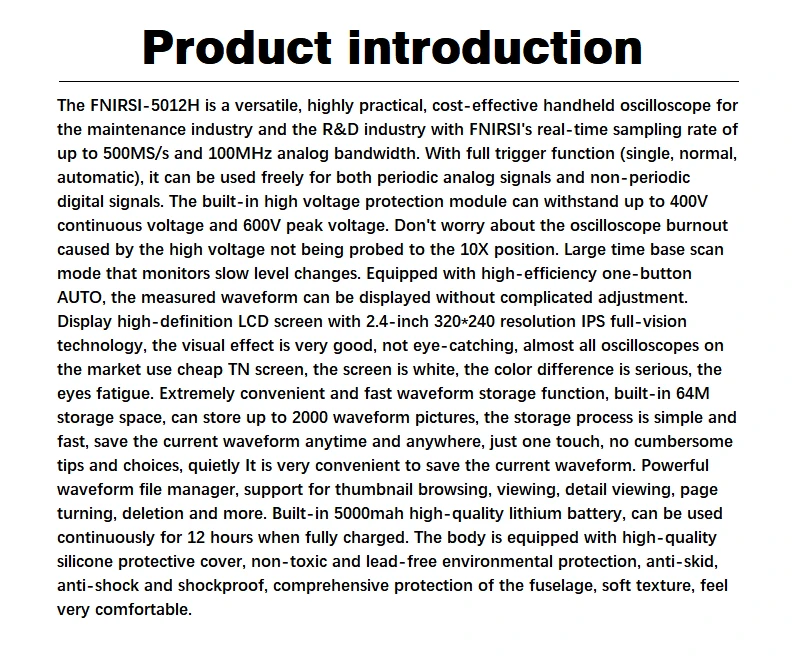

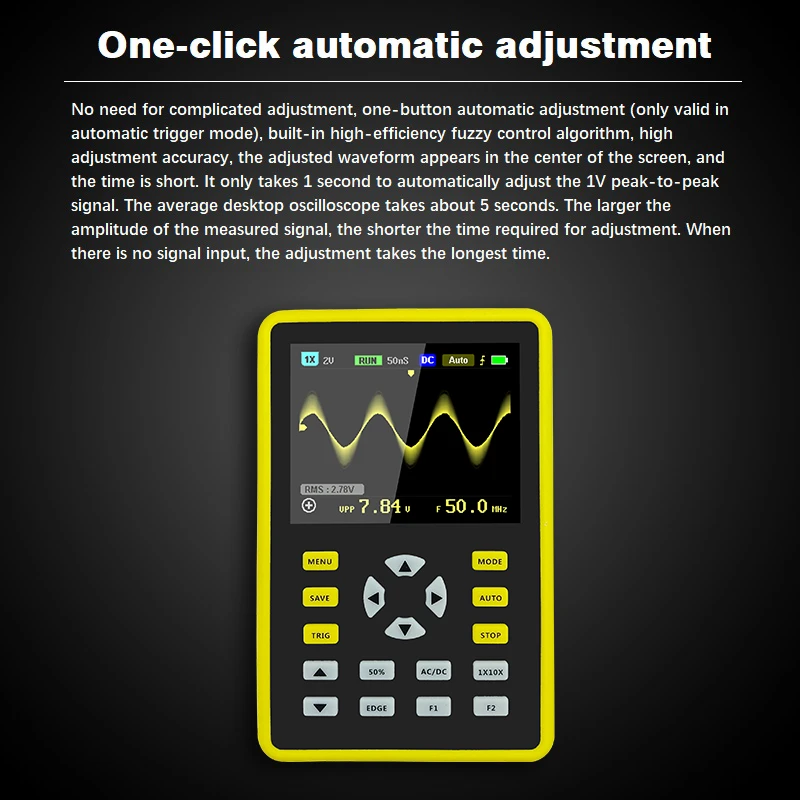

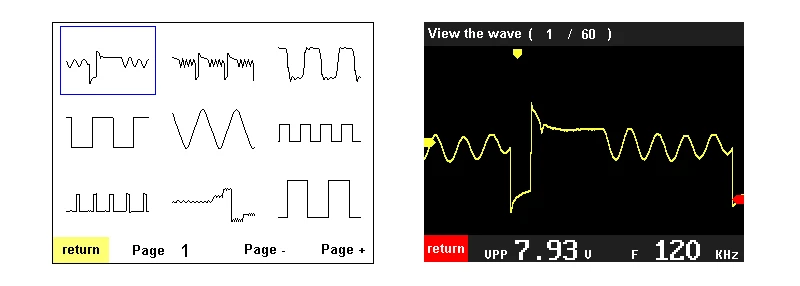

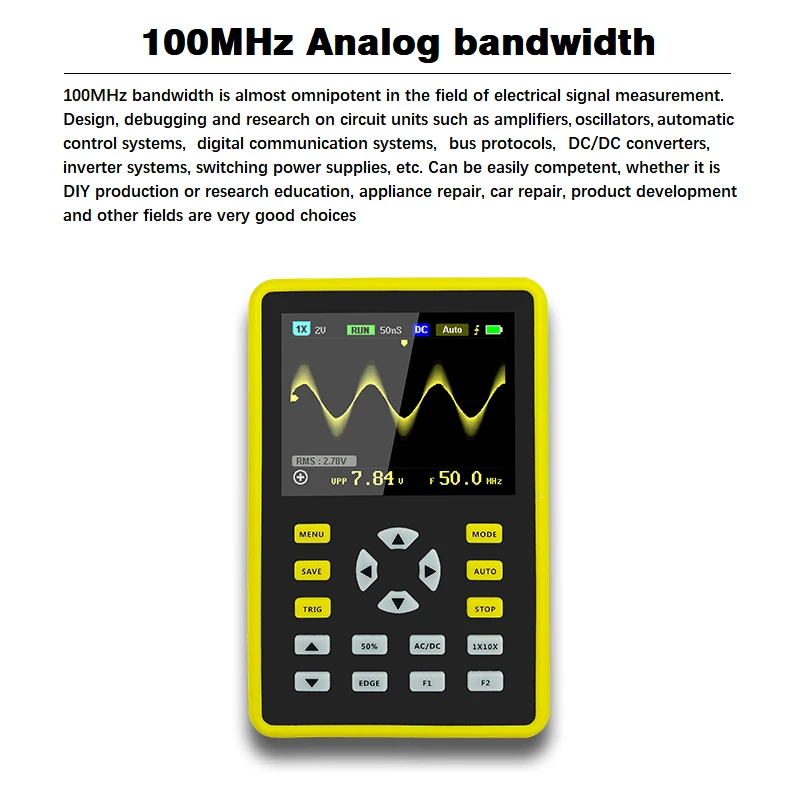

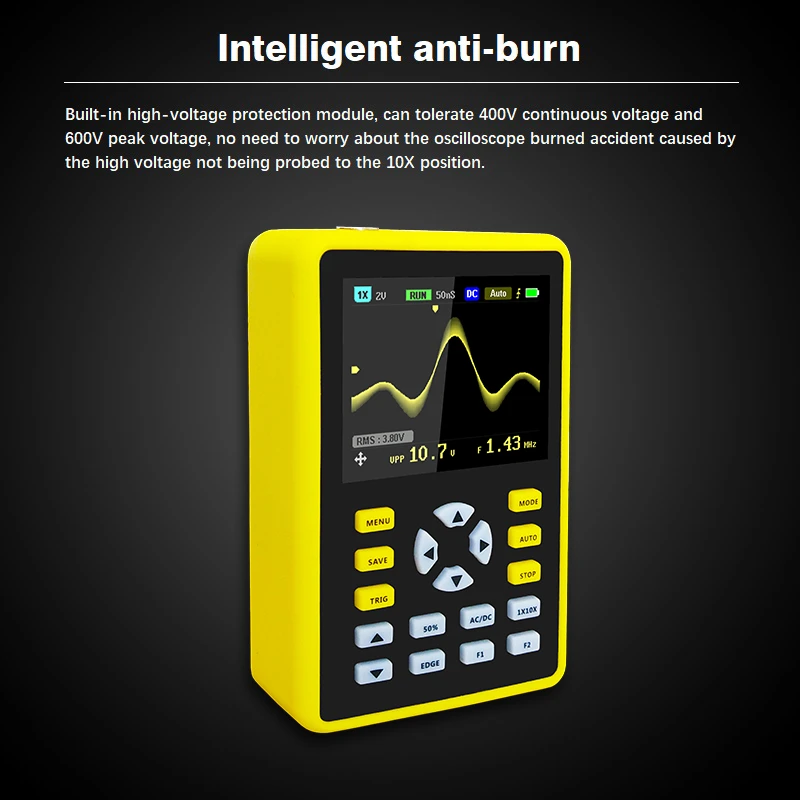

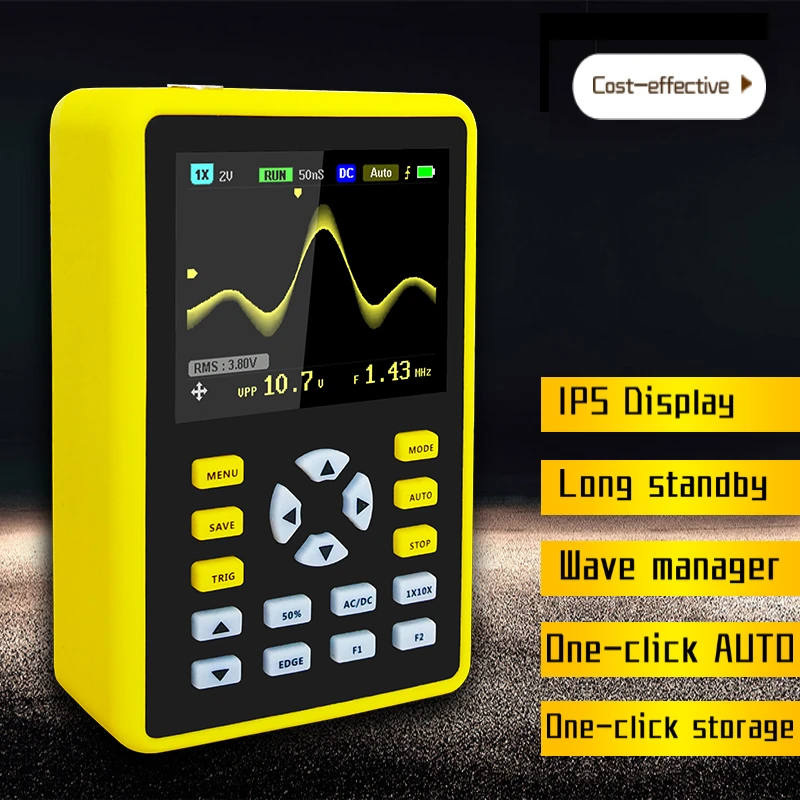

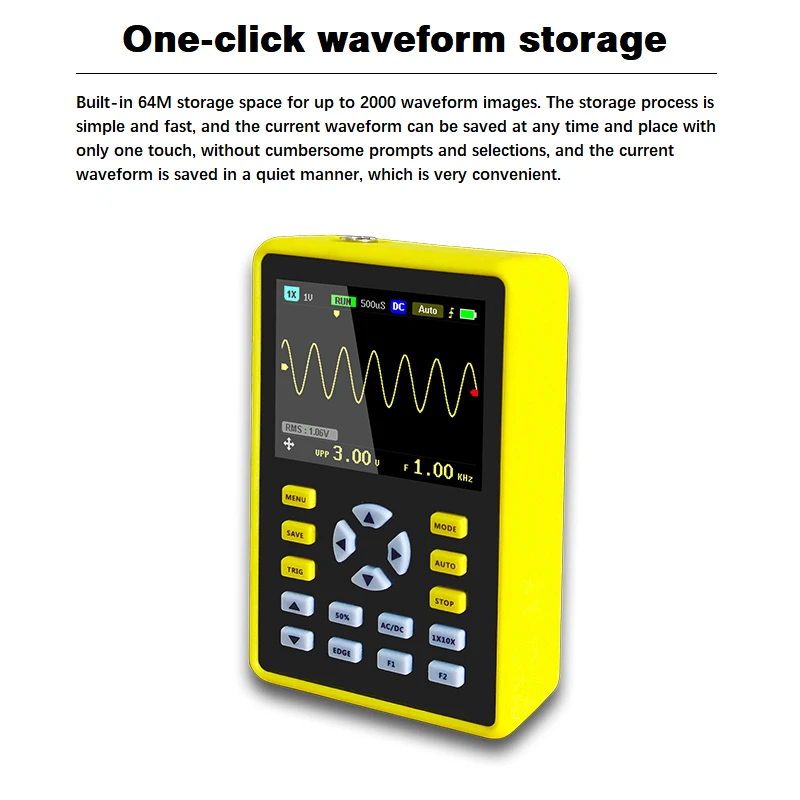

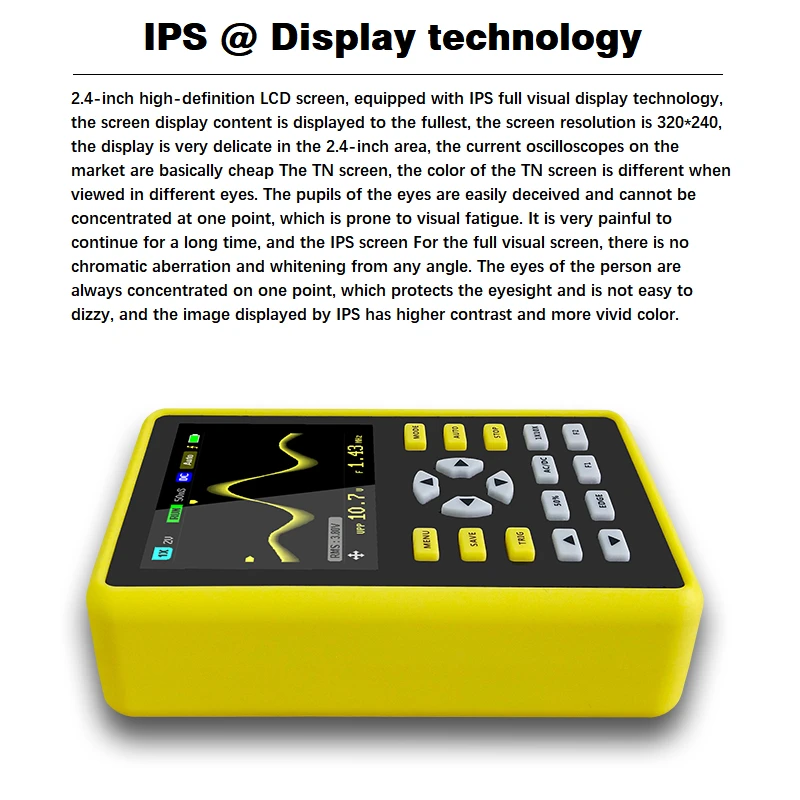

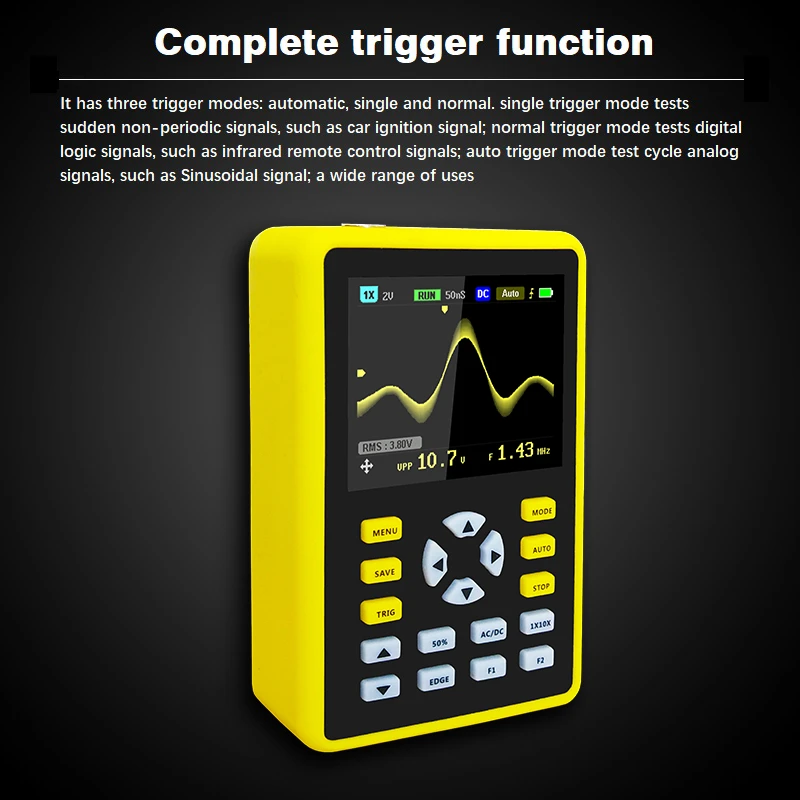

The FNIRSI-5012H is a versatile, highly practical, cost-effective handheld oscilloscope for the maintenance industry and the R&D industry with FNIRSI's real-time sampling rate of up to 500MS/s and 100MHz analog bandwidth. With full trigger function (single, normal, automatic), it can be used freely for both periodic analog signals and non-periodic digital signals. The built-in high voltage protection module can withstand up to 400V continuous voltage and 600V peak voltage. Don't worry about the oscilloscope burnout caused by the high voltage not being probed to the 10X position. Large time base scan mode that monitors slow level changes. Equipped with high-efficiency one-button AUTO, the measured waveform can be displayed without complicated adjustment. Display high-definition LCD screen with 2.4-inch 320*240 resolution. Extremely convenient and fast waveform storage function, built-in 64M storage space, can store up to 2000 waveform pictures, the storage process is simple and fast, save the current waveform anytime and anywhere, just one touch, no cumbersome tips and choices, quietly It is very convenient to save the current waveform. Powerful waveform file manager, support for thumbnail browsing, viewing, detail viewing, page turning, deletion and more. Built-in 3000mah high-quality lithium battery, can be used continuously for 8 hours when fully charged. The body is equipped with high-quality silicone protective cover, non-toxic and lead-free environmental protection, anti-skid, anti-shock and shockproof, comprehensive protection of the fuselage, soft texture, feel very comfortable.   Key features: 1:Intelligent anti-burn,1X Can withstand up to 600V withstand voltage 2:Afterglow display technology 3:2.4 inch color display screen 4:100MHz analog bandwidth @ 500MS/s sampling rate(1X = 5MHz,10X = 100MHz) 5:One-button waveform storage 6:Built-in 64M storage space, the maximum storage of 2000 waveform pictures 7:Powerful waveform file manager, support thumbnail browsing, viewing, details view, flip, delete and other functions 8:High measurement voltage range, 1X can measure 0 ~ 80 V, 10X can measure 0 ~ 800V 9:Up to 12 parameters measurement:VPP,VP,Vmax,Vmin,Vavg,Vrms,Frequent,Duty+,Duty-,Time+,Time-,Time 10:At any time, the waveform display (pause function) is frozen 11:Equipped with high efficiency One-button AUTO 12:Complete triggering function (single, normal, automatic) 13:Built in 3000mAh rechargeable lithium battery,Fully charged for 8 hours of continuous use 14:Screen brightness adjustment 15:Memory compression technology, waveform refresh screen does not flicker 16:Anti-slip anti-drop silicone sleeve 17:Ultra small volume, easy to carry   Specifications: 1:Analog band width: 100MHz 2:Maximum real time sampling rate: 500MS/s 3:Vertical sensitivity: 50 mV/div ~ 100 V/div 4:Horizontal time base range: 50S/div ~ 6nS/div 5:Maximum test voltage: 80 V (1X probe), 800 V (10X probe) 6:Storage depth: 128KB 7:Input resistance: 1M 8:ADC precision: 8bits 9:Coupling mode: AC/DC 10:Trigger mode: Single, Normal, Auto 11:Trigger edge: Ascending/descending edge 12:External trigger voltage 0-80 V 13:Display: 2.4 inch - 320*240 14:Power supply: 3000 mAh lithium battery 15:Size: 114mm x 74mm x 33mm  16:Weight: 250g   Package includes: 1 x FNIRSI-5012H oscilloscope host 1 x Matching 100MHz probe(1X and 10X) 1 x Micro USB data line 1 x User manual (English) 1 x High quality package
