POMIACAM 4K cctv tester cctv monitor for camera Ip camera tester IPC tester poe testers camera CCTV camera tester CCTV camera

V6:=IP+H.265+4K 12MP/8MP

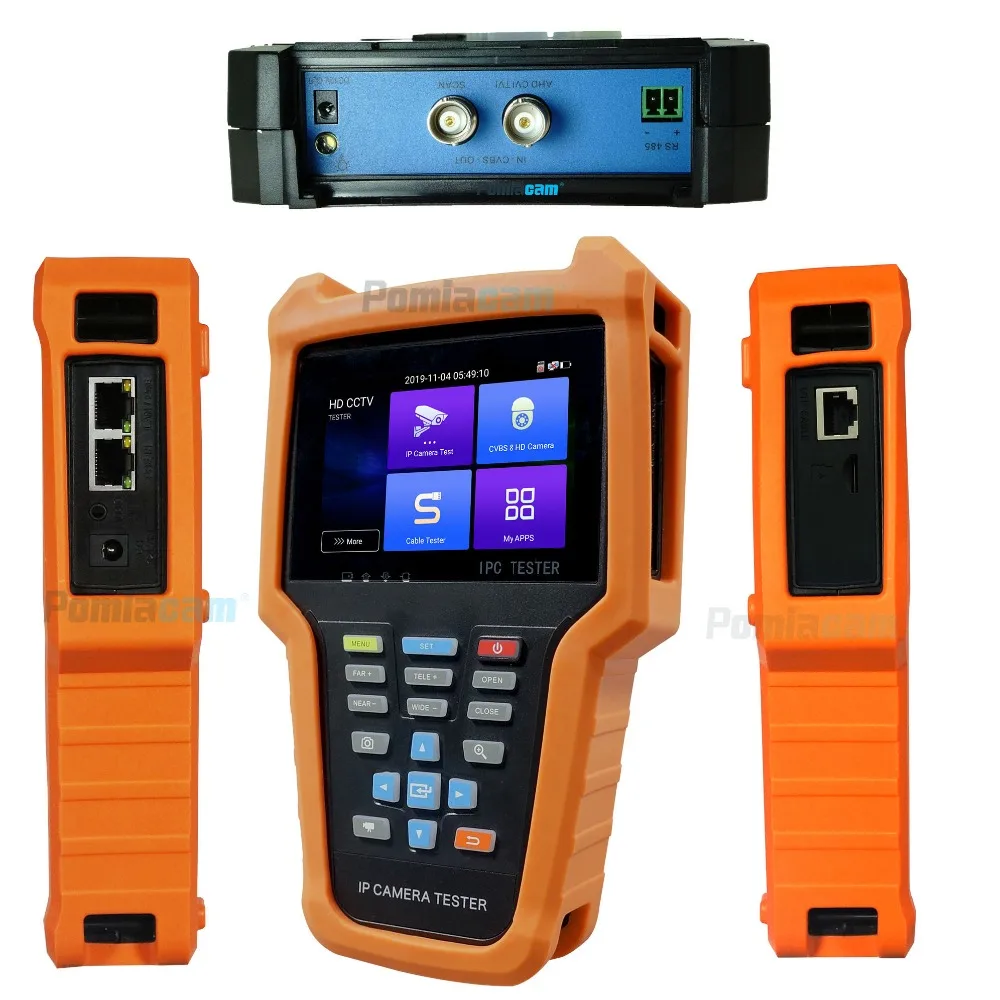

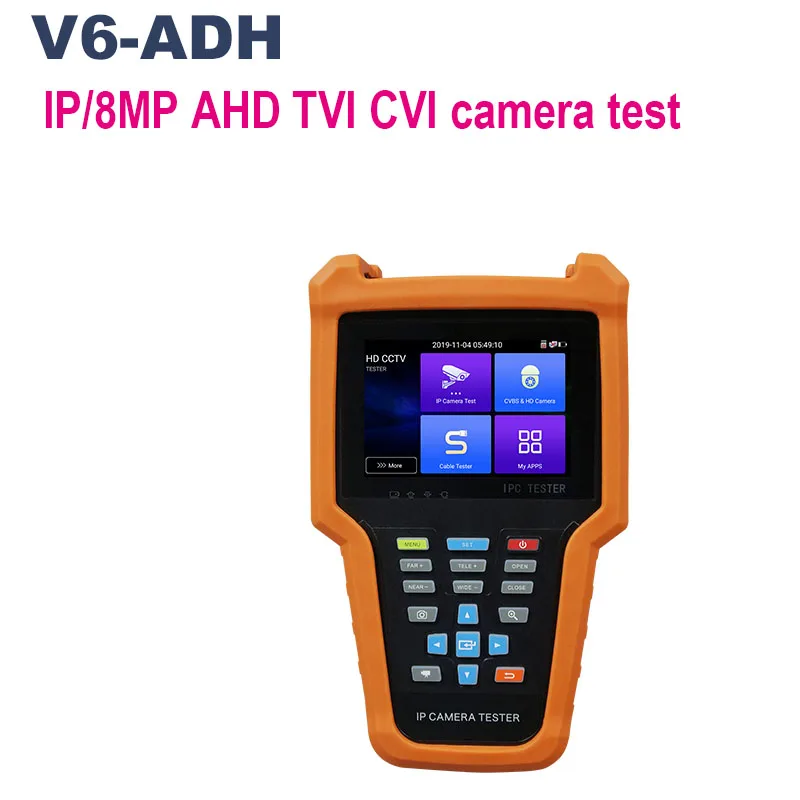

V6ADH:=IP+CVBS+AHD+CVI+TVI H.265+4K 12MP/8MP

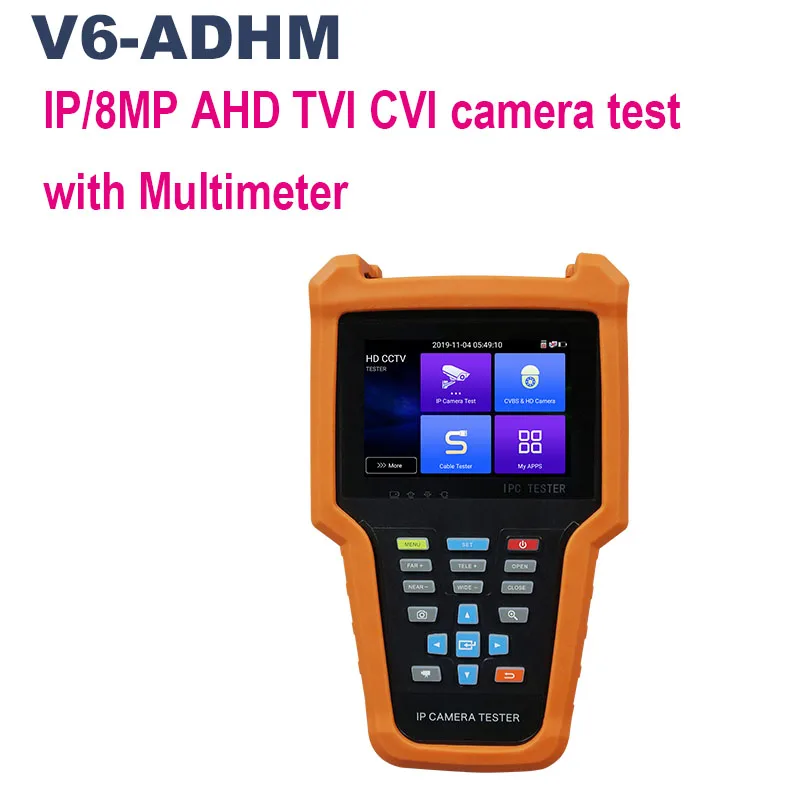

V6ADHM:=V6ADH+Multimeter

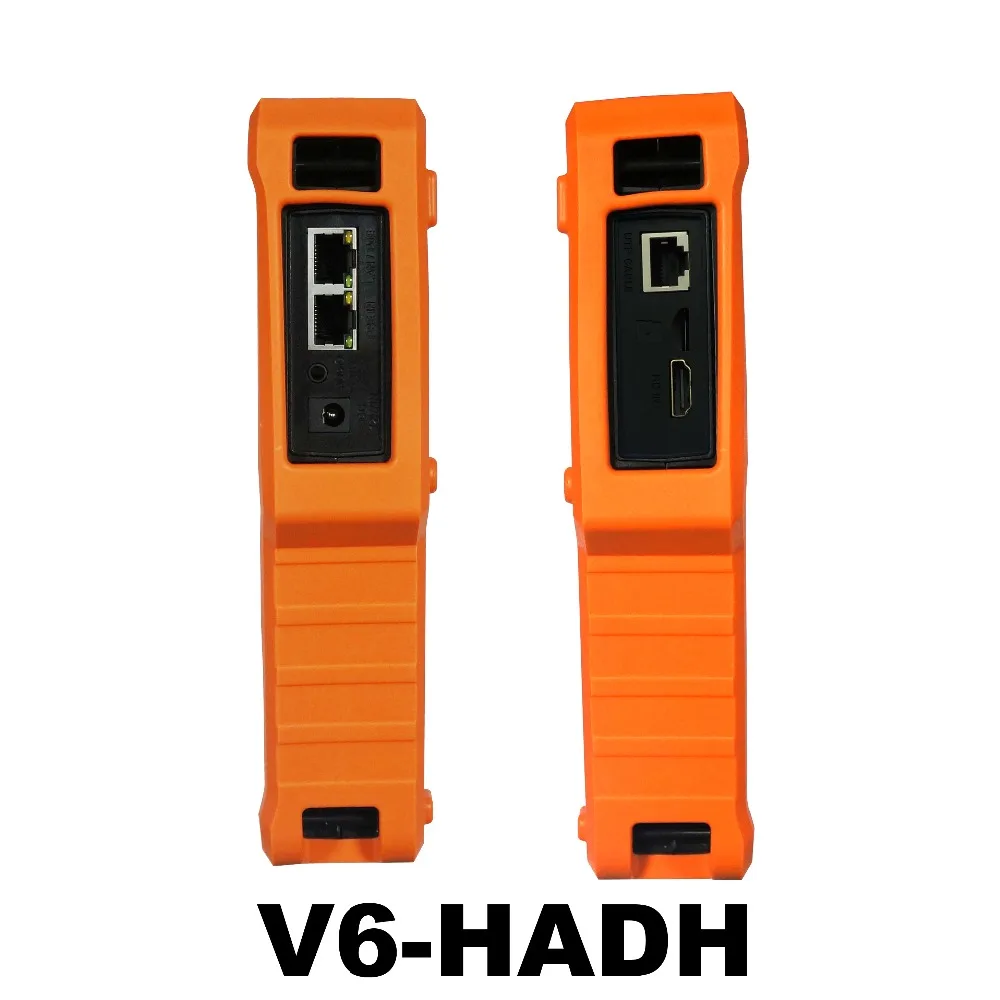

V6HADH:=V6ADH+HDMI input

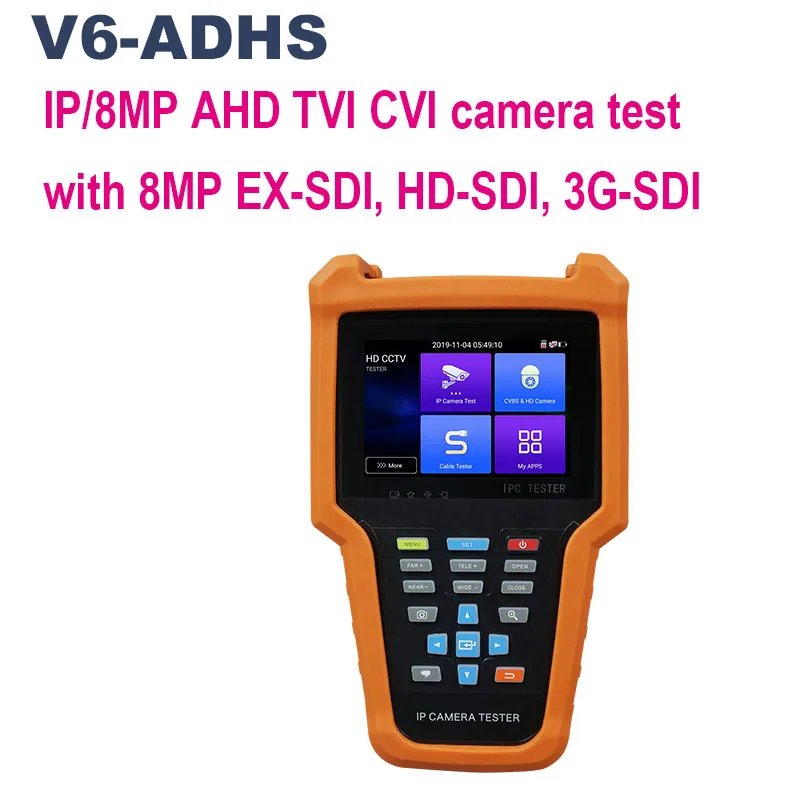

V6ADHS:=IP+CVBS+AHD+CVI+TVI+SDI

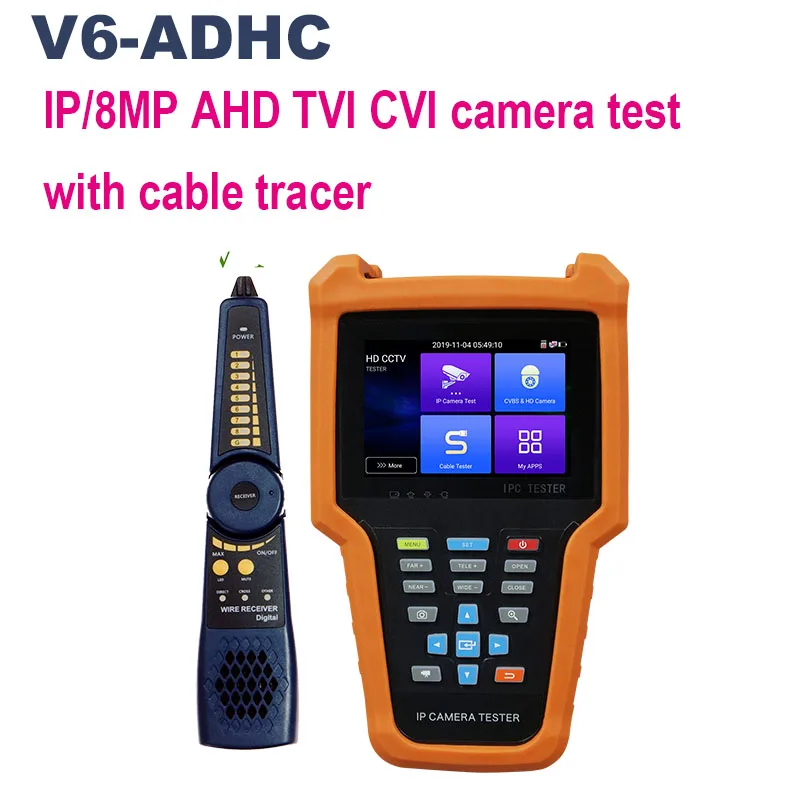

V6ADHC:=V6ADH+cable tracer

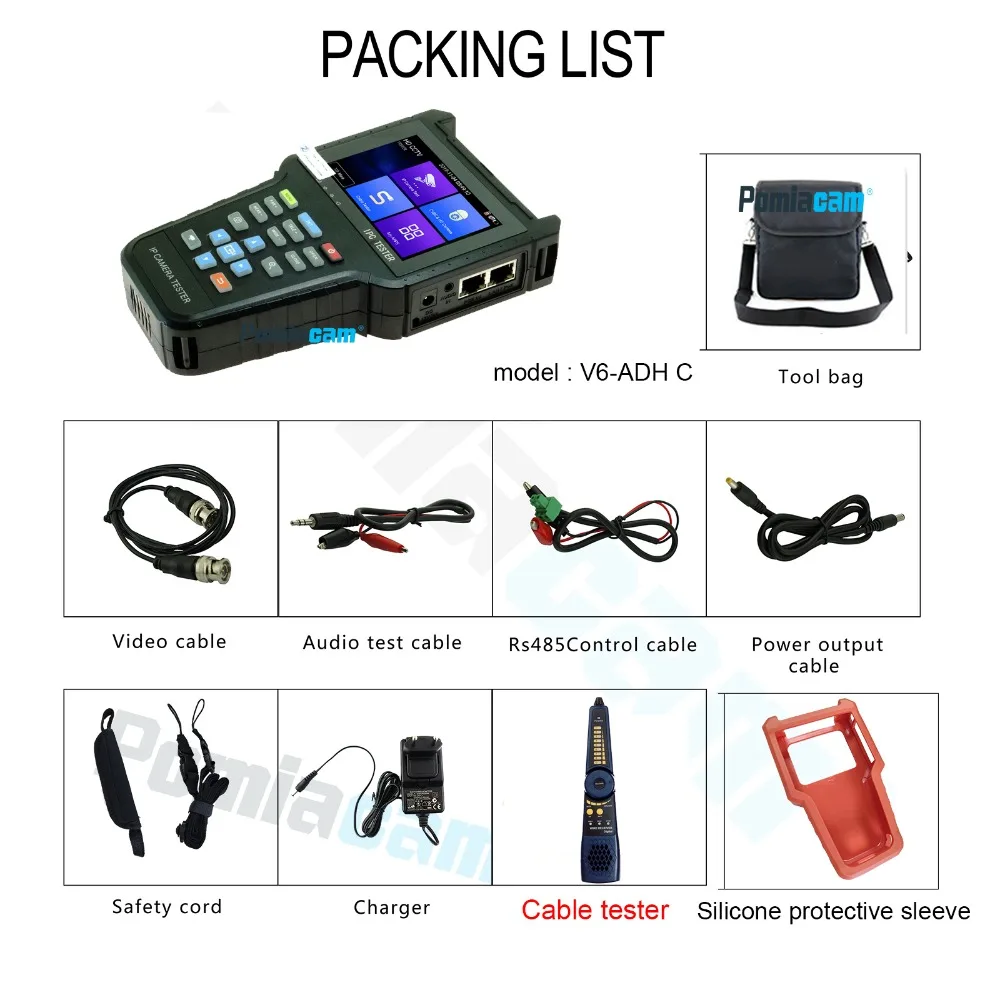

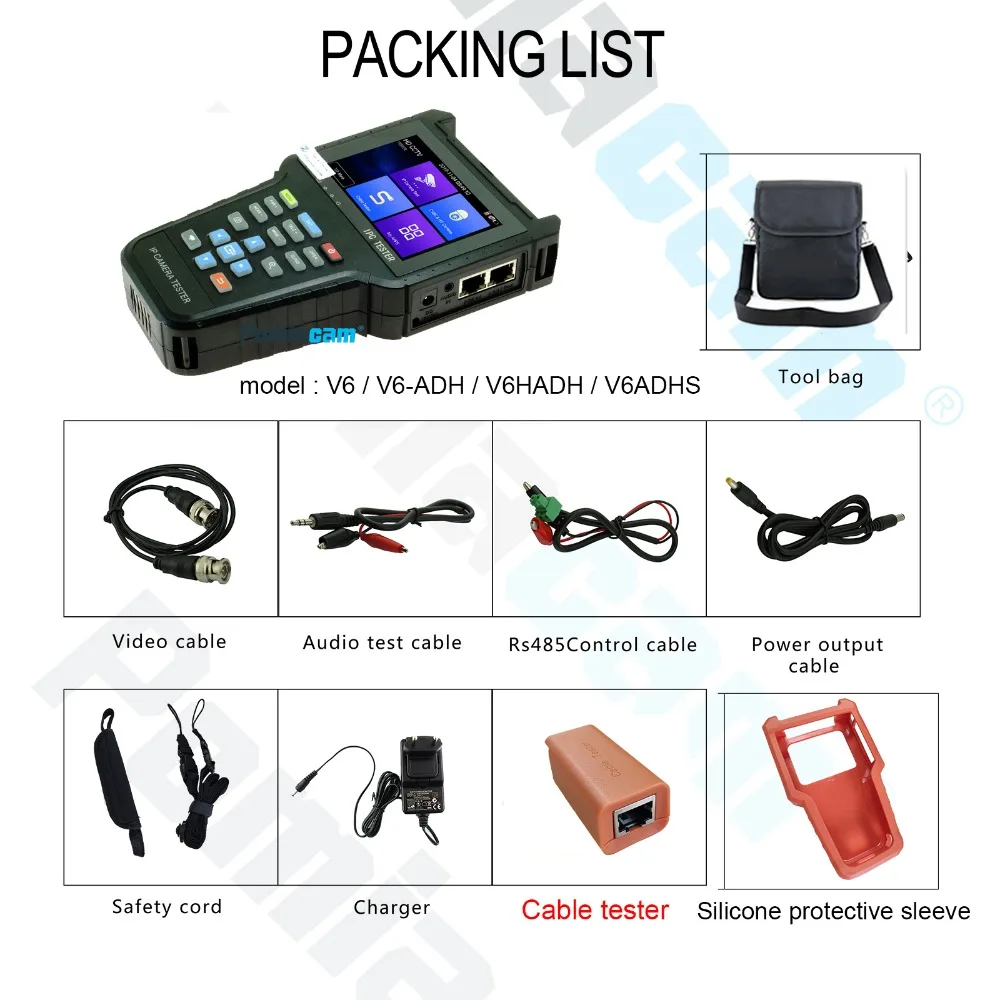

packing list :

1) Cable tester

2) CCTV tester monitor

3) Adaptor DC12V 1A

4) Polymer lithium ion battery (7.4V DC 3300mAh)

5) Tool bag / DC Power cable/BNC cable/ RS485 cable/ Audio cable/ Safety cord

6) English Manual

 Handheld 4" waterproof dustproof interface HD CCTV Tester

● 4 inch IPS touch screen, 960*640 resolutions

● 8MP CVI/ TVI/ AHD, 8MP EX-SDI, HD-SDI, 3G-SDI(optional )

● H.265/H.264, 4K video display via mainstream

● Chrome browser, test and set Axis camera

● AutoHD, automatic recognition of HD coaxial cameras

● HDMI Input, support 1080P

● DC12V 3A, DC 48V PoE power output

● RJ45 cable TDR test, cable quality test

● Rapid ONVIF& HD camera's Lens simulation and focus

function

● Interface waterproof and dustproof

● Backlight buttons, easier to operate in the dark

● Tester Play: Tester, mobile phone, PC display at the same time


Camera test:

● 4 inch IPS touch screen, 960x640 resolutions

● H.265 & H .264 IP, 4K video display via mainstream

  ●8MP TVI test,3840 x 2160P 12.5/15 FPS,4xzoom ,video record &playback ,coaxial PTZ control & call OSD menu *

  ●8MP AHD test, 3840x2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu *

  ●8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu *

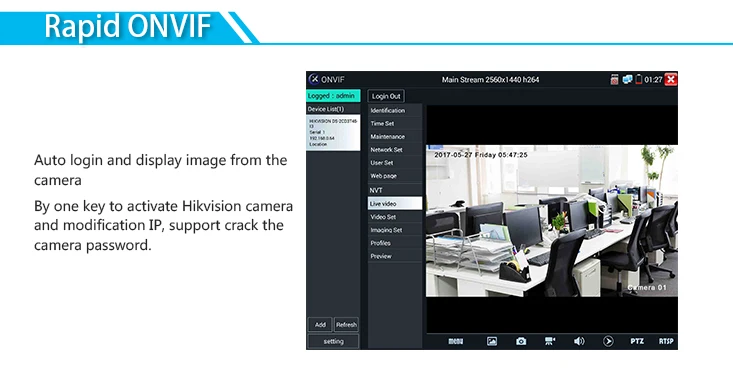

● Rapid ONVIF, Auto log in and display image, create testing report

● AXIS, Hikvision camera test, enter ONVIF app, input username and password to test

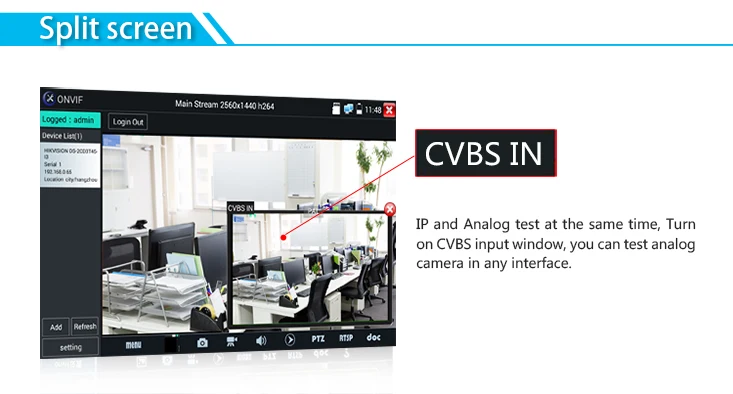

● IP and analog display image at the same time

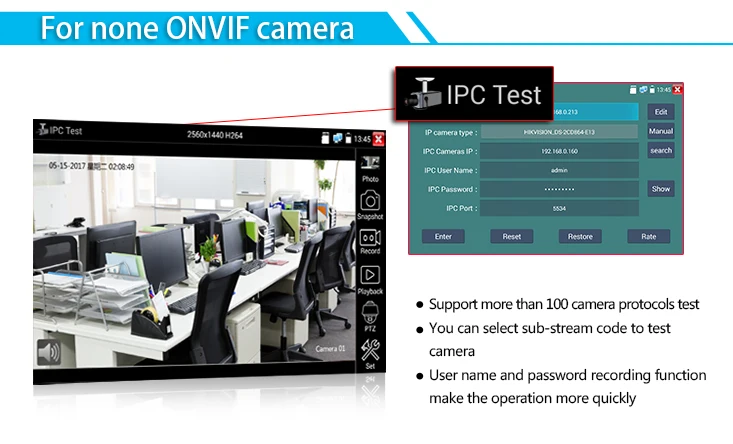

● IPC TEST (Non-ONVIF test) ,HIK test tool (Hikvision camera),DH test tool (Dahua camera)

● CVBS camera test, PTZ controller

● DC12V/3A power output, camera can be powered from DC 12 Votage .

●Rapid video, just by one key to detect all network cameras and auto display

●Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot

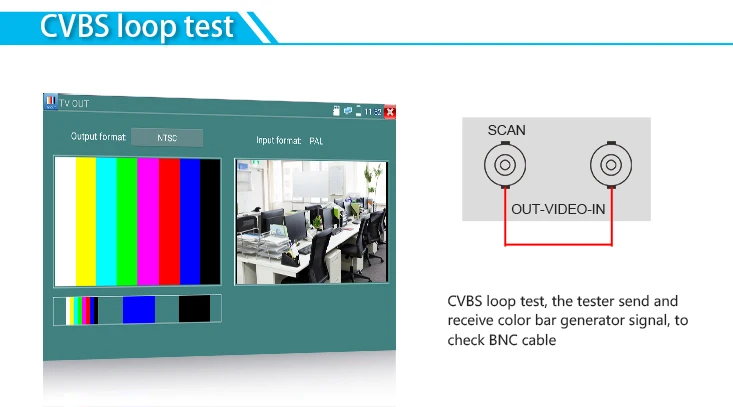

● CVBS loop test, the tester send and receive color bar generator signal, to check BNC cable

● Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator

Cable test:

● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized

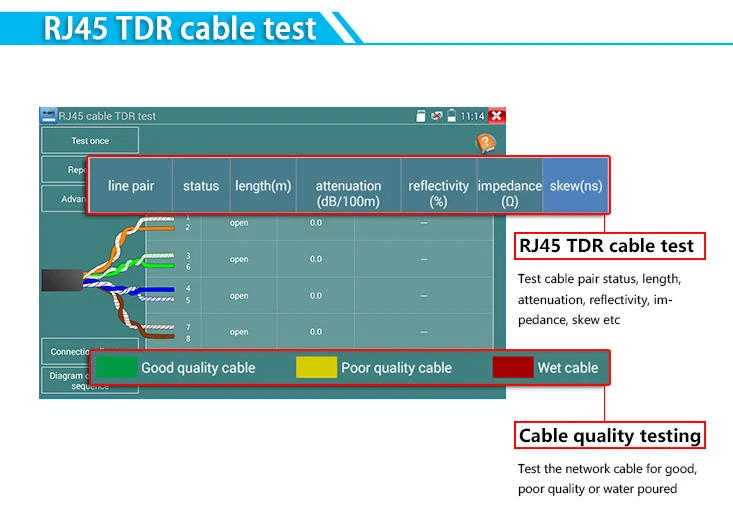

● RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc

● Cable tracer, search BNC cable, network cable and telephone cable from the mess cables *

Other Functions:

● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route

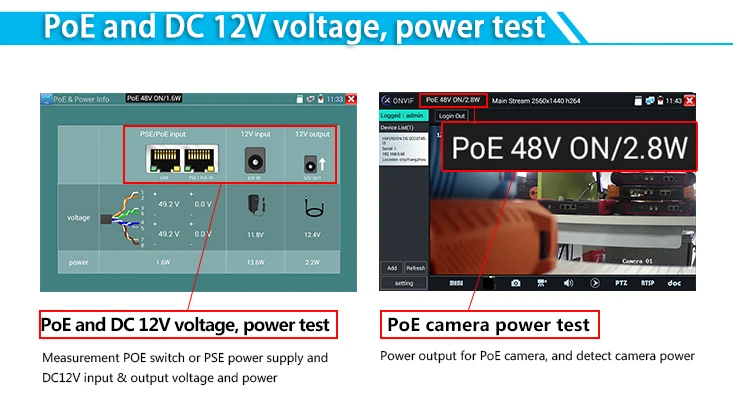

● POE & power information, DC12V& PoE power and voltage output /input measurement

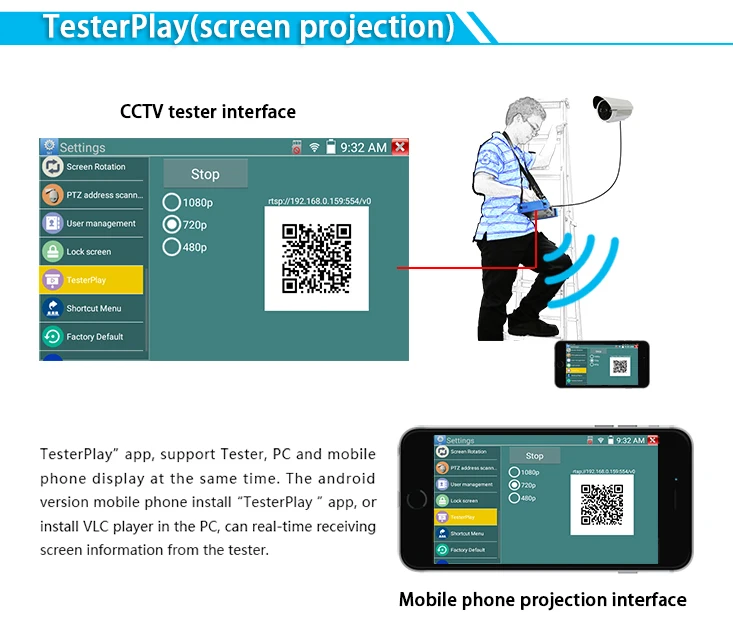

● Tester Play: Tester, android version mobile phone and PC display at the same time

● Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info etc

● Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters

● Customers self update software, you can install apps with android version

● Media player, 4K video files and MKV/MP4 media files play

● Quick office, quick office app (support excel, word ,ppt format ) doc. editable

— 8GB SD card including

● Display its genuine resolution of the IP camera images

● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools

● 7.4 V /3300mAh Lithium Ion Polymer Battery, after 3~4 hours charging, working time lasts 8 hours
● Chinese English, Korean, Russian, Italian, French, Polish, Spanish, Japanese ,German,Turkish,Serbian,Czech
